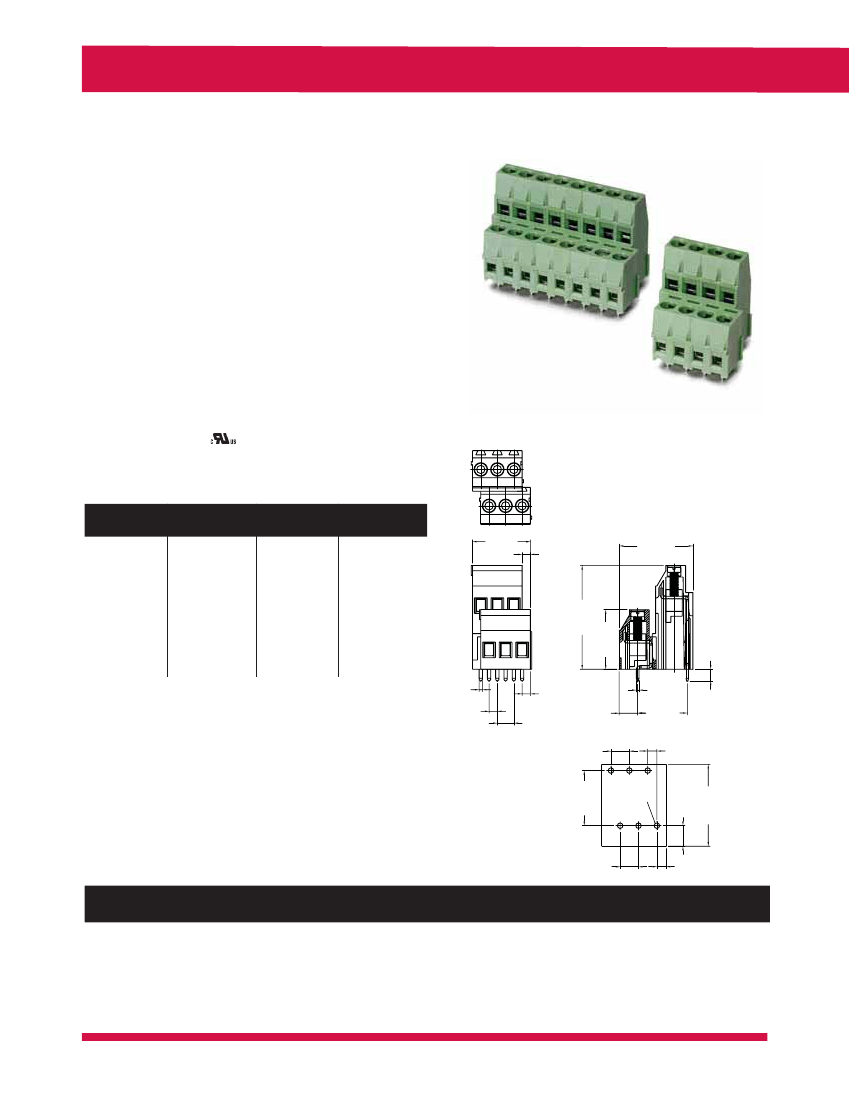

EuroMag Series PCB Mount Terminal Blocks
EM3905 Series
Euro-Mag Terminal Blocks
High Current; Two Tier; 5.00 Centers; Modular
SPECIFICATIONS
Rating:
28A, 250V
Center Spacing:
0.197” (5.00mm)
Wire Range:
#12-24 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Tin-Plated Brass
Cage Clamp:
Brass, Nickel-Plated
Screw Size:
M2.6 Nickel-Plated Steel
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating:
4.5 lb-in.
Recommended PCB Hole Diameters:
0.055" (1.40mm)
Construction:
Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
EM390508
EM390504
Dimensions - mm (in)
Poles
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
12.5
17.5
22.5
27.5
32.5
37.5
42.5
47.5
52.5
57.5
62.5
67.5
Poles
14
15
16
17
18
19
20
21
22
23
24
L (mm)
L+0.5
_
72.5
77.5
82.5
87.5
92.5
97.5
102.5
107.5
112.4
117.5
122.5
1+0.1
_
(0.039")
2.5+0.3
_
(0.098")
2.5+0.3
_
(0.098")
22.3+0.3
_
(0.878")
31.4+0.1
_
(1.237")
18+0.3
_
(0.709")
To convert to inches, divide by 25.4
2.5+0.3
_
(0.098")
5+0.1
_
(0.197")
5.6+0.3
_
(0.221")
5+0.1
_
(0.197")
15+0.3
_
(0.591")
0.8+0.1
_
(0.032")
15+0.3
_
(0.591")
2.5+0.2
_
(0.098")
5.6+0.3
_
(0.221")
PCB Hole Layout
ø1.5
(ø0.059")
5+0.1
_
(0.197")
2.5+0.3
_
(0.098")
Part Numbering System
Series
# of Poles
EM3 9 0 5
IIIIII II
02
to
24
22.3+0.3
_
(0.878")
3.6+0.3
_
(0.142")
