CD74ACT251M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD74ACT251M

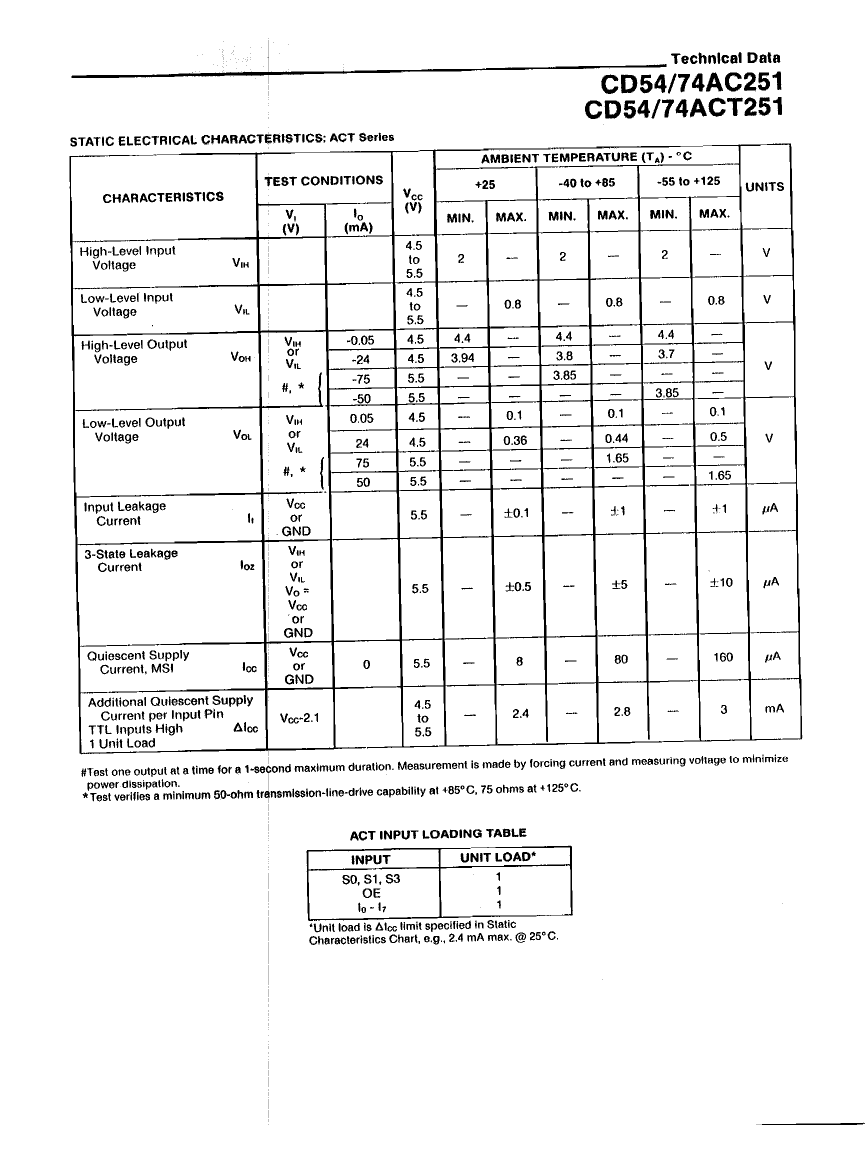

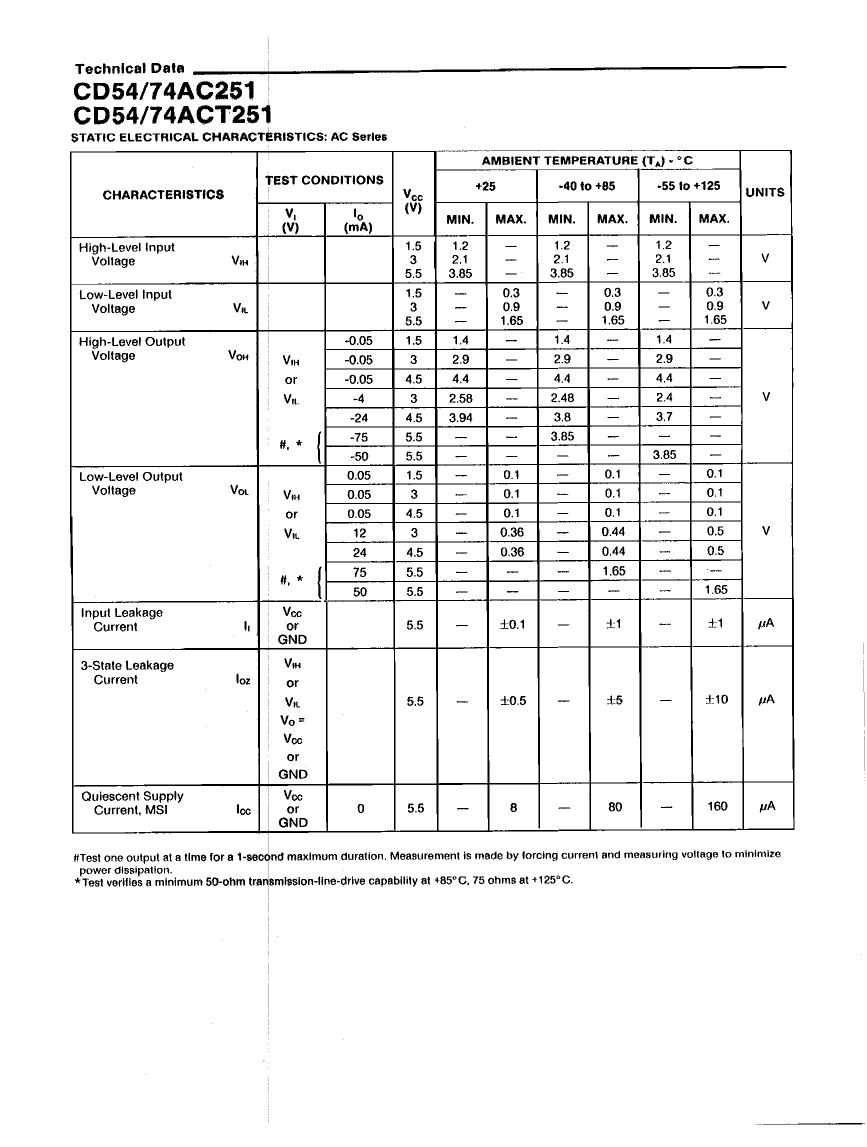

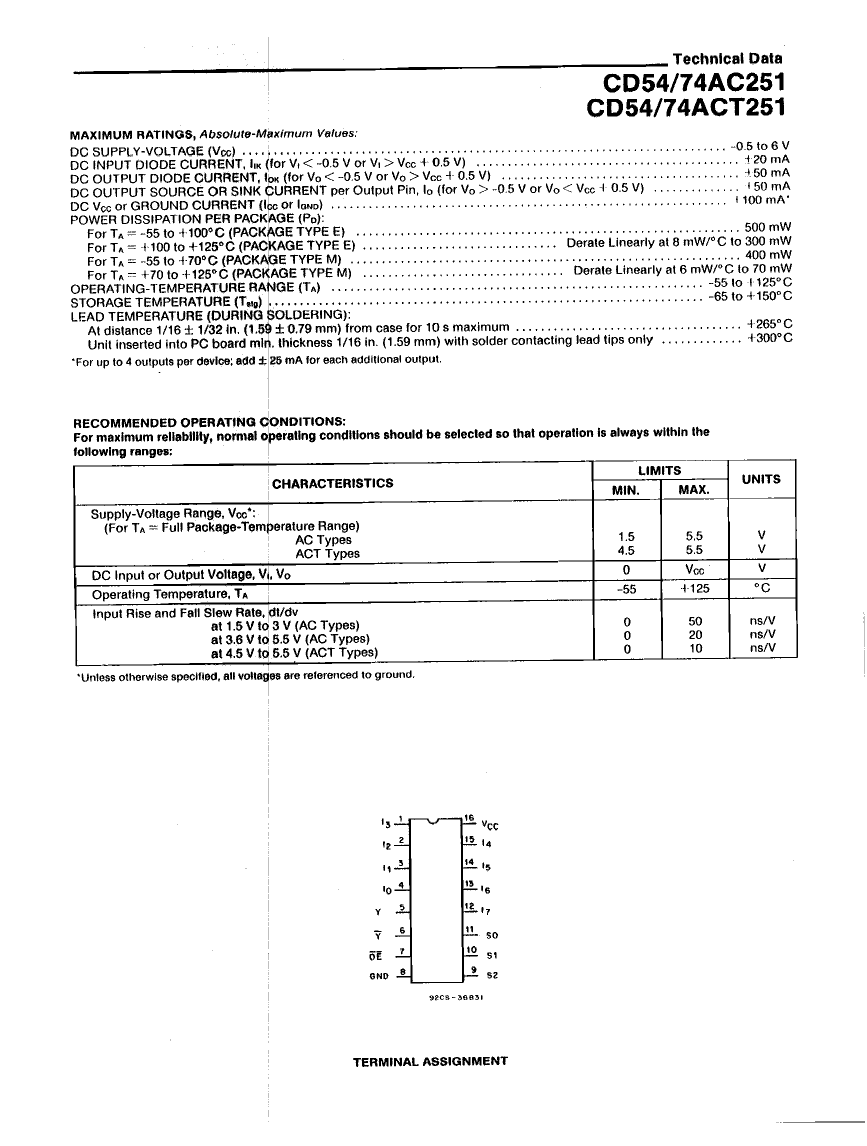

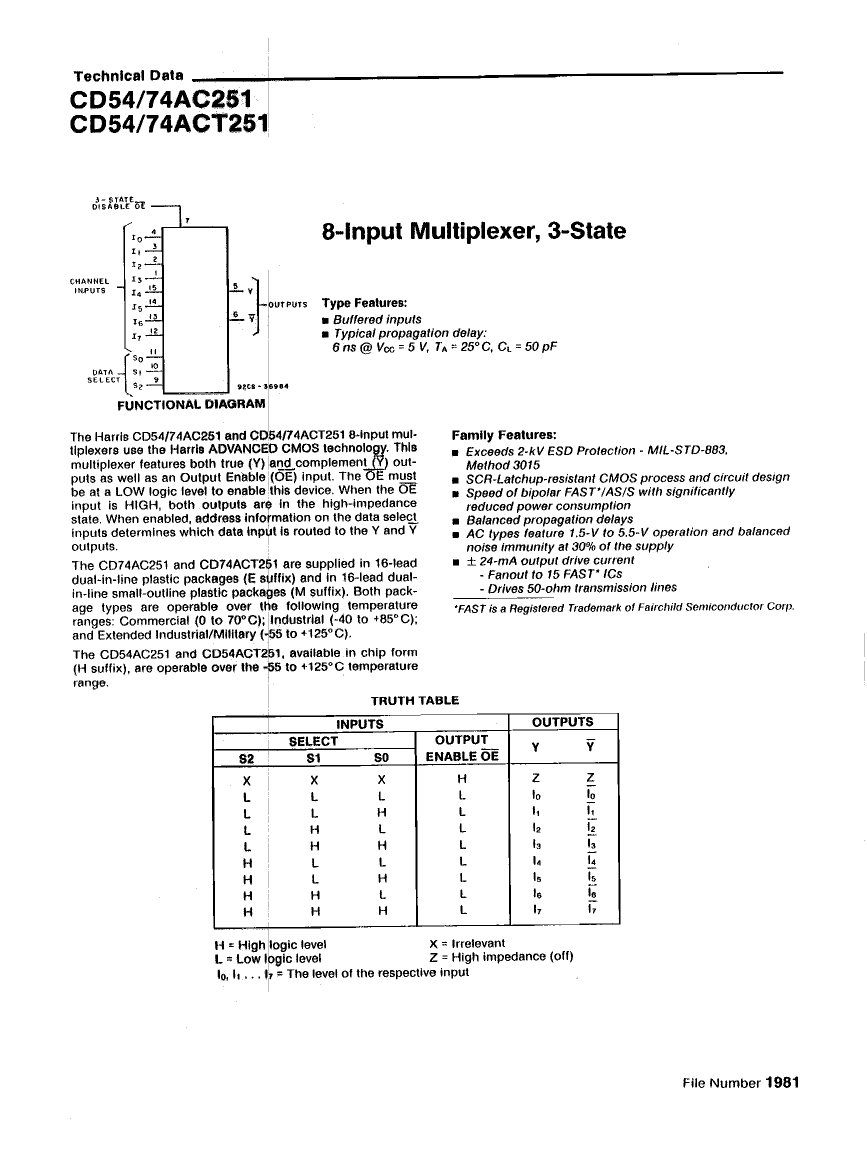

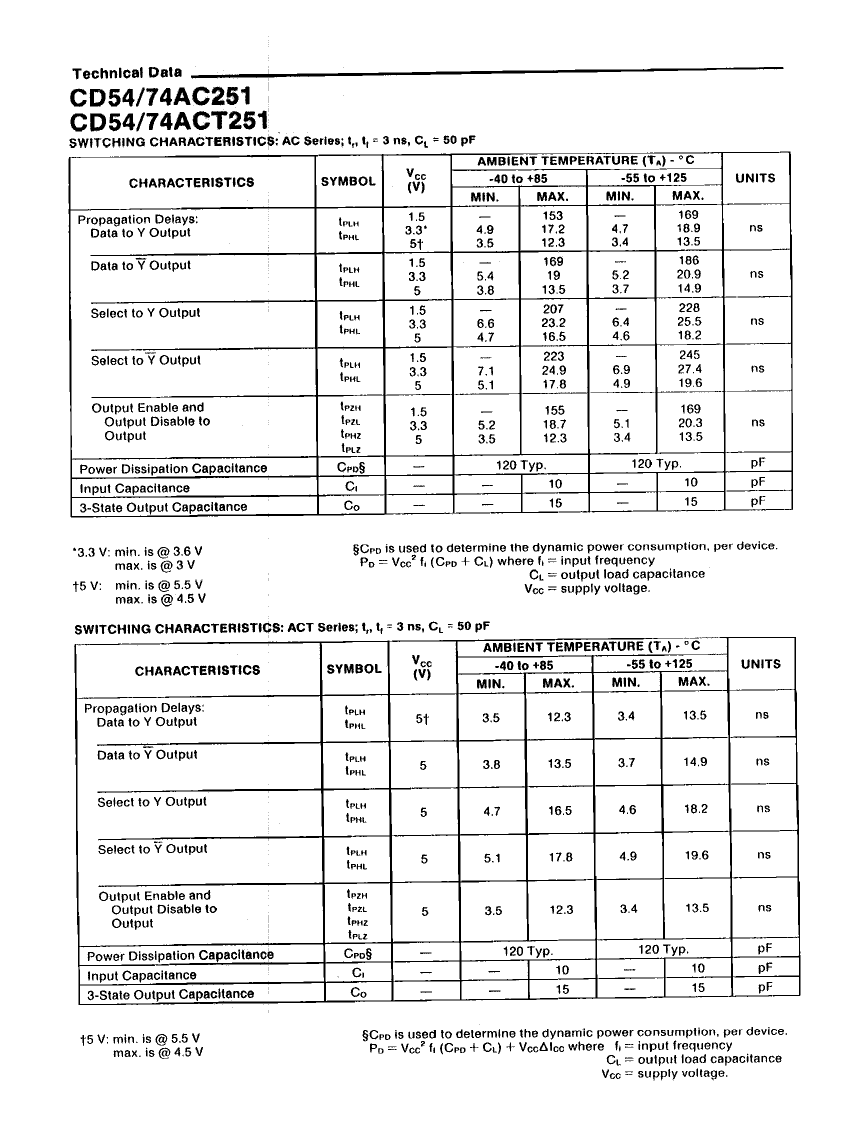

CD74ACT251M: DescriptionMultiplexer, ACT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDSO16; Categorylogic logic; File Size170KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CD74ACT251M Overview

Multiplexer, ACT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDSO16

CD74ACT251M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.024 A
Number of functions	1
Number of entries	8
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Prop。Delay @ Nom-Sup	14.9 ns
propagation delay (tpd)	18.2 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

CD74ACT251M Related Products

	CD74ACT251M	CD74ACT251M96	CD54ACT251H	CD74AC251M	CD74AC251M96	CD54AC251H
Description	Multiplexer, ACT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDSO16	Multiplexer, ACT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDSO16	Multiplexer, ACT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS	Multiplexer, AC Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDSO16	Multiplexer, AC Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDSO16	Multiplexer, AC Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	ACT	ACT	ACT	AC	AC	AC
JESD-30 code	R-PDSO-G16	R-PDSO-G16	X-XUUC-N16	R-PDSO-G16	R-PDSO-G16	X-XUUC-N16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	1	1	1	1	1	1
Number of entries	8	8	8	8	8	8
Output times	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED
encapsulated code	SOP	SOP	DIE	SOP	SOP	DIE
Package shape	RECTANGULAR	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	SMALL OUTLINE	SMALL OUTLINE	UNCASED CHIP	SMALL OUTLINE	SMALL OUTLINE	UNCASED CHIP
propagation delay (tpd)	18.2 ns	18.2 ns	18.2 ns	18.2 ns	18.2 ns	18.2 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	1.5 V	1.5 V	1.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING	NO LEAD	GULL WING	GULL WING	NO LEAD
Terminal location	DUAL	DUAL	UPPER	DUAL	DUAL	UPPER
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	-
Maker	Harris	Harris	-	Harris	Harris	Harris
package instruction	SOP, SOP16,.25	SOP, SOP16,.25	-	SOP, SOP16,.25	SOP, SOP16,.25	-
JESD-609 code	e0	e0	-	e0	e0	-
MaximumI(ol)	0.024 A	0.024 A	-	0.012 A	0.012 A	-
Encapsulate equivalent code	SOP16,.25	SOP16,.25	-	SOP16,.25	SOP16,.25	-
power supply	5 V	5 V	-	3.3/5 V	3.3/5 V	-
Prop。Delay @ Nom-Sup	14.9 ns	14.9 ns	-	20.9 ns	20.9 ns	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal pitch	1.27 mm	1.27 mm	-	1.27 mm	1.27 mm	-
