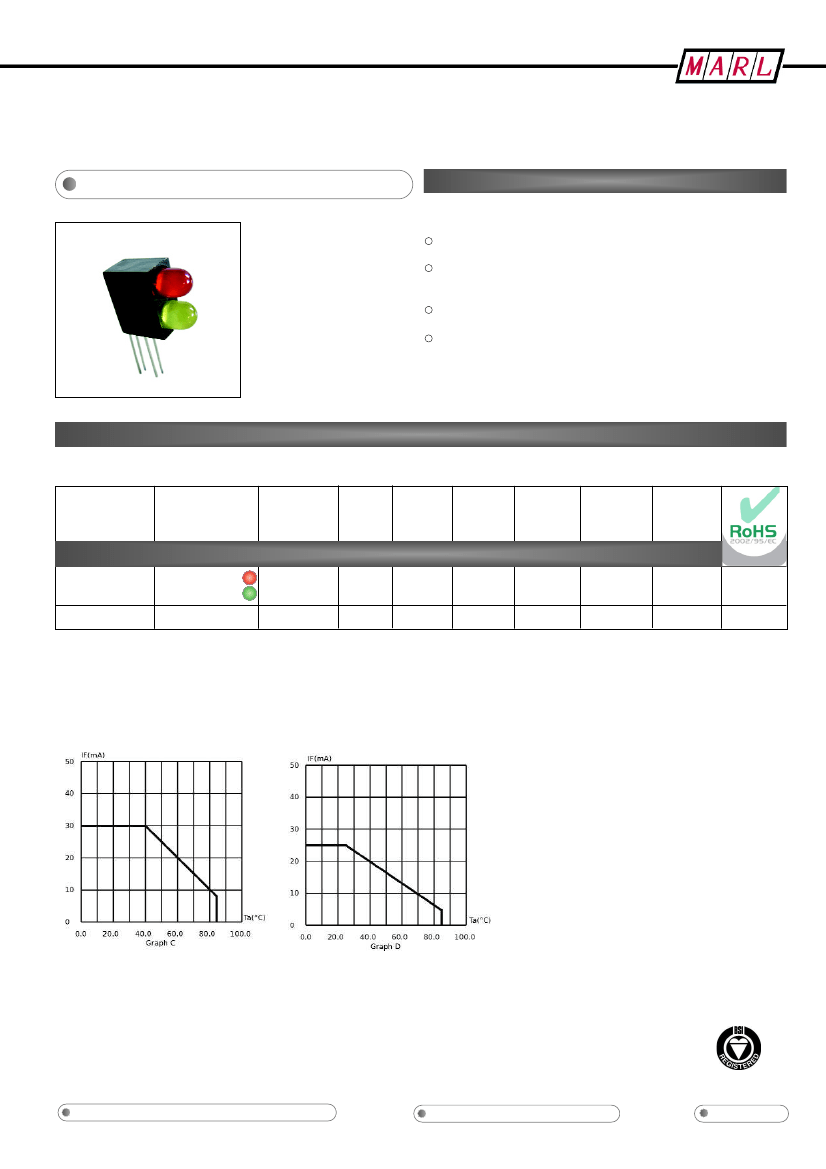

PCB MOUNTING LEDs - Ø 5mm
FEATURES
110 SERIES
PACK QUANTITY = 250 PIECES
Material conforms to UL94 V-O flammability ratings
Bi-colour and resistor models enhance potential for
saving assembly time and board space
Reverse polarity options available
Typically available ex stock
SPECIFICATIONS
Ordering Information & Typical T
echnical Characteristics (T
a = 25°C)
Mean Time Between Failure up to = 100,000 Hours.
PART NUMBER
COLOUR
Luminous intensity figures refer to the unmodified discrete LED.
VOLTAGE
DC
Vopr
CURRENT
DC
lopr
LUMINOUS
INTENSITY
lv@20mA
WAVE
λp
OPERATING
TEMP
T
opr
STORAGE
TEMP
T
stg
LENS
LENGTH
STANDARD INTENSITY
01-110-000-04-50
Red Over Green
White Diffused
2.0/2.2*
20
60/40
627/565
-40 ~ +85^
-40 ~ +85
Yes
UNITS
* = Voltage DC for 20mA product is Vf@20mA, not Vopr
Vdc
mA
mcd
nm
0
C
0
C
^ = Products must be derated according to the derating information below.
01-110-000-04-50 consists of 505 (red) and 514 (green).
Each derating graph refers to specific LEDs.
505
514
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
How to Order:
•
Fax: +44 (0)1229 585155
BS EN ISO 9001:2000
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
Approved Manufacturer
© MARL INTERNATIONAL LTD 2008 : DS 047/08
Issue 1
SAMPLES AVAILABLE
Page 1 of
2
110 Series
Anode

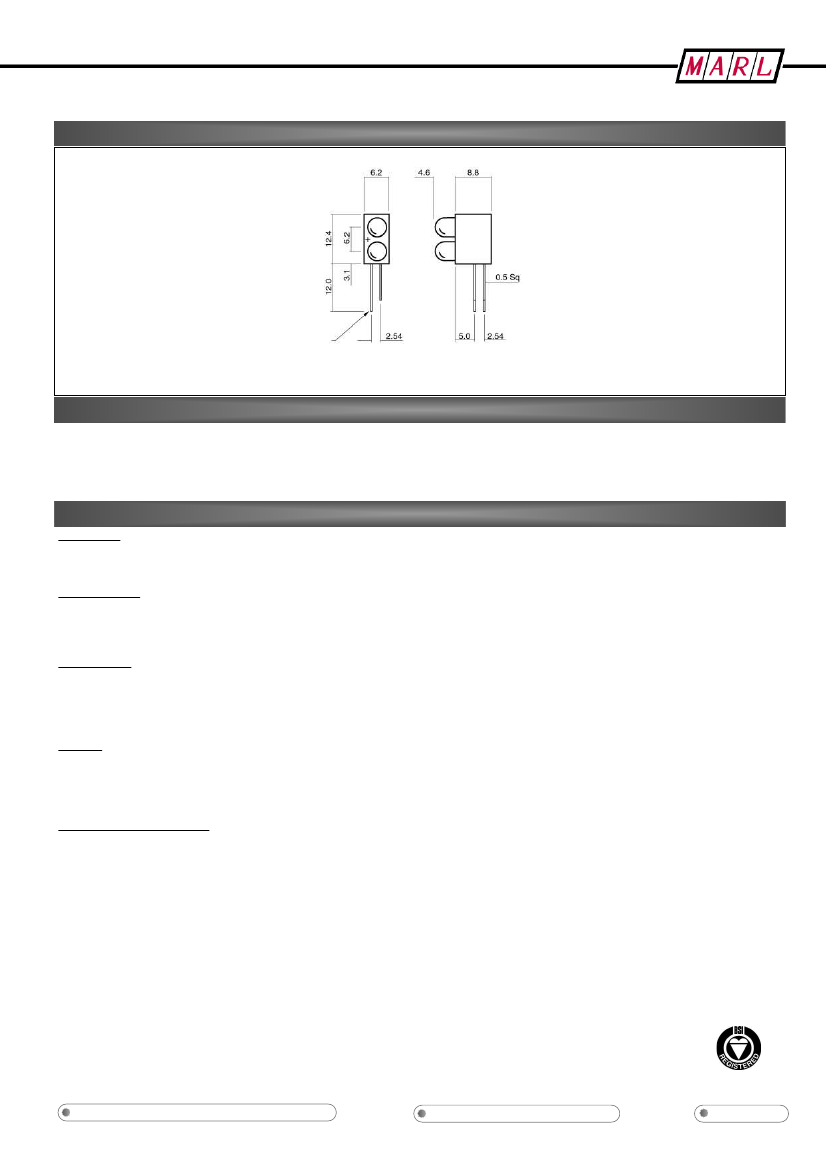

Dimensions in mm (Typical)
Not to scale
Housing Material
Polycarbonate
This material offers UL94 V-0 flame retardancy* and a high impact strength. This material has a melt point of 290-340°C and is suitable for use in
the majority of automatic soldering processes.
*Material test thickness 1.6mm
LEDs
LED Polarity
Anode identification is shown in the dimensional diagram. The long lead of a non-cropped unit can also be used to help identify the anode. For
the 2 pin Bi-colour units the standard colour configuration is red anode to the ‘+’ sign.
Reverse Polarity
This is offered on all PCB units, with the exception of the 125 series, if requested to help overcome the problem of systems with reverse polarity
reverse colour configuration.
Lead Cropping
connections. Multiple units can also be supplied in reverse polarity but not with mixed polarities. The 2 pin and 3 pin Bi-colours can be supplied in
Should lead cropping be required Marl offer two standard lengths, either by request or by adding one of the following codes to the end of the part
number:-
-24 = 3mm
-26 = 5mm (E.g
01-110-000-04-50-26)
Other non-standard lead lengths are available on request.
Bi-colour
2 Pin Operation
T
o achieve the second colour for a 2 pin Bi-colour unit the supply must be reversed, standard colour configuration for these units is red anode to
the ‘+’ sign.
Electro-static Discharge (ESD)
Build up of electrostatic discharge occurs in many situations involving people moving and handling products. The range of possible situations is
very diverse but voltage levels as high as several thousand volts can and do arise in many individual situations. When an operator charged up to
these levels handles a ‘static sensitive device’, there is a very probable likelihood that the device will be irreversibly damaged. It is essential that
precautions are taken at all stages during manufacture and assembly of these products. Although LEDs were never considered to be static
sensitive devices, changes in manufacturing technology and materials used to produce higher intensity products over a large range of the
and despatch. We recommend all users of LED based products follow the guidelines of BS 100015.
Note:
All luminous intensity figures refer to the unmodified discrete LED.
wavelength spectrum have changed this. Marl has an approved system of ESD control from goods in, through production and into final packing
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
How to Order:
•
Fax: +44 (0)1229 585155
BS EN ISO 9001:2000
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
Approved Manufacturer
© MARL INTERNATIONAL LTD 2008 : DS 047/08
Issue 1
SAMPLES AVAILABLE
Page 2 of
2
