231-001P19-32XA datasheet, PDF

Datasheet> All Categories > The connector> The connector> 231-001P19-32XA

231-001P19-32XA: DescriptionMIL Series Connector, 32 Contact(s), Steel, Male, Receptacle; CategoryThe connector The connector; File Size306KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

231-001P19-32XA Overview

MIL Series Connector, 32 Contact(s), Steel, Male, Receptacle

231-001P19-32XA Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	STANDARD:MIL-DTL-38999, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	231-001
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell surface	NICKEL
Shell material	STEEL
Housing size	19
Total number of contacts	32
Base Number Matches	1

Preview

Download Datasheet

View All

MIL-DTL-38999

HOW TO ORDER:

EXAMPLE:

BASIC NO

MAT'L & FINISH

FT = CARBON STEEL,FUSED TIN

P = CRES, NICKEL FINISH

Z1 = CRES, PASSIVATED

SHELL SIZE

INSERT ARRANGEMENT 2

231-001

POLARIZATION

A,B,C,D (N = NORMAL)

MARKING LOCATION

(EITHER LOCATION)

SOCKET FACE

PIN FACE

www.glenair.com

231-001

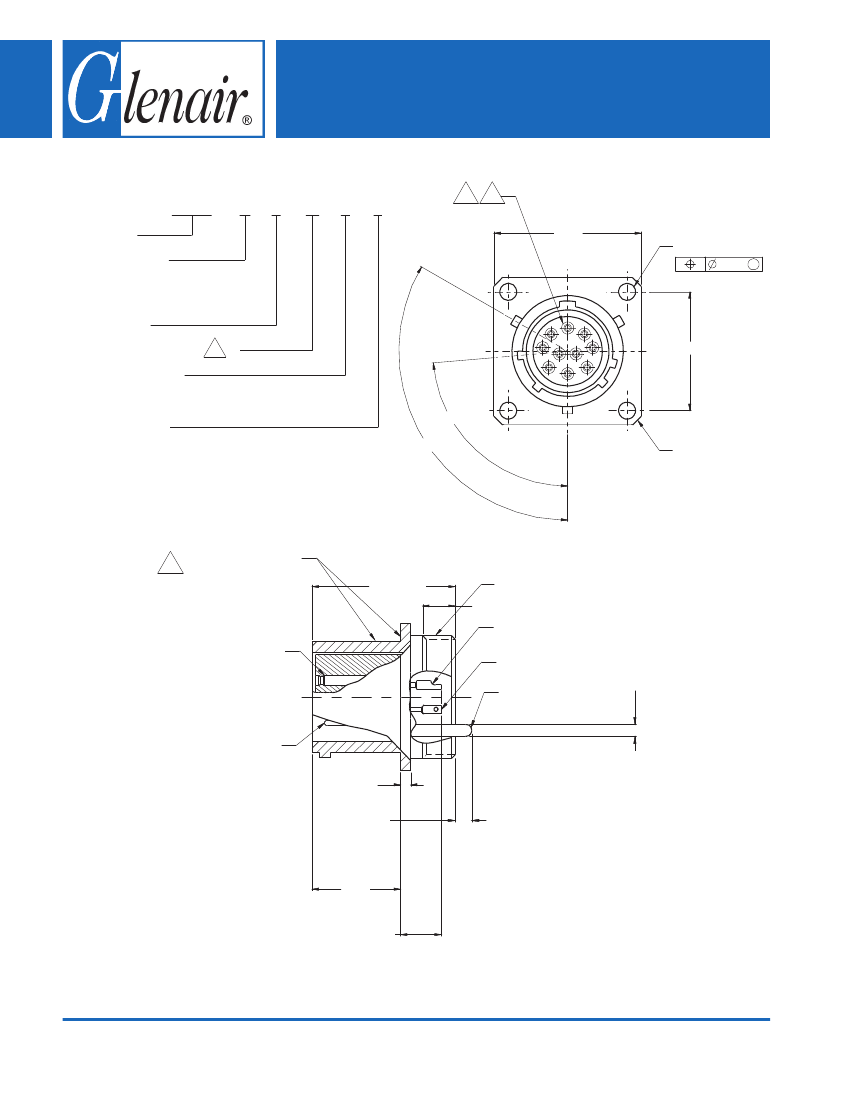

Hermetic Receptacle, Flange Mount

231-001

MIL-DTL-38999 Series I

CONNECTOR, HERMETIC,

WALL MOUNTING FLANGE

RECEPTACLE, SERIES I

BSQ

4X ø C HOLES

.005 M

2X A BSC

CONTACT STYLE:

P = PIN, SOLDER CUP S = SOCKET, SOLDER CUP

X = PIN, EYELET

Z = SOCKET, EYELET

C = PIN, FEEDTHRU D = SOCKET, FEEDTHRU

85° BSC

2X 120° BSC

4X CHAMFERED

OR ROUND

1.093 MAX

DTHREAD

.250 MIN FULL THD

SOLDER CUP

CONTACT (P & S)

EYELET

CONTACT (X & Z)

FEED THROUGH

CONTACT (C & D)

L (SEE TABLE IV)

.093

.062

.175/.125

.690

.659

.312 MAX (P & X)

.344 MAX (S & Z)

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

B-22
