10141972-0101P01TL datasheet, PDF

10141972-0101P01TL: DescriptionCard Edge Connector,; CategoryThe connector The connector; File Size820KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

10141972-0101P01TL Overview

Card Edge Connector,

Parameter Name	Attribute value
ECCN code	EAR99
Is Samacsys	N
YTEOL	7.3
Objectid	7128028434
Reach Compliance Code	Compliant
Number of connectors	ONE
Options	GENERAL PURPOSE
Termination type	SOLDER
Contact style	BELLOWED TYPE
Plug contact pitch	0.032 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Board mount options	HOLE .086-.098
Mixed contacts	NO
PCB contact row spacing	1.6 mm
contact mode	RECTANGULAR
Insulator color	BLACK
PCB contact pattern	STAGGERED
Plating thickness	15u inch
body width	0.256 inch
subject depth	0.57 inch
body length	5.59 inch
Terminal length	0.102 inch
Connector type	CARD EDGE CONNECTOR
Durability	25 Cycles
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	4
Rated current (signal)	0.75 A
Terminal pitch	0.85 mm
Total number of contacts	288
Contact point gender	FEMALE
Contact resistance	10 mΩ
insulator material	HIGH TEMPERATURE THERMOPLASTIC
Number of rows loaded	2
Filter function	NO
maximum insertion force	75 N
Insulation resistance	1000000 Ω
Evacuation force-minimum value	13.3 N
Dielectric withstand voltage	707VAC V
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Guideline	UL
UL Flammability Code	94V-0

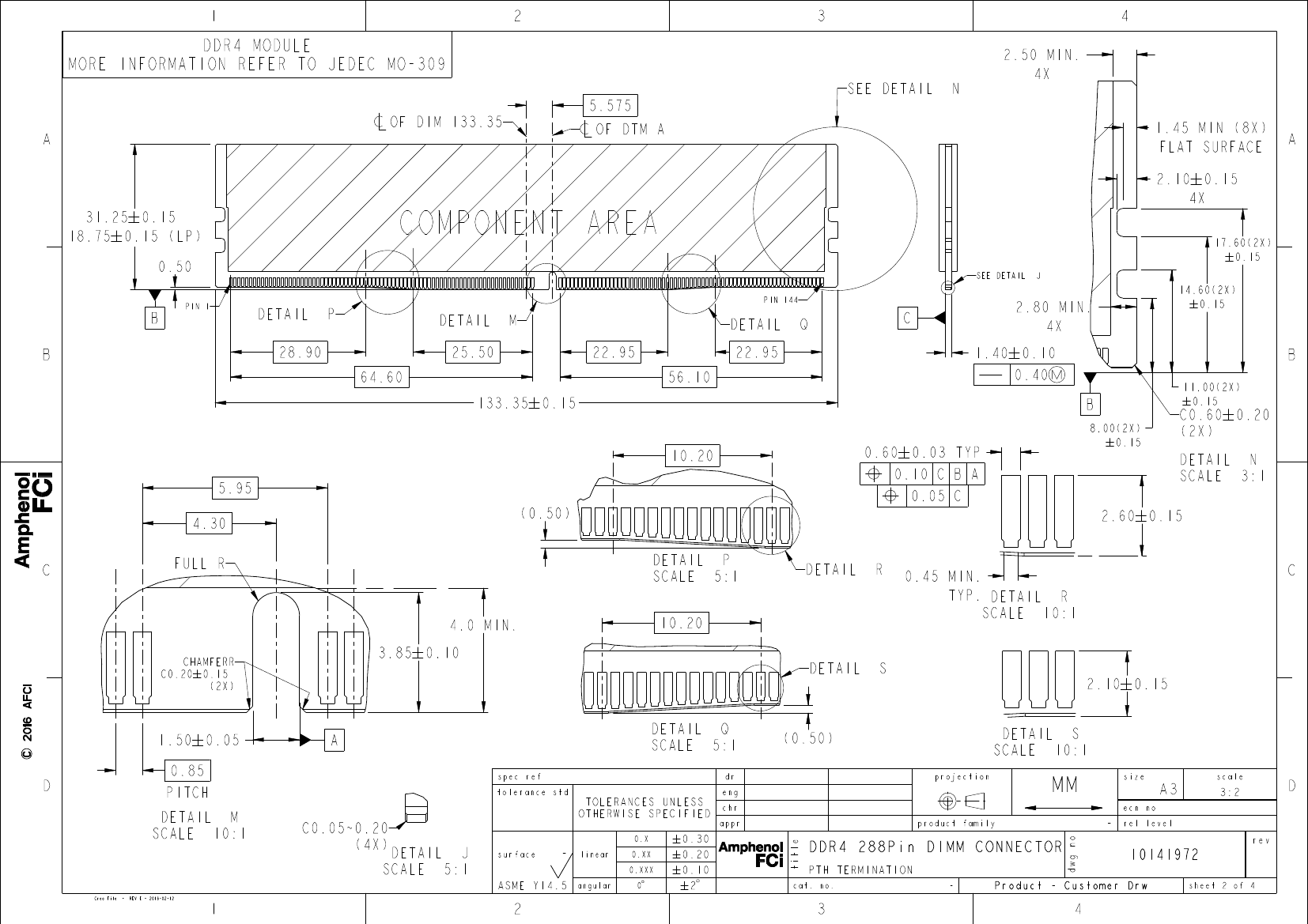

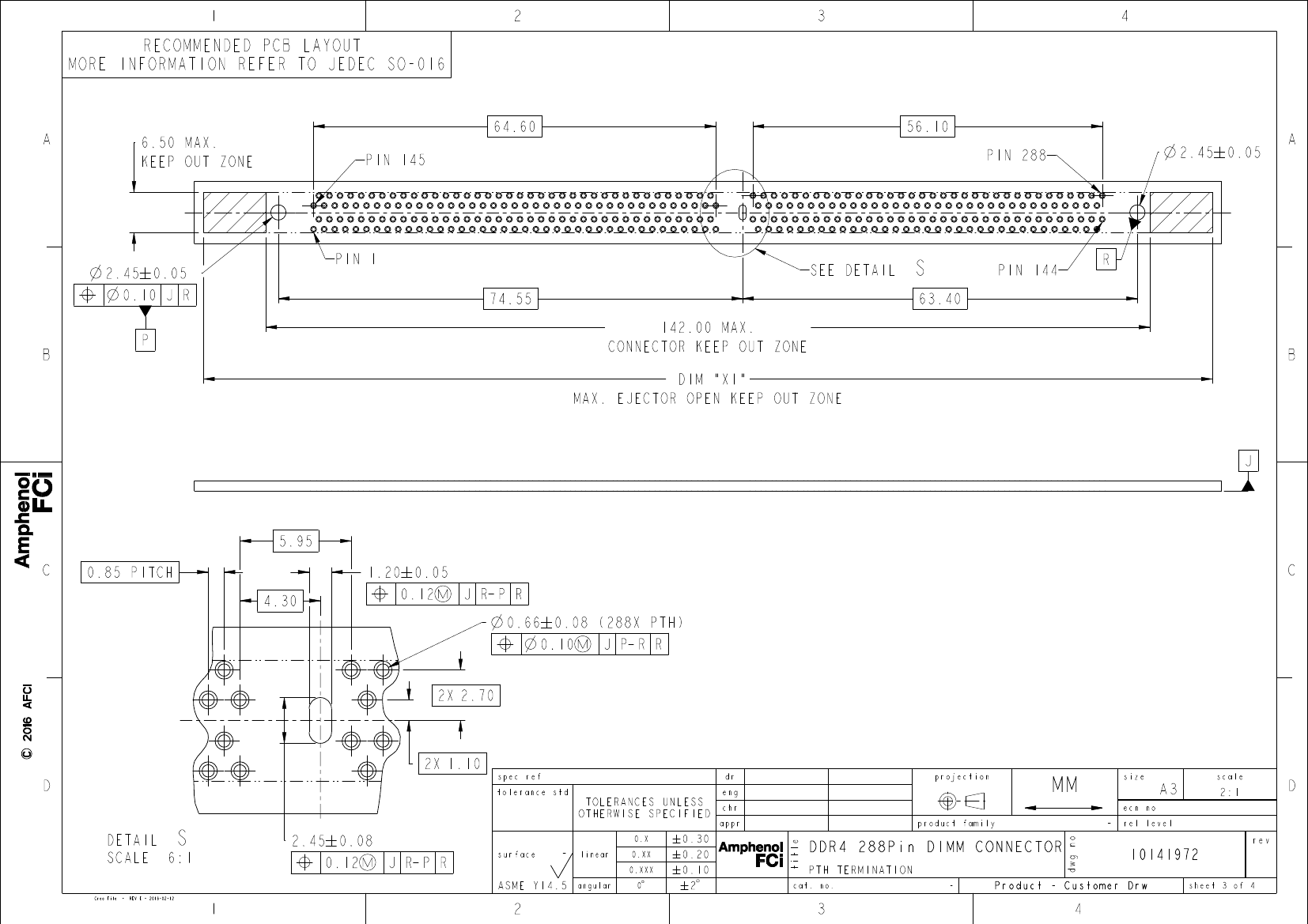

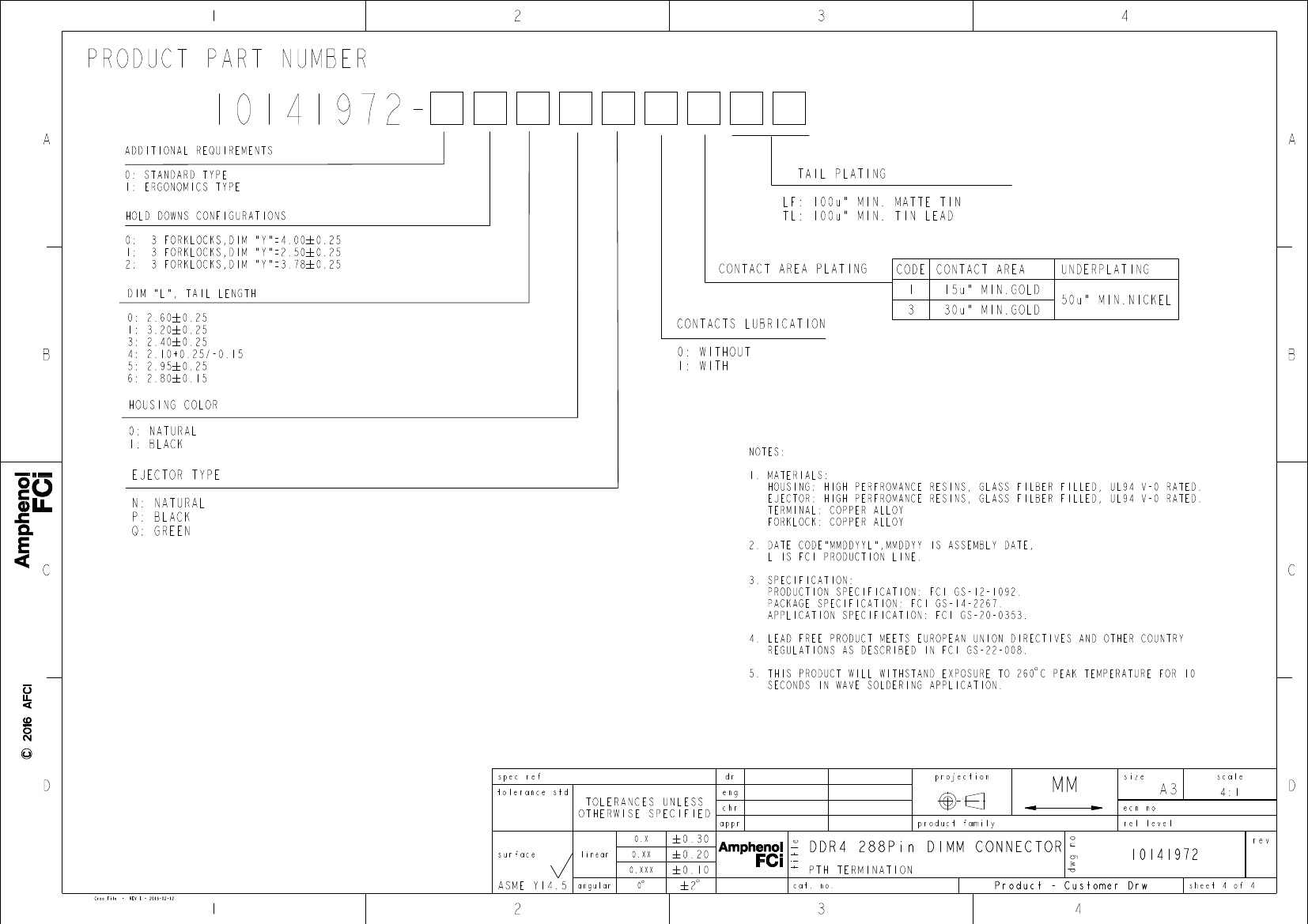

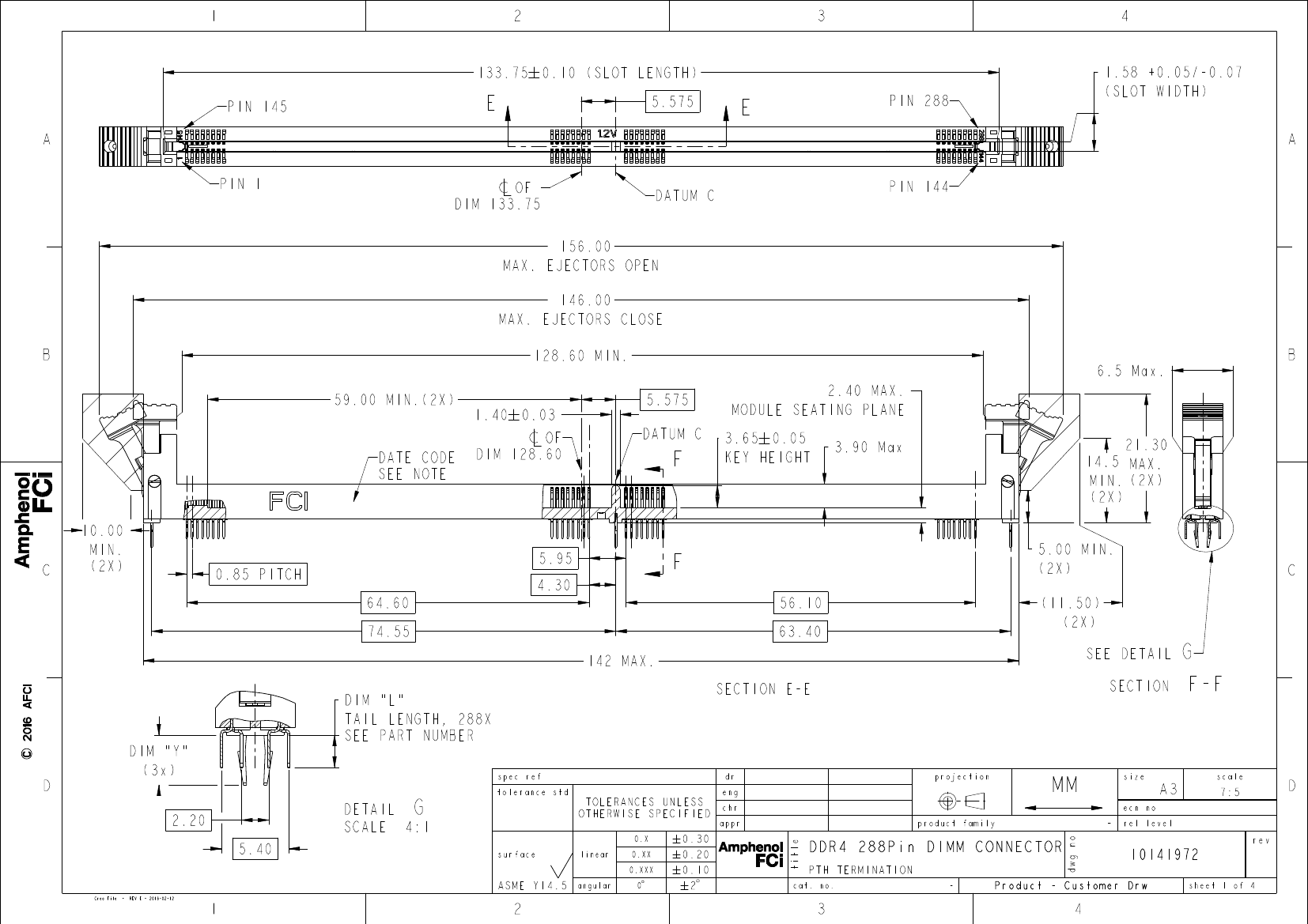

Nickor Zuo

Jeny Ren

Nickor Zuo

2016/12/13

2017/01/04

2017/01/12

ELX-DG-25823-1

Released

PDS: Rev :B

STATUS:Released

Printed: Jan 12, 2017
