Mill-Max Introduces Triple Row Header Strips and
Triple Row Solder Tail Socket Strips

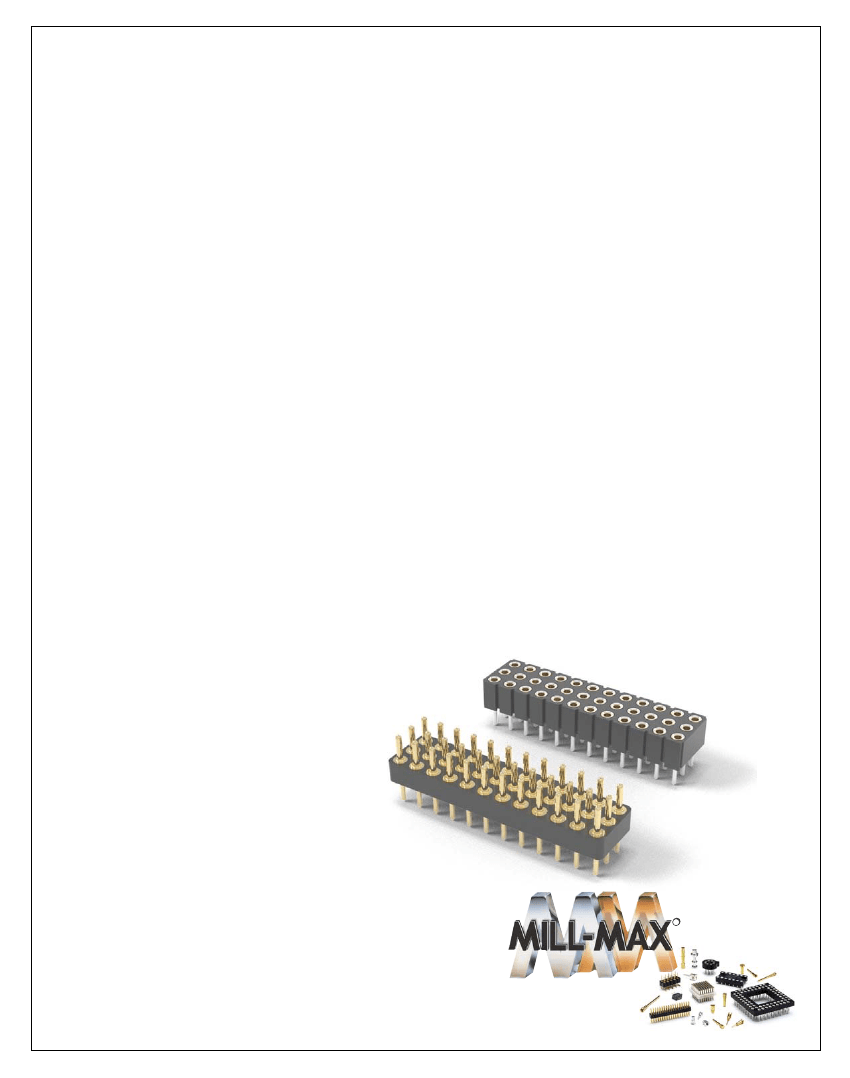

The new Mill-Max 804 and 805 series interconnects are ideal for high pin count I/O and board-
to-board applications. The triple row pin field allows for signal connections to be more densely
packaged. Also, placing and soldering one connector rather than three SIP sockets or a single
and double row combination increases assembly efficiency and improves positional accuracy.
This triple row package, on .100” (2.54 mm) grid, is available from 9 to 96 position configura-
tions (ordered in increments of 3.)
The 804 & 805 series connectors are RoHS compliant featuring high temperature thermoplastic
insulators compatible with lead free soldering temperature requirements. The receptacle shells
of the 805 series socket pins are plated with 200u” pure matte tin. Hard gold plating, on both
the 804 series header pins (10u”) and the 805 series receptacle internal contacts (30u,”) provides
optimum conductivity and effective wear resistance.
All Mill-Max pin headers and receptacle sockets feature high-speed screw-machined pins and
receptacles manufactured to precision tolerances. Inside each 805 series receptacle is a preci-
sion stamped beryllium copper Mill-Max #47 contact clip with a pin acceptance range of .025-
.037” (.64 mm - .94 mm) diameter or a .025” (.64 mm) square post and a current rating of 4.5
amps.
Selectively loaded pin configurations can be quoted to customer specification.
For more information, please
visit www.mill-max.com/PR619.
(7/13 -- PR619)
R
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771-0300
516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
Maximum Interconnect Solutions
INTERCONNECTS

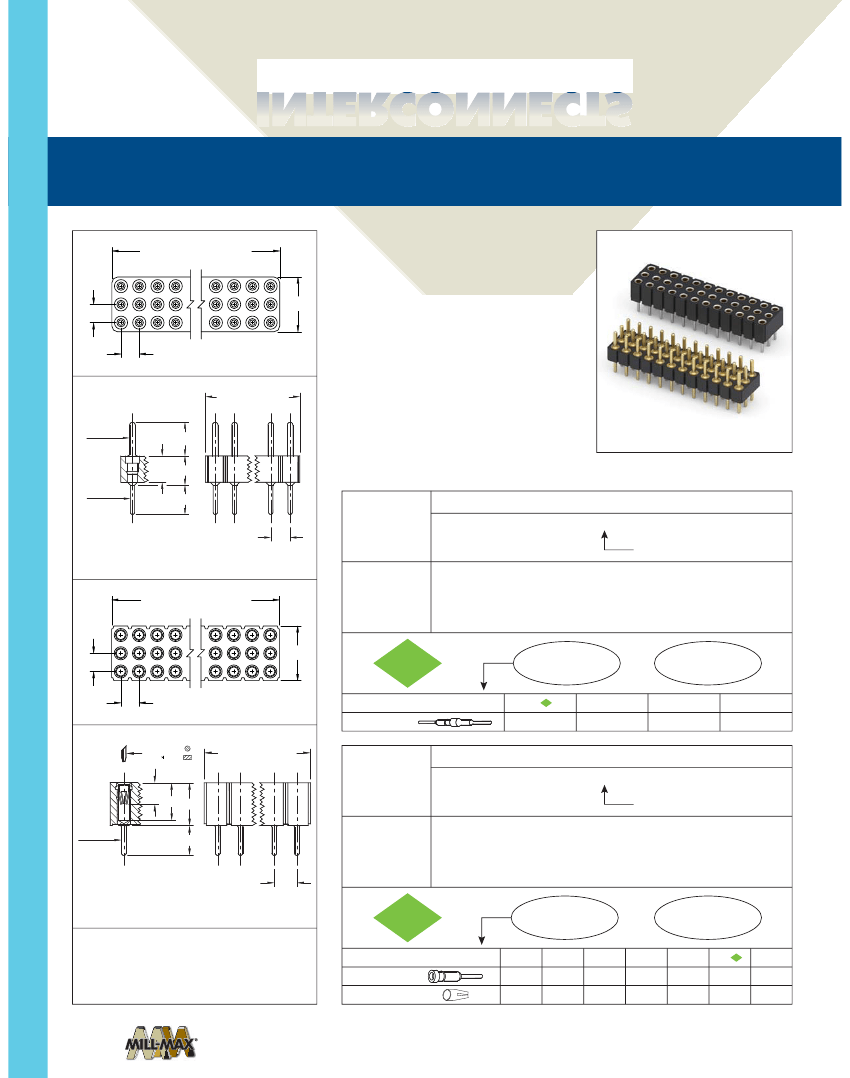

SERIES 804 & 805 • .100” GRID (.030” DIA. PINS),
HEADERS AND SOCKETS • TRIPLE ROW
•
Series 804 triple row .100” grid headers uses
[Number
of Pins/3] x .100"
MM #5016 pins. See page 215 for details
•
Series 805 triple row .100” grid sockets uses
.100
(TYP)
.300
MM #1303 pins. See page 180 for details
•
Series 805 triple row .100” grid sockets uses
.100
(TYP)
Hi-Rel, 6-finger BeCu #47 contact rated at
4.5 amps. See page 256 for details
[Number
of Pins/3]
X .100
•
Insulators are high temperature thermoplastic,
suitable for all soldering operations
.030 DIA.
.142
.110
.024 DIA.
.125
ORDERING INFORMATION
Series 804...002
.100
.133
Straight Pin Header
804-10-0_ _-10-002000
FIG. 1
FIG. 1
[Number
of Pins/3] x .100"
Specify number of pins
09-96
.100
(TYP)
.300
RoHS - 2
2011/65/EU
XX=Plating Code
See Below
10
10 ” Au
For
Electrical, Mechanical
& Enviromental Data,
See page 264
.100
(TYP)
SPECIFY PLATING CODE XX=
Pin Plating
.025-.037
.025 .025
[Number
of Pins/3]
X .100
Series 805...012
Straight Pin Socket
805-43-0_ _-10-012000
.088
FIG. 2
.146 .165
.125
Specify number of pins
09-96
.022 DIA.
PAGE 60 | INTERCONNECTS
.100
FIG. 2
RoHS - 2
2011/65/EU
XX=Plating Code
See Below
For
Electrical, Mechanical
& Enviromental Data,
See page 264
SPECIFY PLATING CODE XX=
Sleeve (Pin)
Contact (Clip)
43
200 ” Sn
30 ” Au
