Optoway
SPS-3380-CXX0
3.3V / CWDM / 155 Mbps LC SFP SINGLE-MODE TRANSCEIVER
FEATURES
l
Hot-Pluggable SFP Footprint LC Optical Transceiver
l
Small Form-Factor Pluggable (SFP) MSA compatible
l
Compliant with Long-Reach SONET OC-3 / SDH
STM-1(L-1.2)
l
18 Wavelength (λ): 1270 nm to 1610 nm CWDM DFB
LD Transmitter
l
29 dB Power Budget at Least
l
AC/AC Coupling according to MSA
l
Single +3.3 V Power Supply
l
0 to 70
o
C Operation
l
Class 1 Laser International Safety Standard IEC-60825
Compliant
SPS-3380-CXX0
******************************************************************************************************************************************************************************
****************************************************************************************************************************************************************************
DESCRIPTION
The SPS-3380-CXX0 series single mode transceivers is
small form factor pluggable module for bi-directional serial
optical data communications such as SONET OC-3 / SDH
STM-1 and Fast Ethernet. It is with the SFP 20-pin
connector to allow hot plug capability. This module is
designed for single mode fiber and operates at a nominal
wavelength of CWDM. There are eighteen center
wavelengths available from 1270 nm to 1610 nm, with each
step 20 nm. A guaranteed minimum optical link budget of
29 dB is offered The transmitter section uses a multiple
quantum well CWDM DFB laser and is a class 1 laser
compliant according to International Safety Standard
IEC-60825. The receiver section uses an integrated InGaAs
detector preamplifier (IDP) mounted in an optical header
and a limiting post-amplifier IC.
APPLICATIONS
l
ATM Switches and Routers
l
SONET / SDH Switch Infrastructure
l
Fast Ethernet Applications
LASER SAFETY
This single mode transceiver is a Class 1 laser product. It
complies with IEC-60825 and FDA 21 CFR 1040.10 and
1040.11. The transceiver must be operated within the
specified temperature and voltage limits. The optical ports
of the module shall be terminated with an optical connector
or with a dust plug.
ORDER INFORMATION
P/No.
Bit Rate
(Mb/s)
155
o
SONET
/SDH
LR-2
Power
Wavelength
Budget (dB)
(nm)
> 29
CWDM*
Package
SPS-3380-CXX0
LC SFP
Case
Temp.
(
o
C)
0 to 70
TX Power
(dBm)
0 to -5
RX Sens.
(dBm)
-34
CWDM* Wavelength (0 to 70 C)
Central
Min.
Typ.
Wavelength
(nm)
(nm)
-C270
-C290
-C310
-C330
-C350
-C370
-C390
-C410
-C430
1264.5
1284.5
1304.5
1324.5
1344.5
1364.5
1384.5
1404.5
1424.5
1270
1290
1310
1330
1350
1370
1390
1410
1430
Max.
(nm)
1277.5
1297.5
1317.5
1337.5
1357.5
1377.5
1397.5
1417.5
1437.5
Central
Wavelength
-C450
-C470
-C490
-C510
-C530
-C550
-C570
-C590
-C610
Min.
(nm)
1444.5
1464.5
1484.5
1504.5
1524.5
1544.5
1564.5
1584.5
1604.5
Typ.
(nm)
1450
1470
1490
1510
1530
1550
1570
1590
1610
Max.
(nm)
1457.5
1477.5
1497.5
1517.5
1537.5
1557.5
1577.5
1597.5
1617.5
CWDM*: 18 Wavelengths from 1270 nm to 1610 nm, each step 20 nm.
******************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
5/1/2004 V1.1
Optoway
Absolute Maximum Ratings
Parameter
Storage Temperature
Operating Case Temperature
Power Supply Voltage
Symbol
Tstg
Topr
Vcc
Min
-40
0
-0.5
Max
85
70
3.6
Units
o
C
o
C
V
SPS-3380-CXX0
Notes
Air flow 1m/sec
***************************************************************************************************************************************************************************
Recommended Operating Conditions
Parameter
Power Supply Voltage
Case Operating Temperature
Power Supply Current
Data Rate
Symbol
Vcc
Topr
I
CC (TX+RX)
Min
3.1
0
Typ
3.3
200
155
Max
3.5
70
300
200
Units / Notes
V
o
C / air flow 1m/sec
mA
Mb/s
Transmitter Specifications (0
o
C < Topr < 70
o
C, 3.1V < Vcc < 3.5V)
Parameter
Symbol
Min
Typ
Max
Units
Notes
Optical
Optical Transmit Power
Po
-5
---
0
dBm
1
λc
–5.5
λc
λc
+7.5
Output Center Wavelength
nm
2
λ
Output Spectrum Width
---
---
1
nm
-20 dB Width
∆λ
Extinction Ratio
E
R
10
---
---
dB
Output Eye
Compliant with Bellcore TR-NWT-000253 and ITU recommendation G.957
Optical Rise Time
t
r
2
ns
3
Optical Fall Time
t
f
2
ns
3
Relative Intensity Noise
RIN
-120
dB/Hz
Electrical
Data Input Current
–
Low
I
IL
-350
µA
Data Input Current
–
High
I
IH
350
µA
Differential Input Voltage
V
IH
- V
IL
0.5
2.4
V
Peak-to-Peak
TX Disable Input Voltage
–
Low
T
DIS, L
0
0.5
V
4
TX Disable Input Voltage
–
High
T
DIS, H
2.0
Vcc
V
4
TX Disable Assert Time
T
ASSERT
10
µs
1
ms
TX Disable Deassert Time
T
DEASSERT
TX Fault Output Voltage -- Low
T
FaultL
0
0.5
V
5
TX Fault Output Voltage -- High
T
FaultH
2.0
Vcc+0.3
V
5
1. Output power is power coupled into a 9/125
µm
single mode fiber.
2. ITU-T G.694.2 CWDM wavelength from 1270 nm to 1610 nm, each step 20 nm.
3. 10 % to 90% Values.
4. There is an internal 4.7K to 10K ohm pull-up resistor to VccTX.
5. Open collector compatible, 4.7K to 10K ohm pull-up to Vcc (Host Supply Voltage).
****************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
5/1/2004 V1.1
Optoway
Receiver Specifications (0
o
C < Topr < 70
o
C, 3.1V < Vcc < 3.5V)
Parameter
Optical
Sensitivity
Maximum Input Power
Signal Detect -- Asserted
Signal Detect -- Deasserted
Signal detect -- Hysteresis
Wavelength of Operation
Electrical
Differential Output Voltage
Output LOS Voltage -- Low
Output LOS Voltage -- High
Symbol
Sens
Pin
Pa
Pd
Min
Typ
Max
-34
-3
---
-47
1.0
1100
0.6
0
2.0
-34
---
1620
2.0
0.5
Vcc+0.3
Units
dBm
dBm
dBm
dBm
dB
nm
V
V
V
SPS-3380-CXX0
Notes
1
1
Transition: low to high
Transition: high to low
***************************************************************************************************************************************************************************
---
---
---
V
OH
–
V
OL
V
OL
V
OH
2
2
1. Measured at 2
23
-1 PRBS at BER 1E-10.
2. Open collector compatible, 4.7K to 10K ohm pull-up to Vcc (Host Supply Voltage).
RECOMMENDED CIRCUIT SCHEMATIC
Vcc 3.3V
Tx Fault
10K
Tx Disable (LVTTL)
Vcc3.3V
depend on customer's PHY
TD-
Z=50R
VeeT
Txfault
TX
Txdisable
Mod_def(2)
Mod_def(1)
Mod_def(0)
Rate select
RX
Los
VeeR
VeeR
1
2
3
4
5
6
7
8
9
10
VeeT
TD-
TD+
VeeT
VccT
VccR
VeeR
RD+
RD-
VeeR
20
19
18
17
1uH
16
10nF
15
14
13
12
11
10nF
Z=50R
Z=5OR
10uF
10uF
TD+
Z=5OR
LVPECL
Vcc3.3V
PHY DEVICE
1uH 10nF
10uF
Vcc3.3V
RD+
100R
LVPECL
RD-
SFP module
depend on customer's PHY
To I2C Bus
Vcc3.3V
10K
Los Of Signal
****************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
5/1/2004 V1.1
Optoway

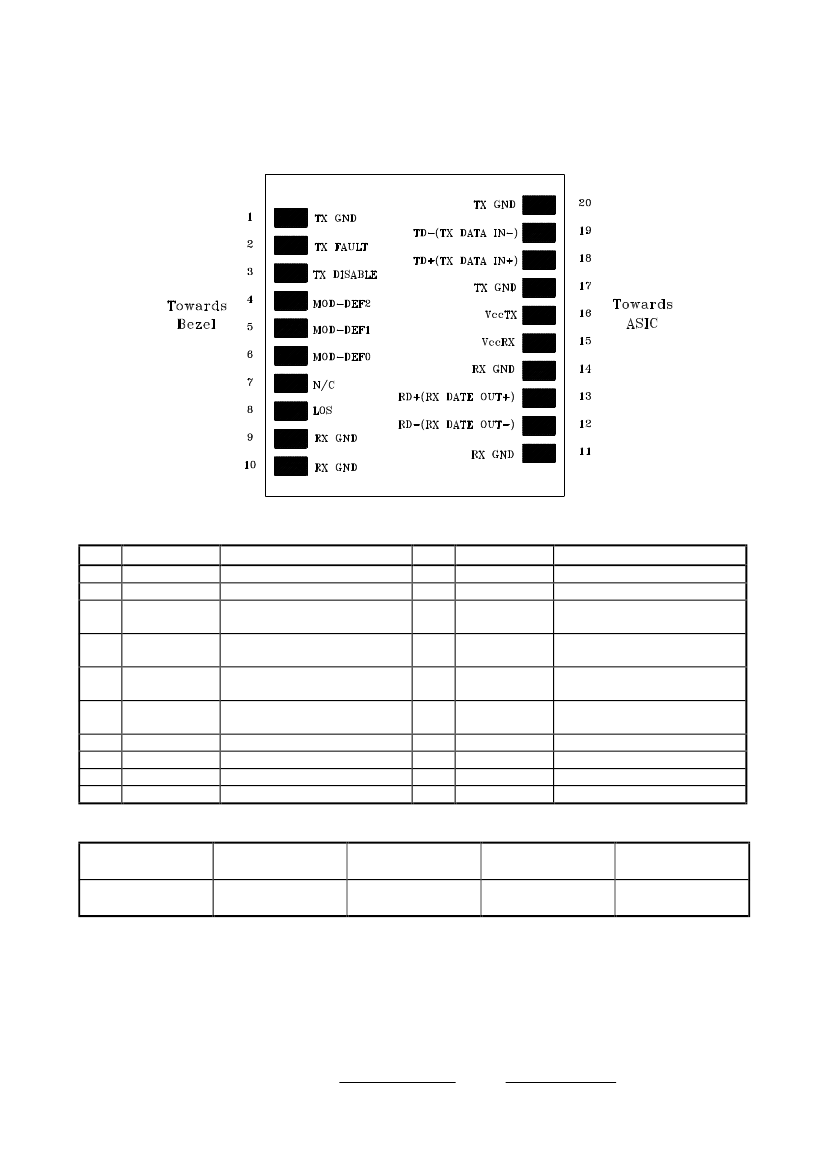

CONNECTION DIAGRAM
SPS-3380-CXX0
***************************************************************************************************************************************************************************
PIN
1
2
3
4
5
6
7
8
9
10
Signal Name
TX GND
TX Fault
TX Disable
MOD-DFE2
MOD-DEF1
MOD-DEF0
N/C
LOS
RX GND
RX GND
Description
Transmitter Ground
Transmitter Fault Indication
Transmitter Disable (Module disables
on high or open)
Modulation Definition 2
–
Two wires
serial ID Interface
Modulation Definition 1
–
Two wires
serial ID Interface
Modulation Definition 0
–
Ground in
Module
Not Connected
Loss of Signal
Receiver Ground
Receiver Ground
PIN
11
12
13
14
15
16
17
18
19
20
Signal Name
Description
RX GND
Receiver Ground
RX DATA OUT- Inverse Receiver Data Out
RX DATA OUT+ Receiver Data Out
RX GND
Vcc RX
Vcc TX
TX GND
TX DATA IN+
TX DATA IN-
TX GND
Receiver Ground
Receiver Power
–
3.3V±5%
Transmitter Power
–
3.3V±5%
Transmitter Ground
Transmitter Data In
Inverse Transmitter Data In
Transmitter Ground
Module Definition
Module Definition
4
MOD-DEF2
PIN 4
SDA
MOD-DEF1
PIN 5
SCL
MOD-DEF0
PIN 6
LV-TTL Low
Interpretation by Host
Serial module definition
protocol
Module Definition 4 specifies a serial definition protocol. For this definition, upon power up, MOD-DEF(1:2) appear as no
connector (NC) and MOD-DEF(0) is TTL LOW. When the host system detects this condition, it activates the serial protocol. The protocol
uses the 2-wire serial CMOS E
2
PROM protocol of the ATMEL AT24C01A/02/04 family of components.
****************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
5/1/2004 V1.1
Optoway

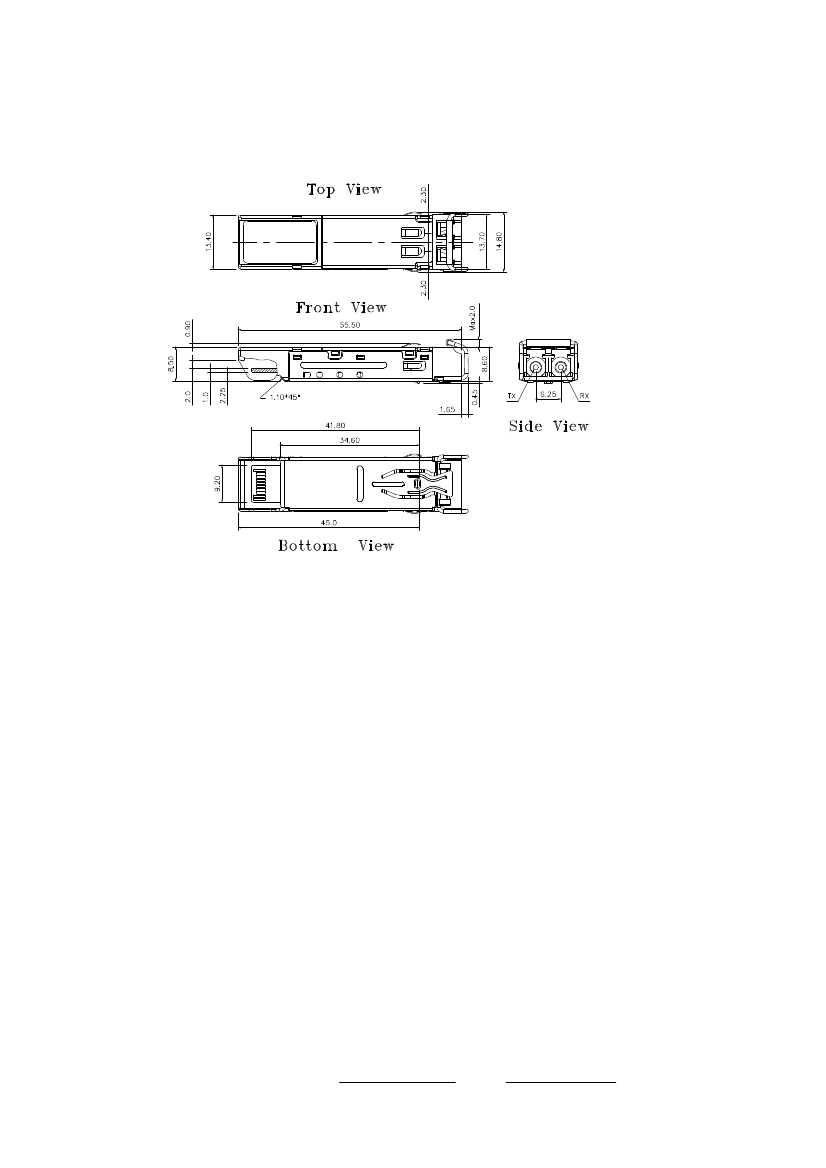

PACKAGE DIAGRAM
Units in mm
SPS-3380-CXX0
***************************************************************************************************************************************************************************
Note:
Specifications subject to change without notice.
****************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
5/1/2004 V1.1
