Optoway
TRSL-5380-CXX0 / TRSL-5380C-CXX0
3.3V / CWDM / 622 Mbps SFF LC SINGLE-MODE TRANSCEIVER
FEATURES
l
l
l
l
l
l
l
l
l
l
l
l
l
TRSL-5380-CXX0
******************************************************************************************************************************************************************************
******************************************************************************************************************************************************************************
DESCRIPTION
Duplex LC Single Mode Transceiver
SONET OC-12 LR / SDH STM-1 Compliant
Small Form Factor, RJ-45 size, 2X5 pin Package
18-Wavelength
CWDM DFB LD Transmitter from
1270 nm to 1610 nm, with step 20 nm
29 dB Link Budget at Least
LVPECL Signal Input / Output
LVTTL Transmitter Disable Input
LVPECL Signal Detection Output (TRSL-5380-CXX0)
LVTTL Signal Detection Output (TRSL-5380C-CXX0)
Single +3.3 V Power Supply
0 to 70
o
C Operation
Wave Solderable and Aqueous Washable
Class 1 Laser International Safety Standard IEC 60825
Compliant
The TRSL-5380-CXX0 series single mode transceivers is
low power, high performance CWDM modules for
bi-directional serial optical data communications such as
long-reach SONET OC-12 LR / SDH STM-4 and Fiber
Channel. There are eighteen center wavelengths available
from 1270 nm to 1610 nm, each step 20 nm. A guaranteed
minimum optical link budget of 29 dB is offered. The
transmitter section uses a multiple quantum well CWDM
DFB laser and is a class 1 laser compliant according to
International Safety Standard IEC 60825. The receiver
section uses an integrated InGaAs detector preamplifier
(IDP) mounted in an optical header and a limiting
post-amplifier IC. A PECL logic interface simplifies
interface to external circuitry.
LASER SAFETY
This single mode transceiver is a Class 1 laser product. It
complies with IEC-60825 and FDA 21 CFR 1040.10 and
1040.11. The transceiver must be operated within the
specified temperature and voltage limits. The optical ports
of the module shall be terminated with an optical connector
or with a dust plug
APPLICATIONS
l
ATM 622 Mbps Links
l
SONET/SDH Equipment Interconnect
l
Fiber Channel 533 Mb/s Links
ORDER INFORMATION
P/No.
Bit Rate
(Mb/s)
622
o
SONET
/SDH
LR
TRSL-5380-CXX0
Power
Budget
(dB)
> 29
Wavelength Package
(nm)
CWDM*
2X5 LC
Temp.
(
o
C)
0 to 70
TX Power RX Sens.
(dBm)
(dBm)
5 to 0
-29
Signal
Detect
LVPECL
CWDM Wavelength (0 to 70 C)
Central
Min.
Typ.
Max.
Central
Wavelength
(nm)
(nm)
(nm)
Wavelength
-C270
1264.5
1270
1277.5
-C450
-C290
1284.5
1290
1297.5
-C470
-C310
1304.5
1310
1317.5
-C490
-C330
1324.5
1330
1337.5
-C510
-C350
1344.5
1350
1357.5
-C530
-C370
1364.5
1370
1377.5
-C550
-C390
1384.5
1390
1397.5
-C570
-C410
1404.5
1410
1417.5
-C590
-C430
1424.5
1430
1437.5
-C610
CWDM*: 18 Wavelengths from 1270 nm to 1610 nm, each step 20 nm.
Min.
(nm)
1444.5
1464.5
1484.5
1504.5
1524.5
1544.5
1564.5
1584.5
1604.5
Typ.
(nm)
1450
1470
1490
1510
1530
1550
1570
1590
1610
Max.
(nm)
1457.5
1477.5
1497.5
1517.5
1537.5
1557.5
1577.5
1597.5
1617.5
******************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
6/30/2004 V2.0
Optoway
Absolute Maximum Ratings
Parameter
Storage Temperature
Operating Temperature
Soldering Temperature
Power Supply Voltage
Input Voltage
Output Current
Symbol
Tstg
Topr
---
Vcc
---
Iout
Min
-40
0
0
GND
0
Max
85
70
260
4.5
Vcc
30
Units
o
C
o
C
o
C
V
V
mA
TRSL-5380-CXX0
Notes
With air flow 1m/sec
10 seconds on leads only
*****************************************************************************************************************************************************************************
Recommended Operating Conditions
Parameter
Power Supply Voltage
Operating Temperature
Data Rate
Power Supply Current
Symbol
Vcc
Topr
Icc
Min
3.135
0
50
Typ
3.3
622
280
Max
3.465
70
Units / Notes
V
o
C / air flow 1m/sec
Mb/s
mA
Transmitter Specifications (0
o
C < Topr < 70
o
C, 3.135V < Vcc < 3.465V)
Parameter
Optical
Optical Transmit Power
Output Center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Relative Intensity Noise
Total Jitter
Electrical
Data Input Current
–
Low
Data Input Current
–
High
Differential Input Voltage
Data Input Voltage
–
Low
Data Input Voltage -- High
Disable Input Voltage -- Low
Disable Input Voltage -- High
Shut Off Time for TxDis
Symbol
Min
Typ
Max
Units
Notes
1
2
-20 dB Width
Po
0
---
5
dBm
λ-5.5
λ+7.5
nm
λ
λ
---
---
1
nm
∆λ
SMSR
30
dB
E
R
10
---
---
dB
Compliant with Bellcore GR-253-CORE and ITU recommendation G.957
t
r
1.2
ns
t
f
1.2
ns
RIN
-120
dB/Hz
TJ
0.55
ns
I
IL
I
IH
V
IH
- V
IL
V
IL
- V
CC
V
IH
- V
CC
V
TDIS,L
V
TDIS,H
t
DIS
-350
350
300
-2.0
-1.1
0
Vcc
–
1.3
-1.58
-0.74
0.5
Vcc
1
µA
µA
mV
V
V
V
V
ms
10% to 90% Values
10% to 90% Values
3
4
4
TX Output Enabled
TX Ouput Disabled
Notes: 1. Output power is power coupled into a 9/125
µm
single mode fiber.
2. ITU-T G.694.2 CWDM wavelength from 1270 nm to 1610 nm, each step 20 nm.
3. Measured with a 2
23
-1 PRBS with 72 ones and 72 zeros.
4. These inputs are compatible with 10K, 10KH and 100K ECL and PECL inputs.
**************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
6/30/2004 V2.0
Optoway
Receiver Specifications (0
o
C < Topr < 70
o
C, 3.135V < Vcc < 3.465V)
Parameter
Optical
Sensitivity
Maximum Input Power
Signal Detect -- Asserted
Signal Detect -- Deasserted
Signal detect -- Hysteresis
Wavelength of Operation
Electrical
Data Output Voltage
–
Low
Data Output Voltage
–
High
Signal Detect Output Voltage -- Low
Signal Detect Output Voltage -- High
Signal Detect Output Voltage -- Low
Signal Detect Output Voltage -- High
Symbol
---
Pin
Pa
Pd
Min
---
-5
---
-43
1.0
1100
-2.0
-1.1
-2.0
-1.1
2.0
Typ
---
---
---
---
---
Max
-29
---
-29
---
1620
-1.58
-0.74
-1.58
-0.74
0.8
Units
dBm
dBm
dBm
dBm
dB
nm
V
V
V
V
V
V
TRSL-5380-CXX0
Notes
1
Transition: low to high
Transition: high to low
*****************************************************************************************************************************************************************************
V
OL
- V
CC
V
OH
- V
CC
V
OL
- V
CC
V
OH
- V
CC
V
OL
V
OH
2
2
TRSL-5380-CXX0
TRSL-5380C-CXX0
Notes: 1. Minimum sensitivity and saturation levels at BER=1E-10 for a 2
23
-1 PRBS with 72 ones and 72 zeros.
2. The current excludes the output load current.
3. These outputs are compatible with 10K, 10KH and 100K ECL and PECL inputs.
CONNECTION DIAGRAM
PIN
1
2
3
4
5
6
7
8
9
10
MS
Symbol
V
EE
r
V
CC
r
SD
RD−
RD+
V
CC
t
V
EE
t
TxDis
TD+
TD-
MS
Notes
Directly connect this pin to the receiver ground plane
+3.3V dc power for the receiver section
Active high on this indicates a received optical signal.
Receiver Dataout Bar. See recommended circuit schematic
Receiver Dataout. See recommended circuit schematic
+3.3V dc power for the transmitter section
Directly connect this plan to the transmitter ground plane
Transmitter Disable. Connect this pin to +3.3V TTL logic
“1”
to disable module
To enable module connect to TTL logic low
“0”
Transmitter Data In. See recommended circuit schematic
Transmitter Data In Bar. See recommended circuit schematic
Mounting Studs. Connect to Chassis Ground
**************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
6/30/2004 V2.0
Optoway

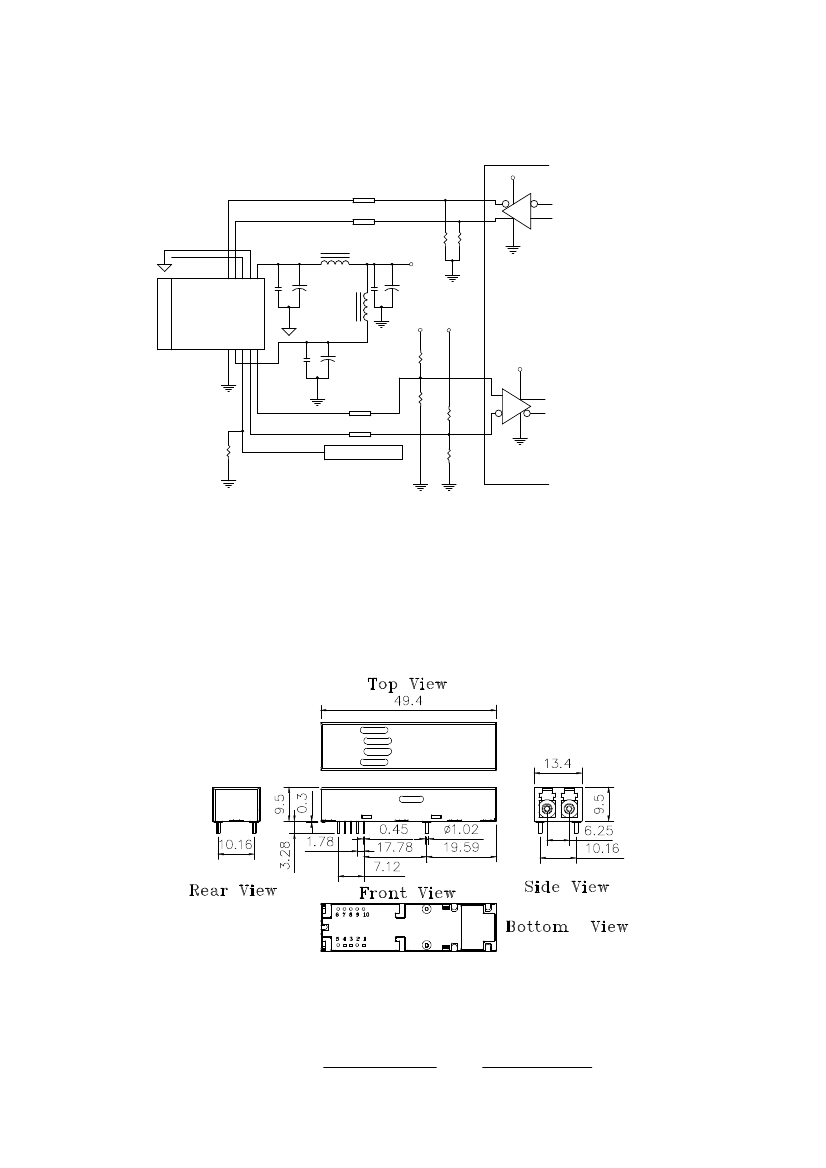

RECOMMENDED CIRCUIT SCHEMATIC
Vcc3.3V
MICROSTRIP1
Z=50R
MICROSTRIP2
Z=5OR
150ohm
TDis(LVTTL)
TD-
LVPECL
TD+
TRSL-5380-CXX0
*****************************************************************************************************************************************************************************
150ohm
10
9
8
7
6
1uH
Vcc3.3V
TD-
TD+
TDis
Veet
Vcct
10nF
10uF
1uH
10nF 10uF
PHY DEVICE
Vcc3.3V Vcc3.3V
SFF2X5
1
2
3
4
5
10nF
10uF
Veer
Vccr
SD
RD-
RD+
130R
RD+
Vcc3.3V
MICROSTRIP3
Z=50R
MICROSTRIP4
Z=5OR
SD
82R
130R
RD-
LVPECL
TO LVPECL STAGE
82R
1K
Note: 1. 1000ΩSD Output pull-down resistor required for TRSL-5380-CXX0 (LVPECL SD Output)
2. No pull-down resistor required for TRSL-5380C-CXX0C (LVTTL SD Output)
3. Veer and Veet are not internally connected to each other.
4. 50
Ω
line pattern and component placements on TD+/TD- and RD+/RD- lines shall be symmetrical for
better impedance matching.
PACKAGE DIAGRAM
Units in mm
1) Standard Case
TRSL-5380-CXX0 / TRSL-5380C-CXX0
**************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
6/30/2004 V2.0
Optoway

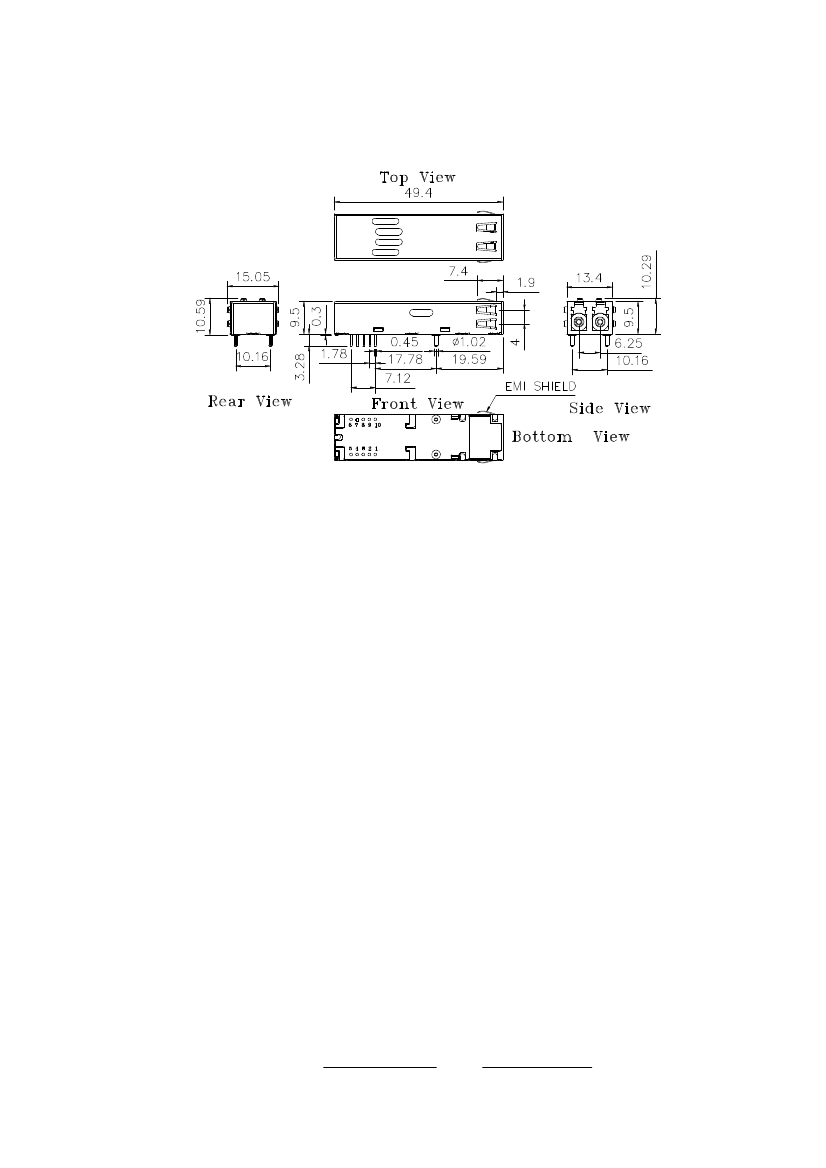

2) Extended Case
TRSL-5380-CXX0
*****************************************************************************************************************************************************************************
TRSL-5380E-CXX0 / TRSL-5380CE-CXX0
Note:
Specifications subject to change without notice.
**************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
6/30/2004 V2.0
