ZWS50AF-15/J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ZWS50AF-15/J

ZWS50AF-15/J: DescriptionAC-DC Regulated Power Supply Module, 52.5W,; CategoryPower/power management The power supply circuit; File Size589KB，4 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric View All

ZWS50AF-15/J Overview

AC-DC Regulated Power Supply Module, 52.5W,

ZWS50AF-15/J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	Yes
Is Samacsys	N
YTEOL	0
Objectid	7212138057
package instruction	,
Reach Compliance Code	Compliant
ECCN code	EAR99
Maximum total power output	52.5 W
Other features	REMOTE SHUTDOWN
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE
Efficiency (main output)	79%
Number of functions	1
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Ripple voltage (main output)	0.05303 Vrms
Certification	CE, CSA, UL
JESD-30 code	R-XXMA-X
Minimum input voltage	85 V
Output times	1
Maximum output voltage	16.5 V
Minimum output voltage	13.5 V
Nominal output voltage	15 V
surface mount	NO
Maximum input voltage	265 V
Nominal input voltage	100 V
Maximum output current	3.5 A
length	195 mm
Maximum seat height	24 mm
width	55 mm
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Package body material	UNSPECIFIED
encapsulated code	XMA
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY

Preview

Download Datasheet

View All

• Universal Input (85 - 265VAC)

• Power factor Corrected

• Input transient Corrected

• Peak Power capability

• 2 year warranty

• High quality design

Key Market Segments & Applications

Factory Automation

Process Control, NC-Machining,

Automotive, Packaging Equipment,

Materials Handling,

Chemical Processing, Robots

Burn-in & Test, Automated

Test, Instrumentation,

Measurement, Detection

Gaming, Vending, Printers

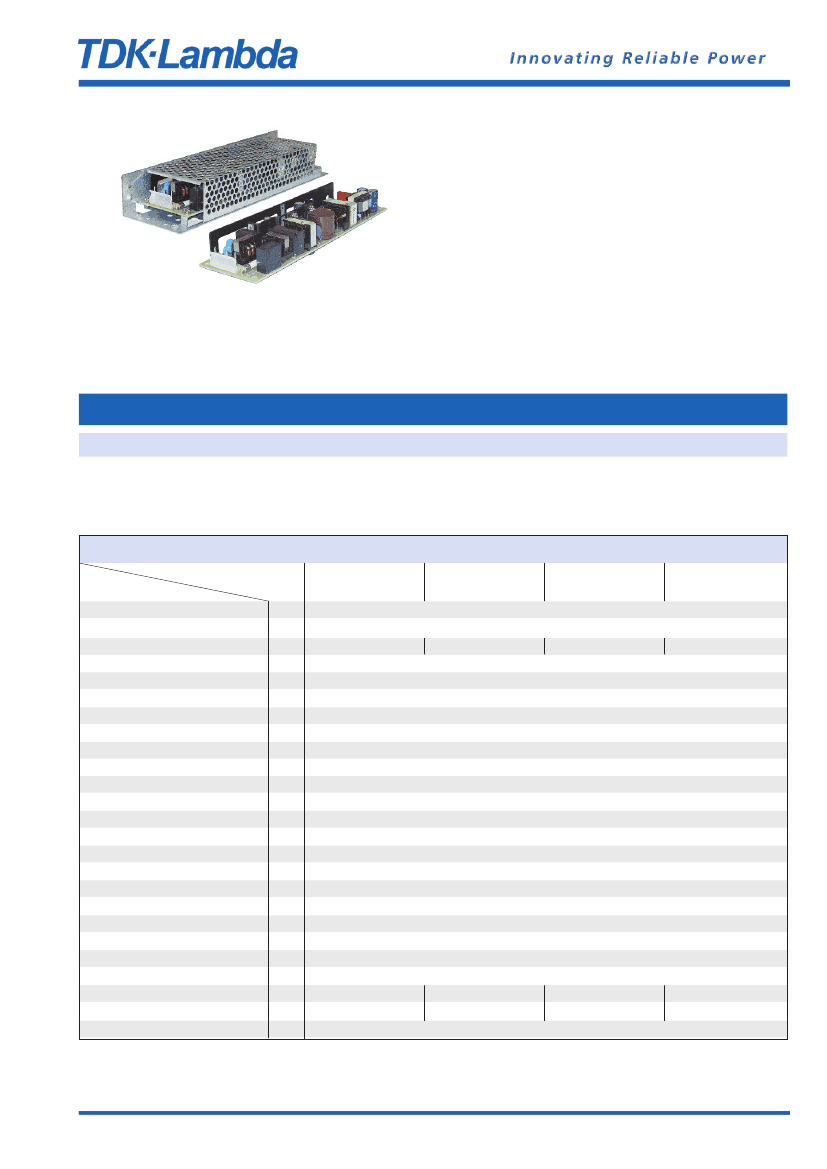

ZWS-AF Series

50 - 150W

Single output power supplies

ZWS-AF Features and Benefits

Features

• Input Transient Protected

• 2 Year Warranty

• Power Factor Corrected

• Peak Power Capability

Test & Measurement

Light Industrial

Benefits

• Withstands Harsh Environments

• Low Cost of Ownership

• Supports Global Use

• Can Drive High current Start Up Devices

Specifications

MODELS

ITEMS

AC Input Voltage range

DC Input Voltage range

Input Current (Typ)

Inrush Current

Power Factor

Maximum Ripple and Noise

Temperature Coefficient

Overcurrent Protection

Hold Up Time (Typ)

Leakage Current

Remote On / Off

Operating Temperature

Storage Temperature

Humidity (non condensing)

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock (in packaging)

Safety Agency Approvals

Conducted & Radiated EMI

Immunity

Weight (Typ)

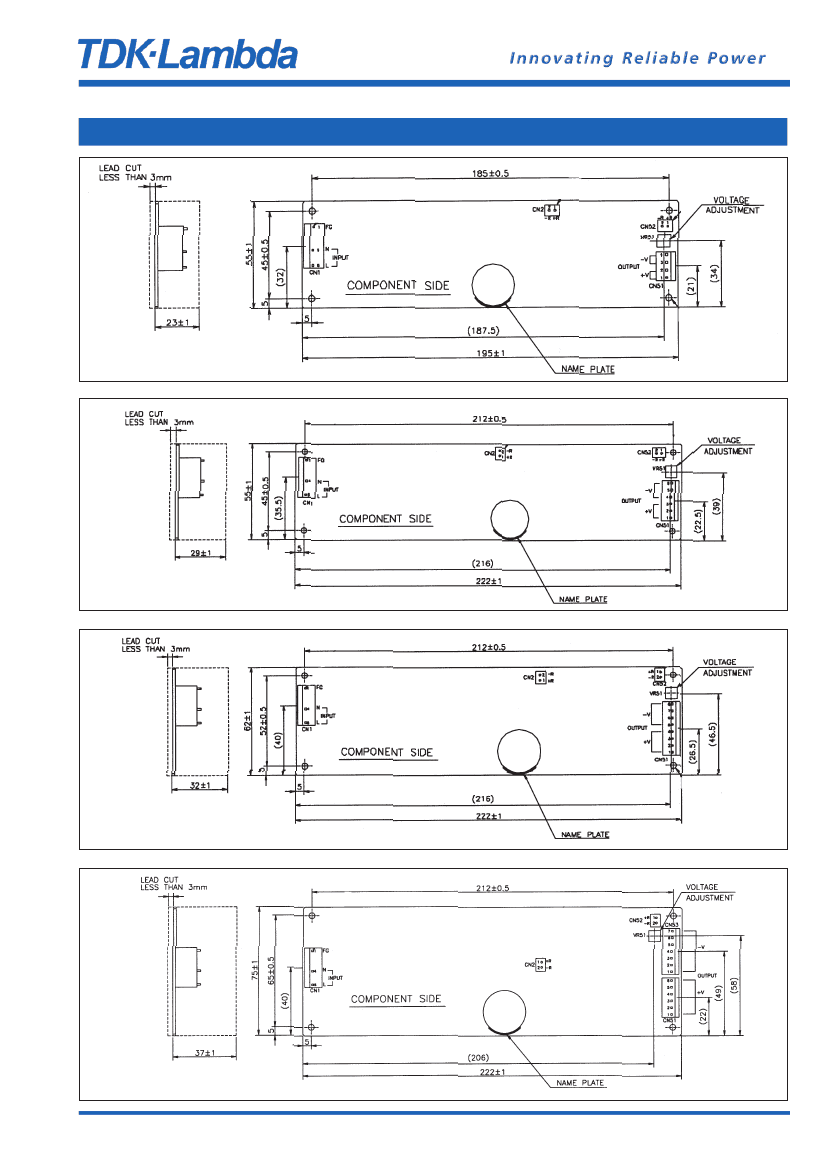

Size (W x H x D)

Warranty

Notes:

(1) 100/200VAC (2) ZWS150AF -10 to 60°C, Derate linearly to 70% load from 50°C to 60°C

(3) The peak current draw must not exceed a 10 second duration with a duty cycle of 35%

(4) Constant current limit with automatic recovery. Do not operate in a over-load or shorted output condition for more than 30 seconds.

(5) An overvoltage condition on the output will shut down the power supply. The power supply must be re-set by cycling the AC input.

ZWS50AF

ZWS75AF

ZWS100AF

ZWS150AF

(1)

(4)

(1)

VAC

VDC

yrs

85-265VAC (47-63Hz)

120-370VDC

0.8/0.4

1.2/0.6

1.4/0.7

2.0/1.0

14/28 25°C Ambient, Cold Start

Meets EN61000-3-2 (0.99/0.95)

3.3V & 5V :120mV, 12V to 24V : 150mV, 36V & 48V : 200mV

<0.02%/°C

>105% of Peak Current Capability

0.5mA max 0.1mA (Typ) at 100VAC 0.16mA (Typ) at 230VAC

See installation manual (Not available with /A cover option)

Convection cooling - See table on page 2

0.7m/s air -10°C to +70°C, Derate linearly to 70% load from 60°C to 70°C (2)

-30° to +85°C

Operating: 30 - 90% RH, storage 10-95% RH

I/P~Gnd 2kVAC (20mA), I/P~O/P 3kVAC (20mA), O/P~Gnd 500VAC (100mA) for 1 min.

>100M at 25C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour

< 196.1 m/s

UL/CSA60950-1, EN60950-1, EN50178, CE Mark

Designed to meet EN55011, EN55022-B, FCC Class B, VCCI-B

Designed to meet EN61000-4-2,-3,-4,-5,-6,-8,-11

210

290

380

500

55 x 26 x 195

55 x 32 x 222

62 x 35 x 222

75 x 40 x 222

2 Years

ZWS-AF Series
