CTS
Reeves
FREQUENCY PRODUCTS
Model 105
Miniature OCXO
CRYSTALS
Features:
• Frequency Range: 10 to 20 MHz
• Stabilities as low as
±5
X 10
-8
• Low profile (.53 high)
• 1.5 inch sq. package
• Sinewave Output

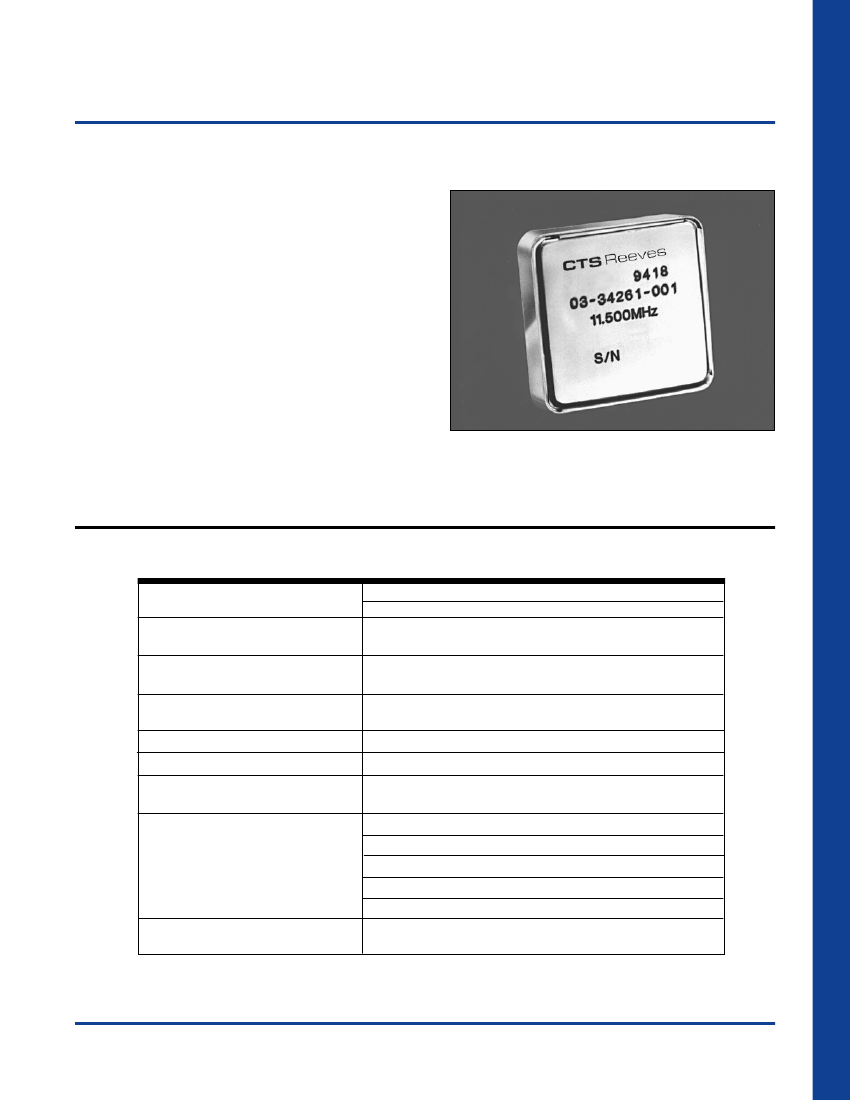

CTS Reeves model 105 is a high stability
OCXO housed in a Standard TCXO package.
At only .53 high it is ideal for applications
requiring high stability in small size such as
rack mounted or portable applications. The
105 has Sinewave output for more design
flexibility. Also there are a variety of tempera-
ture and stability options to choose from.
CLOCKS
VCXOs
Electrical Specifications:
Parameter
Supply Voltage
(Vdd)
Maximum
Operating
Frequency Range (MHz)
10.0 to 20 MHz
15 Vdc
12 Vdc
±5%
300 ma, Max.
120 ma, Max.
Sinewave
0 dBm Min.
50
Ω
-25 dBc Max.
±1
x 10
-7
/ 5 Min.
±1
x 10
-8
/ 30 Min.
Offset
Level (dBc) Standard
Low Noise
10 Hz
-110
-120
100 Hz
-130
-140
1 kHz
-140
-150
10 kHz
-145
-155
Sufficient for 10 yrs Aging (Range is Option Dependent)
0 to 10 Vdc
Supply Current (@ 25C) Warm-up
Steady State
Output
(50 ohm load)
Load
Harmonics
Warm-up (@ 25C)
Ref. to Freq. at 1 hr.
TCXOs
Phase Noise (1 Hz Bandwidth)
OCXOs
Electrical freq. adjust
(Positive Slope)
400 REIMANN AVE.
•
SANDWICH, IL 60548
Phone: 815-786-8411
•
Fax: 815-786-3600
•
E-Mail: www.ctsreeves.com
95
CTS
Reeves
CRYSTALS
FREQUENCY PRODUCTS
Outline Drawing and
Pin Connections:
Model 105
Miniature OCXO
Conductive Stand-off
(4 places)
0.550
MAX
1.000
0.500
0.200
0.500
0.025
0.400
0.800
1.53
MAX
CLOCKS
0.030
0.040
1.53
MAX
Pin Connections
PIN
1
2
3
4
5
6
FUNCTION
OUTPUT
FREQ ADJUST
+12V
+12V
GND
GND
1.000
0.500
VCXOs
Mechanical Specifications:
Case:
Metal, hermetically sealed
Leads:
Nickel plated with solder coating,
Seal:
Solder Seal
Leak Test:
Leak rate less than 5x10
-5
atmosphere-cc/sec of helium
Solderability:
95% solder coverage, using RMA flux 63
SN / 37 Pb solder at +245°C
±5°C
Temperature:
Operating: See Chart
Storage: -55 to 85°C
Vibration:
10 G's rms, 20 to 500 Hz
Mechanical Shock:
100 G's 5ms pulse (3 shock/plane)
TCXOs
Ordering Information:
Model Type 105 ___ ___ ___ ___ ___ ___ ___ ___
Temp. Range
Stability
±1
x 10
-8
B
X
Aging
±2
x 10
-8
C
X
X
Phase Noise
±5
x 10
-8
D
X
X
X
±1
x 10
-7
E
X
X
X
X
Freq. in MHz
Phase Noise Code
Standard
A
Low Noise
B
Temp Stability
±5
x 10
-9
Temp Range Code
A
0° to 50°C A
X
0° to 70°C B
-30° to 70°C C
-40° to +85°C D
OCXOs
1
st
Year Aging Code
±0.5
ppm
A
±0.3
ppm
B
±0.1
ppm
C
±0.05
ppm
D
Note: Not all Options are Available at all Frequencies. Consult Factory for Details.
96
400 REIMANN AVE.
•
SANDWICH, IL 60548
Phone: 815-786-8411
•
Fax: 815-786-3600
•
E-Mail: www.ctsreeves.com
