IQD Frequency Products

Incorporating IQD FOQ GmbH

ISSUE 5; September 2012 - RoHS 2011/65/EU

Description

Oscillator Specification

Model:

QC6111/1B

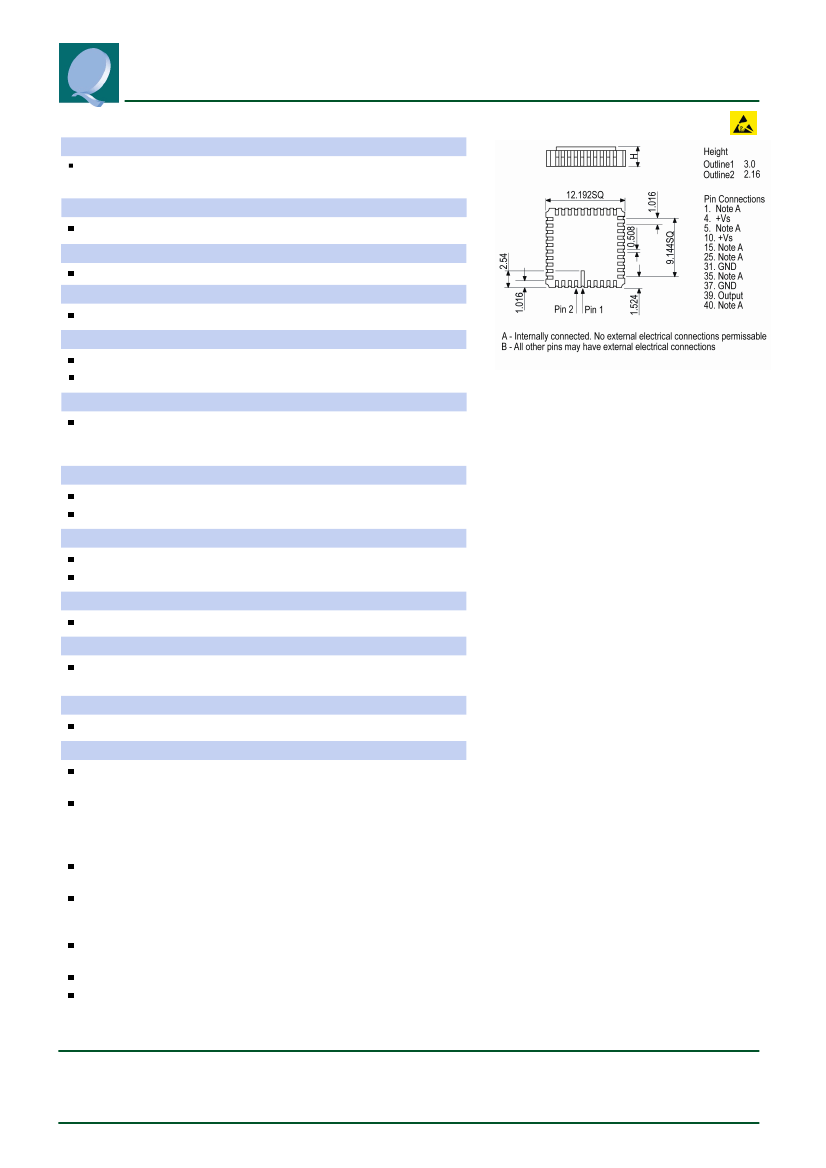

Outline (mm)

Series of 40 pin leadless chip carrier (LCC) oscillator (manufactured

in accordance with BS9625-F0016)

Frequency Range

Frequency

Supply Voltage

0.375 to 5.999999 MHz

Voltage

Ageing

5.0V ±0.5V

±10ppm max in 30 days at 85°C

Ageing

Output Compatibility & Load

Output Compatibility

Drive Capability

Frequency Stabilities

HCMOS

2TTL or 50pF

Frequency Stability

±35ppm, ±60ppm, ±100ppm

(inclusive of supply voltage and output load variations over the

operating temperature range)

Operating Temperature Ranges

-40 to 85°C

-55 to 125°C

Frequency Parameters

Short Term Stability (measured over 1 second): 5x10-10 typical

Supply Voltage Variation (@ ±10% change): ±2ppm max

Electrical Parameters

Start up time: 15ns max

Output Levels

Output logic '0': 0.1Vs max

Output logic '1': 0.9Vs min

Output Details

Rise and fall times measured between +1.5V and +3.5V

Environmental Parameters

Bump Severity: 4000±10 bumps at 390m/s2 peak acceleration, pulse

duration 6ms in each direction of three mutually perpendicular axes

Vibration Severity (sinusoidal): 10Hz to 60Hz, 3.5mm peak

displacement, 60Hz to 5000Hz, 490m/s2 peak acceleration, 5

sweeps at 1 octave/min in each of three mutually perpendicular axes

(4hr 30mins total)

Vibration Severity (random): 0.5G2/Hz between 20Hz and 2kHz,

duration 30 mins in each of three mutually perpendicular axes

Shock Severity: 14700m/s2 peak acceleration for 0.5ms duration,

half sine pulse, 5 shocks in each direction of three mutually

perpendicular axes

Acceleration (steady state): 49000m/s2 steady acceleration for 1min

duration in the Y1 direction

Climatic Catagory: 55/125/56

Storage Temperature: -65 to 150°C

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: +49 (0)7264 9145-0

Printed on 7 Sep 12 9:51

France: +33 (0)5 34 50 91 18

USA: +1 (0)408.273.4530

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
