ATFC-0402-10N-J datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> ATFC-0402-10N-J

Preview

ATFC-0402-10N-J: DescriptionGeneral Purpose Inductor, 0.01uH, 5%, Ceramic-Core, 0402,; CategoryPassive components inductor; File Size214KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ATFC-0402-10N-J Overview

General Purpose Inductor, 0.01uH, 5%, Ceramic-Core, 0402,

ATFC-0402-10N-J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	Yes
Reach Compliance Code	Compliant
ECCN code	EAR99
Is Samacsys	N
YTEOL	6.25
Objectid	919600692
package instruction	0402
uppercase and lowercase codes	0402
DC Resistance	1.35 Ω
Nominal inductance(L)	0.01 µH
Minimum quality factor (at nominal inductance)	13
self resonant frequency	4500 MHz
Tolerance	5%
core material	CERAMIC
Inductor type	GENERAL PURPOSE INDUCTOR
Maximum rated current	0.2 A
surface mount	YES
structure	Chip
Package form	SMT
Terminal surface	MATTE TIN OVER NICKEL
JESD-609 code	e3
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package height	0.32 mm
Package length	1 mm
Package width	0.5 mm

Preview

Download Datasheet

View All

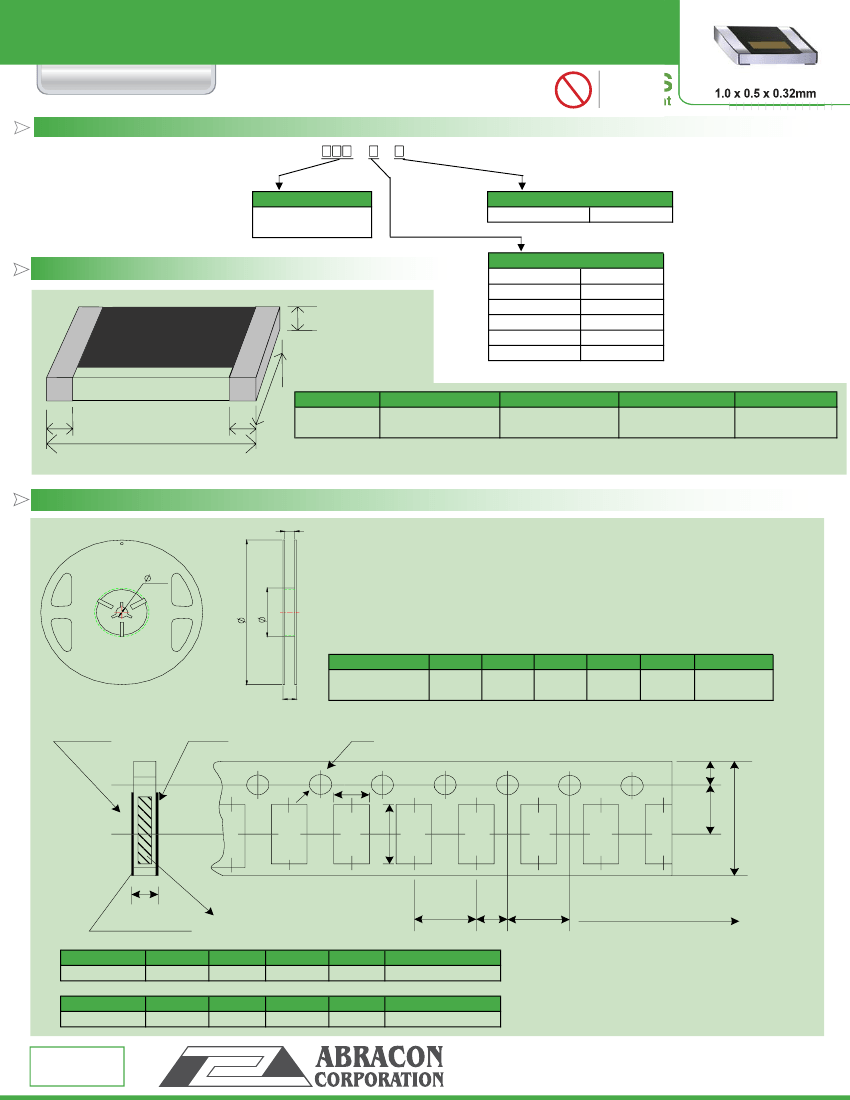

THIN FILM CHIP INDUCTOR

ATFC-0402

FEATURES:

• A photo-lithographic single layer ceramic chip

• High SRF; Excellent Q

• Superior Temperature Stability

• Tight Tolerance of

±

1% or

±

0.1nH

• Self Resonant Frequency Control

• Stable Inductance in High Frequency Circuit

• Highly Stable Design for Critical Needs

Pb

RoHS

Compliant

1.0 x 0.5 x 0.32mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Cellular Telephones

• Communication Appliances

• Pagers and GPS Products • Bluetooth Module

• Wireless LAN

• VCO,TCXO Circuit and RF Transceiver Modules

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Operating temperature:

Storage temperature:

Quality Factor (Q)

min

13 / 500MHz

ATFC-0402-xxx Series

-25°C to + 85°C

25±3°C; Humidity <80%RH

Resistance

DC/Max (

Ω)

0.1

0.15

0.25

0.35

0.45

0.55

0.65

0.85

1.05

1.25

1.35

1.55

1.75

1.95

2.15

2.55

2.65

3.25

4.5

Current

DC/Max (mA)

800

700

560

440

380

340

320

280

260

220

200

180

130

100

90

75

Self Resonant

Frequency /min (GHz)

14

12

10

8

6

5.5

4.5

3.7

3.3

3.1

2.8

2.5

ABRACON

p/n

ATFC-0402-0N2-X

ATFC-0402-0N4-X

ATFC-0402-0N8-X

ATFC-0402-1N0-X

ATFC-0402-1N1-X

ATFC-0402-1N2-X

ATFC-0402-1N3-X

ATFC-0402-1N4-X

ATFC-0402-1N5-X

ATFC-0402-1N6-X

ATFC-0402-1N7-X

ATFC-0402-1N8-X

ATFC-0402-1N9-X

ATFC-0402-2N0-X

ATFC-0402-2N2-X

ATFC-0402-2N4-X

ATFC-0402-2N5-X

ATFC-0402-2N7-X

ATFC-0402-2N8-X

ATFC-0402-2N9-X

ATFC-0402-3N0-X

ATFC-0402-3N1-X

ATFC-0402-3N2-X

ATFC-0402-3N3-X

ATFC-0402-3N5-X

ATFC-0402-3N7-X

ATFC-0402-3N9-X

ATFC-0402-4N7-X

ATFC-0402-5N6-X

ATFC-0402-5N9-X

ATFC-0402-6N8-X

ATFC-0402-7N2-X

ATFC-0402-8N0-X

ATFC-0402-8N2-X

ATFC-0402-9N1-X

ATFC-0402-10N-X

ATFC-0402-12N-X

ATFC-0402-13N8-X

ATFC-0402-15N-X

ATFC-0402-17N-X

ATFC-0402-18N-X

ATFC-0402-20N8-X

ATFC-0402-22N-X

ATFC-0402-27N-X

ATFC-0402-33N-X

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Inductance

(nH)

0.2

0.4

0.8

1.0

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

1.9

2.0

2.2

2.4

2.5

2.7

2.8

2.9

3.0

3.1

3.2

3.3

3.5

3.7

3.9

4.7

5.6

5.9

6.8

7.2

8.0

8.2

9.1

10.0

12.0

13.8

15.0

17.0

18.0

20.8

22.0

27.0

33

X: Tolerance Code

Standard

Other Options

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

B (±0.1nH)

C,S

F (±1%)

C,S,G,J

F (±1%)

C,S,G,J

F (±1%)

C,S,G,J

F (±1%)

C,S,G,J

F (±1%)

C,S,G,J

F (±1%)

C,S,G,J

F (±1%)

C,S,G,J

F (±1%)

C,S,G,J

J (±5%)

C,S,G

Revised: 08.24.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
