39JR179-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39JR179-1

39JR179-1: DescriptionRF SMA Connector, Female, Panel Mount, Solder Terminal, Jack; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

39JR179-1 Overview

RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack

39JR179-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-39012
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.33

Preview

Download Datasheet

View All

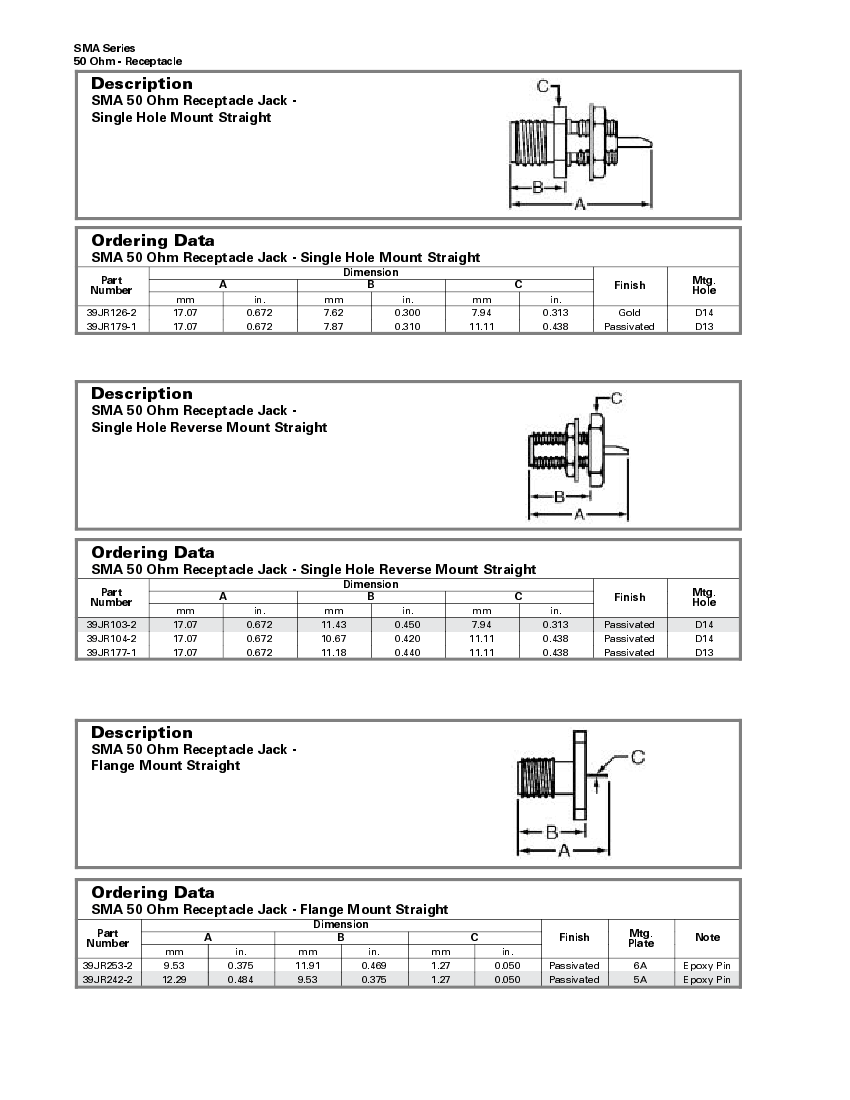

SMA Series

50 Ohm - Receptacle

Description

SMA 50 Ohm Receptacle Jack -

Single Hole Mount Straight

SMA Series

50 Ohm - Receptacle

RF/Coaxial

Ordering Data

39JR126-2

39JR179-1

Part

Number

SMA 50 Ohm Receptacle Jack - Single Hole Mount Straight

17.07

in.

0.672

7.62

7.87

Dimension

in.

0.300

0.310

7.94

11.11

in.

0.313

0.438

Finish

Gold

Passivated

Mtg.

Hole

D14

D13

Description

SMA 50 Ohm Receptacle Jack -

Single Hole Reverse Mount Straight

Ordering Data

39JR103-2

39JR104-2

39JR177-1

Part

Number

SMA 50 Ohm Receptacle Jack - Single Hole Reverse Mount Straight

17.07

in.

0.672

11.43

10.67

11.18

Dimension

in.

0.450

0.420

0.440

7.94

11.11

in.

0.313

0.438

Finish

Passivated

Mtg.

Hole

D14

D13

Description

SMA 50 Ohm Receptacle Jack -

Flange Mount Straight

Ordering Data

39JR253-2

39JR242-2

Part

Number

SMA 50 Ohm Receptacle Jack - Flange Mount Straight

9.53

12.29

in.

0.375

0.484

11.91

9.53

Dimension

in.

0.469

0.375

1.27

in.

0.050

Finish

Passivated

Mtg.

Plate

Note

Epoxy Pin

30-96

RF/Coaxial

39JR179-1 Related Products

	39JR179-1	39JR242-2	39JR253-2	39JR103-2	39JR104-2	39JR177-1	SF10T1000BVLQ
Description	RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack	RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack	RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack	RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack	RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack	RF SMA Connector, Female, Panel Mount, Solder Terminal, Receptacle	SMD metal film resistor
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	-
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	-
Body/casing type	RECEPTACLE	JACK	JACK	JACK	JACK	RECEPTACLE	-
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	-
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	-
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	-
DIN compliance	NO	NO	NO	NO	NO	NO	-
Filter function	NO	NO	NO	NO	NO	NO	-
IEC compliance	NO	NO	NO	NO	NO	NO	-
Insertion loss	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB	-
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	-
MIL compliance	YES	YES	YES	YES	YES	YES	-
Manufacturer's serial number	SMA	SMA	SMA	SMA	SMA	SMA	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	-
Panel mounting	YES	YES	YES	YES	YES	YES	-
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-
voltage standing wave ratio	1.33	1.33	1.33	1.33	1.33	1.33	-
Base Number Matches	-	1	1	1	1	1	-
