M39012/16-0503 datasheet, PDF - EEWORLD Datasheet

M39012/16-0503: DescriptionRF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

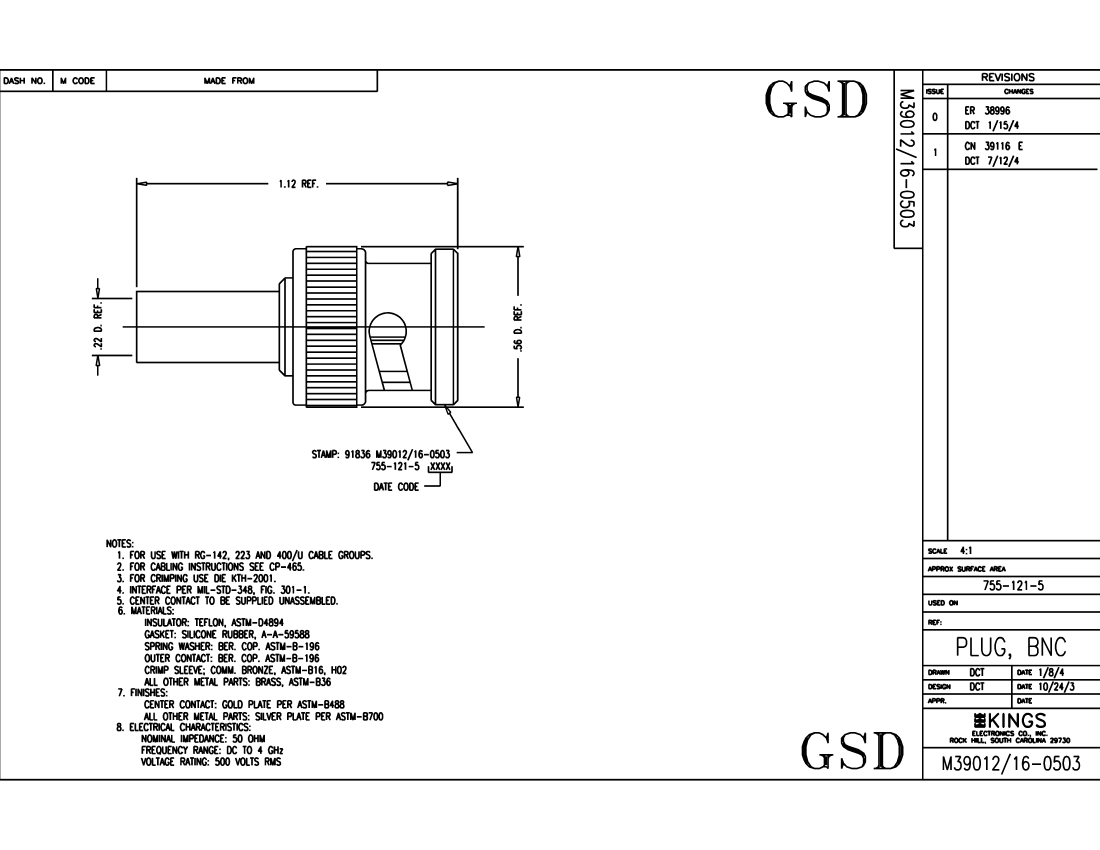

M39012/16-0503 Overview

RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 142/U, RG 223/U, RG 400/U
Body diameter	0.56 inch
Body/casing type	PLUG
Cable type	RG-142
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	MIL-C-39012
Shell surface	SILVER
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1
Base Number Matches	1

	M39012/16-0503
Description	RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 142/U, RG 223/U, RG 400/U
Body diameter	0.56 inch
Body/casing type	PLUG
Cable type	RG-142
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	MIL-C-39012
Shell surface	SILVER
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1
Base Number Matches	1
