533254-1 datasheet, PDF - EEWORLD Datasheet

533254-1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,#2-56,NATURAL; CategoryThe connector The connector; File Size228KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

533254-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	533254-1	-	-	View	Buy Now

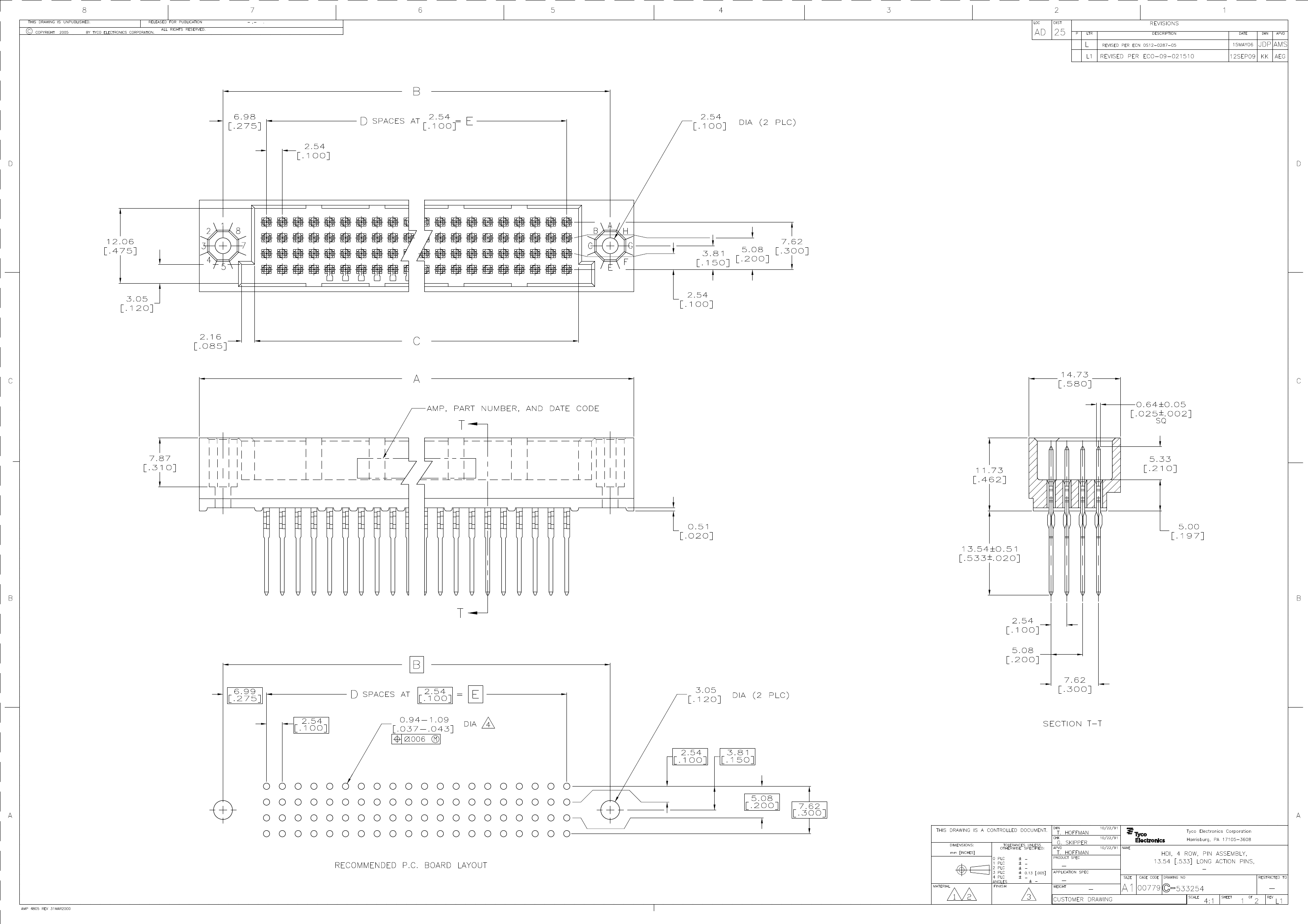

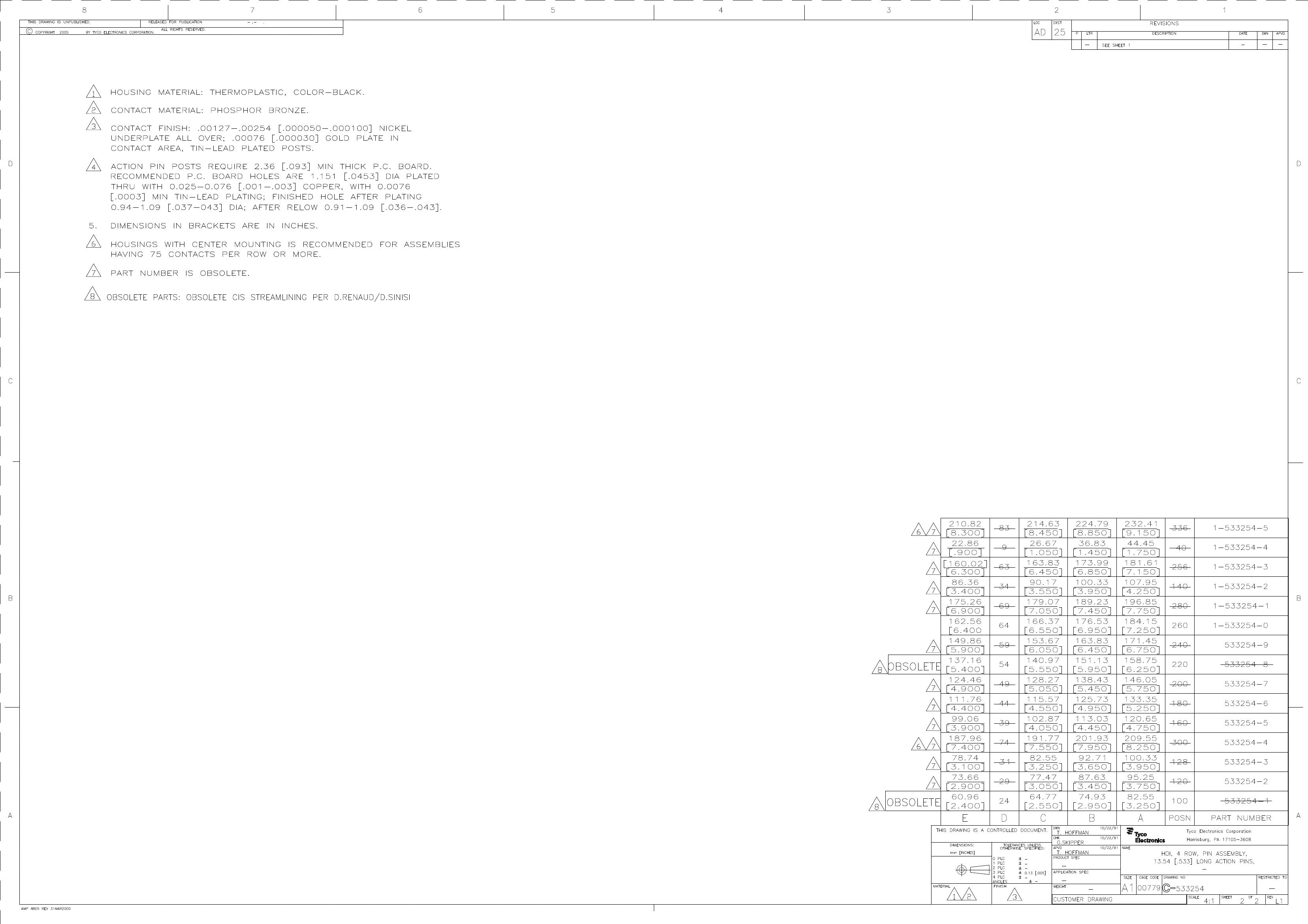

HEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,#2-56,NATURAL

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	301475485
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	#2-56 THD HOLE
body width	0.58 inch
subject depth	0.462 inch
body length	3.25 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Durability	250 Cycles
Insulator color	NATURAL
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
Manufacturer's serial number	533254
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	#2-56
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.533 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	100

	533254-1	1-533254-0
Description	HEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,#2-56,NATURAL	260 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	compliant	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	NOT SPECIFIED
Contact completed and terminated	GOLD	TIN
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Manufacturer's serial number	533254	533254
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	4	4
Terminal pitch	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	100	260
