3111321060: DescriptionCard Edge Connector, 132 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size429KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

3111321060 Overview

Card Edge Connector, 132 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

3111321060 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
Board mount options	PEG
body width	0.35 inch
subject depth	0.61 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VDC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	311
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Termination type	SOLDER
Total number of contacts	132
Base Number Matches	1

Preview

Download Datasheet

View All

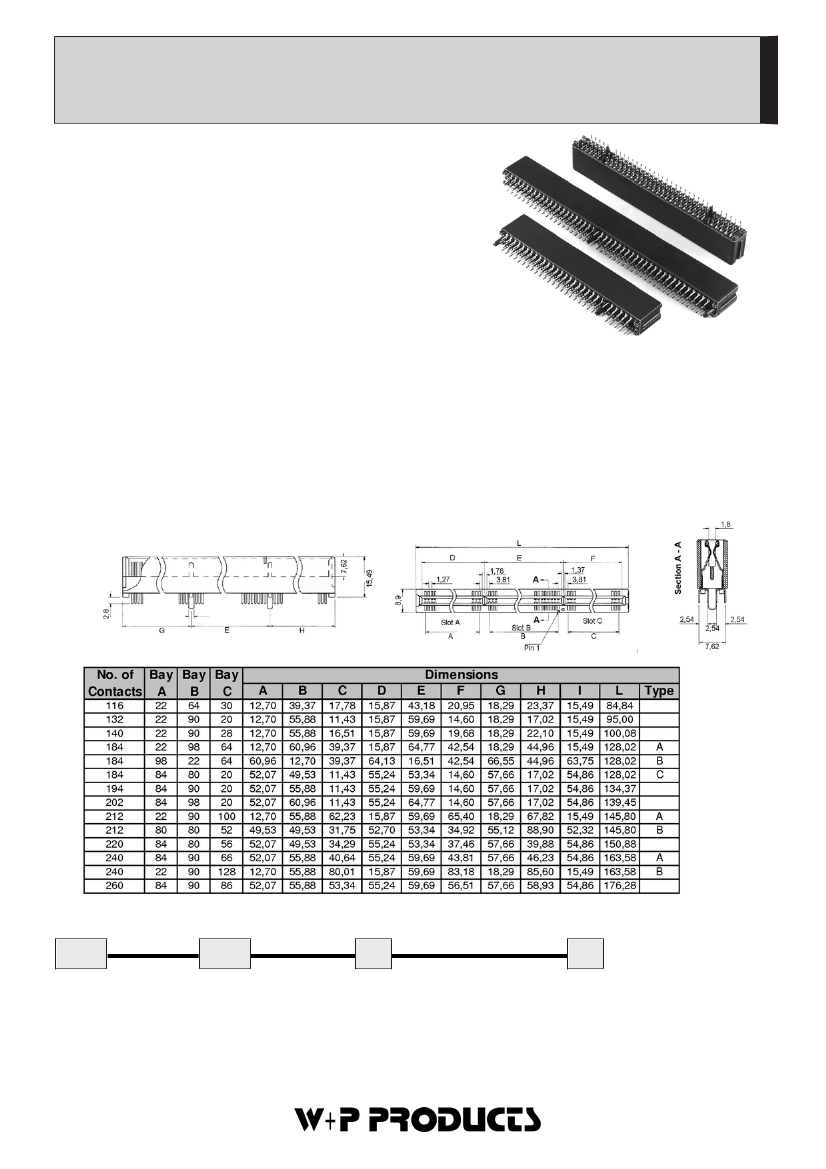

311

Edge Card Verbinder - RM 1,27mm - 3 Slot Version

Edge Card Connector - Pitch 1,27mm - 3 Slot Version

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Phosphorbronze

Contact Material

Phosphor bronze

Kontaktoberfläche

Im Steckbereich vergoldet / Lötseite verzinnt

(andere Veredelungen auf Anfrage)

Contact Surface

Gold plated in mating area / tin plated solder area

(More plating options by request)

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 30mΩ

Contact Resistance

< 30mΩ

9

Isolationswiderstand

> 10

Ω

9

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

1000V

DC

Test Voltage

1000V

DC

Nennspannung

125V

AC

max.

Voltage Rating

125V

AC

max.

Nennstrom

1A

Current Rating

1A

Temperaturbereich

-55°C ... +105°C

Temperature Range

-55°C ... +105°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Mechanische Haltbarkeit

100 Steckzyklen

Mechanical Durability

100 cycles

Series

Contacts

*

Type

*

Plating

311

260

116-260

10

Ausführung A

Type A

20

Ausführung B

Type B

30

Ausführung C

Type C

60

Sel. Au/Sn

Duplex plating

(

*

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

*

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com

1

3111321060 Related Products

	3111321060	3112121060	3111841060	3111401060
Description	Card Edge Connector, 132 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle	Card Edge Connector, 212 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle	Card Edge Connector, 184 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle	Card Edge Connector, 140 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle
Reach Compliance Code	compliant	compli	compliant	compliant
Board mount options	PEG	PEG	PEG	PEG
body width	0.35 inch	0.35 inch	0.35 inch	0.35 inch
subject depth	0.61 inch	0.61 inch	0.61 inch	0.61 inch
body length	3.74 inch	5.74 inch	5.04 inch	3.94 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1000VDC V	1000VDC V	1000VDC V	1000VDC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	311	311	311	311
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
Number of rows loaded	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.11 inch	0.11 inch	0.11 inch	0.11 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	132	212	184	140
Maker	W+P Products GmbH	-	W+P Products GmbH	W+P Products GmbH
Base Number Matches	1	1	1	-
