BG075-19A-1-0600-0300-0150-N-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG075-19A-1-0600-0300-0150-N-G

BG075-19A-1-0600-0300-0150-N-G: DescriptionBoard Connector,; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG075-19A-1-0600-0300-0150-N-G Overview

Board Connector,

BG075-19A-1-0600-0300-0150-N-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	Yes
Objectid	7135471182
Reach Compliance Code	Compliant
Country Of Origin	Mainland China
ECCN code	EAR99
Is Samacsys	N
Terminal pitch	2.54 mm
Connector type	BOARD CONNECTOR
Contact resistance	20 mΩ
Durability	100 Cycles
Rated current (signal)	3 A
Number of rows loaded	1
Total number of contacts	19
Contact point gender	MALE
insulator material	POLYAMIDE6T
Installation method	RIGHT ANGLE
Installation type	BOARD
contact mode	RECTANGULAR
Mixed contacts	NO
Termination type	SOLDER
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact style	SQ PIN-SKT
Installation option 1	LOCKING
Number of connectors	ONE
Dielectric withstand voltage	600VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C

Preview

Download Datasheet

View All

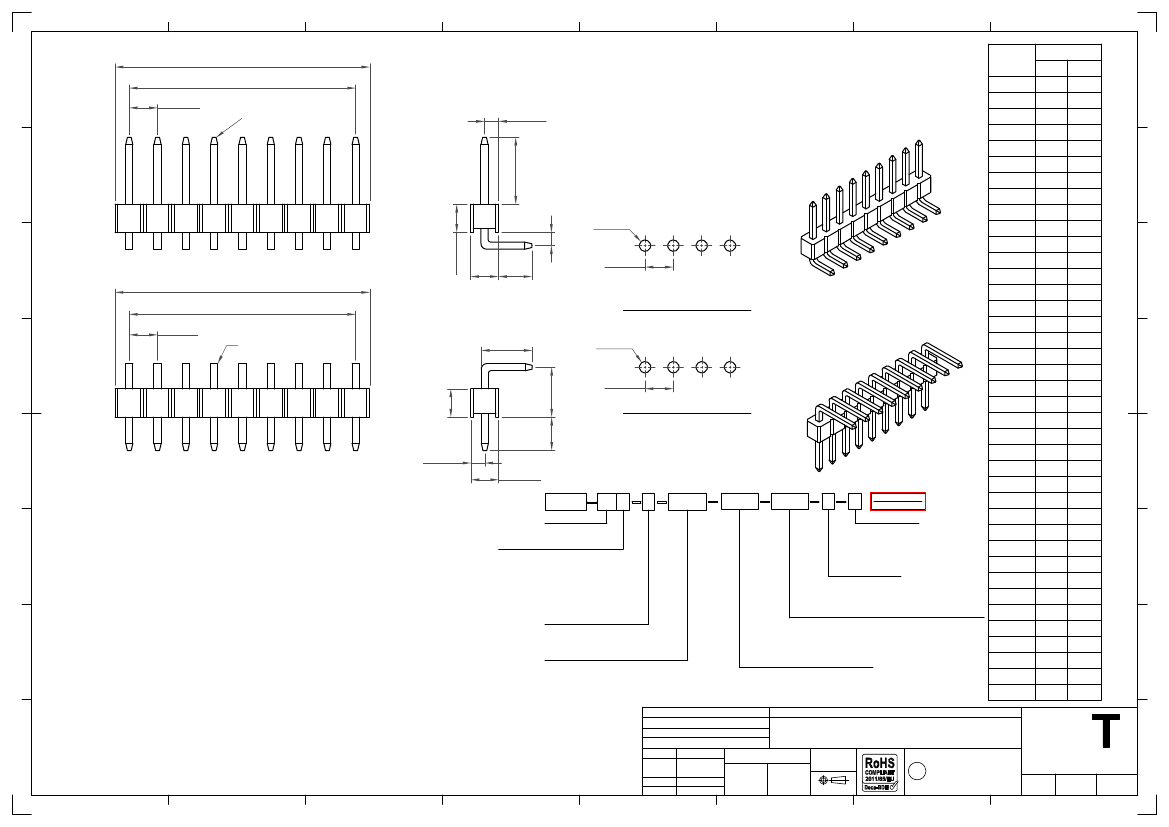

B ±0.38

Number of

Contacts

Dimensions

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

101.60

A ±0.25

2.54

PIN 0.64 SQ

TYPE A

1.25

TYPE A

Ø1.02

2.54

2.50

B ±0.38

A ±0.25

2.54

PIN 0.64 SQ.

TYPE B

Recommended PCB Layout

Ø1.02

2.54

TYPE B

2.54

Recommended PCB Layout

1.25

2.50

Ordering Grid

BG075

Specifications

规格

Material

物料

Insulator

绝缘½

Standard

标准

: Polyamide

聚酰胺

, Nylon 6T, UL 94V-0

Options

可选

: Polymer

聚合物

, LCP, UL 94V-0

Polyester

聚酯

, PBT, UL 94V-0

Contact

接触

: Copper Alloy

Plating

电镀

Contact

接触

: See Ordering Grid

Mechanical & Environmental

机械

环境

Operating Temperature

工½温度

: -40°C to +105°C

Soldering Process

可焊性

Nylon 6T (Standard

标准物料

)

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 230°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5sec

LCP (Option

可选物料

)

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec

PBT (Option

可选物料

) -

Manual Solder

人工焊接

: 330°C for 3-5 sec.

(Not

suitable for hi-temp process

不适合高温制程

)

Mates with

配套之母座

(Subject to Pin Length

在端子长度适合的条件下

)

BG090 BG095 BG096

BG100

BG110

BG115 BG125 BG126

BG130

BG135

BG205

Perfect Planar Mating with

BG145 BG230

XX X

XXXX

Request Samples

and Quotation

No. of Contacts

02 to 40

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Type

1 = Type A

2 = Type B

Dimension C

(1/100mm) (Post Length)

0600 = 6.00mm

(Standard)

Or specify Custom Post Height

eg. 0250 = 2.50mm

Packing Options

G = Plastic Box

(Standard)

D = Tube

E = Tube with Cap

Insulator Material

N = Nylon 6T

(Standard)

L = LCP

P = PBT

Dimension E

(1/100mm) (Bottom of insultor to Pin Centre)

Type A: 0150 = 1.50mm

(Standard)

Type B: 0480 = 4.80mm

(Standard)

Or specify Dimension E

eg. 0250 = 2.50mm

Electrical

电气

Current Rating

电流额定值

: 3 Amp Per Pin

Contact Resistance

接触电阻值

: 20 mΩ max.

Insulation Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstand Voltage

耐电压

: 600 V AC

Dimension D

(1/100mm) (Tail Length)

0300 = 3.00mm

(Standard)

Or specify Custom Footprint Width

eg. 0250 = 2.50mm

Part Number

Product Description

BG075

Drawing Date

1st November 2006

Detail

Revision

Date

BG075

D PCN

18/04/17

Length

2.54mm Pitch Pin Header, Single Row,

Through-Hole, Horizontal

Tolerances

(Except as Noted)

Angle

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX ± 0.15 X.XX° ± 1°

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

LYH

www.gct.co

Not to

Scale

Sheet No.

1/1
