DATA SHEET

Relays utilising the ‘B’ Type movement are manufactured with four contact

arrangements: i.e. single pole 60 amp, single pole 35 amp bridging make-and-

break, single pole 20 and 30 amp changeover and two-pole 10 amp

changeover.

The movement is balanced and has a high contact pressure combined with a

wiping action for self cleaning. The contacts are of silver cadmium oxide to give

high resistance to welding on overload and high inrush current applications.

The relays are provided with various methods of enclosure: dust cover, sealed

or plug-in form with a socket. For suppressed relays a polarising feature is

incorporated.

Units with dc coils are designed for 28V and are suitable for operation over the

range 16 to 29V. Units with ac coils are designed for 115V 400 Hz supplies and

are proven against line transients of up to 1000V for 10 micro-seconds.

All the relays will function over a temperature range of -65

to +70

C (-85

F to +148

F) and will meet the vibration requirements of

BSG100 Grade 2 and the acceleration requirements of BSG100 Grade 1A.

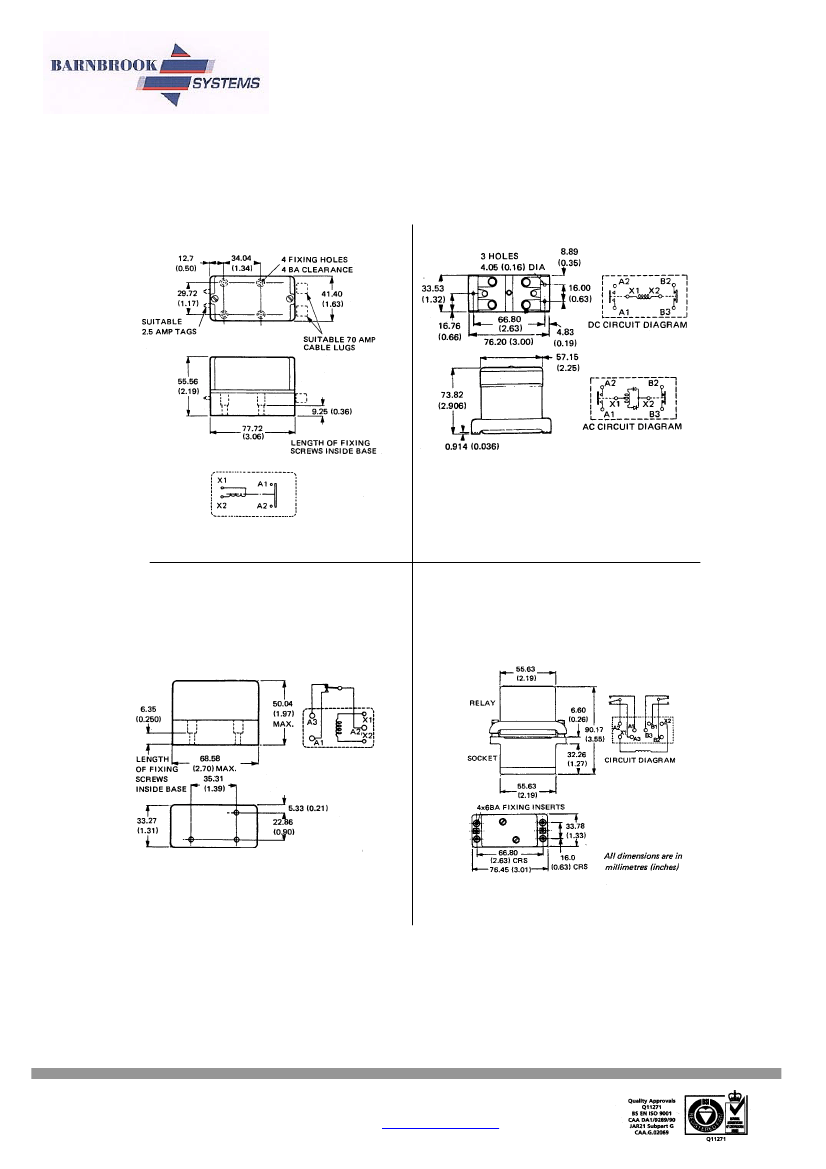

RELAY

Type B

Specifications

60A 1-Bridge-Make

Part No

Coil Operating Voltage

Nominal Contact Voltage

Coil Resistance

Enclosure

Termination

Weight

Part No

Coil Operating Voltage

Nominal Contact Voltage

Coil Resistance

Enclosure

Termination

Weight

7CZ105834

28V dc

165 ohms

Dust Cover

Screw

240g (8.5 oz)

7CZ105962/1

28V dc

28V dc or 200V 400 Hz

165 ohms

Hermetically Sealed

Screw

260g (9.25 oz)

7CZ106517

28V dc

28V dc or 200V 400 Hz

165 ohms

Dust Cover

Screw

174g (6.2 oz)

507/1/00735

28V dc

28V dc or 200V 400 Hz

165 ohms

Dust Cover

Screw

174g (6.2 oz)

507/1/00999

28V dc

165 ohms

Enclosed

Screw

200g (7 oz)

507/1/00036

115V 400Hz

28V dc or 200V 400Hz

1975 ohms

Hermetically Sealed

Screw

260g (9.25 oz)

507/1/00035

115V 400Hz

28V dc or 200V 400 Hz

1650 ohms

Dust Cover

Screw

174g (6.2 oz)

35A 1- Bridge-Make 1- Bridge-Break

30A 1- Changeover

Part No

Coil Operating Voltage

Nominal Contact Voltage

Coil Resistance

Enclosure

Termination

Weight

20A 1- Changeover

Part No

Coil Operating Voltage

Nominal Contact Voltage

Coil Resistance

Enclosure

Termination

Weight

10A 2- Changeover

Part No

7CZ105273/3 (Relay)

7CZ105260 (Socket)

Coil Operating Voltage

28V dc

Nominal Contact Voltage

28V dc

Coil Resistance

230 ohms

Enclosure

Hermetically Sealed

Termination

Plug-in

Weight

Relay & Socket 282g (10 oz)

Design authority and manufacture by Barnbrook Systems Limited

Barnbrook Systems reserves the right to alter specifications and design without notice

Data Sheet No

DSRELB-0805

Sheet 1 of 2

BARNBROOK SYSTEMS LIMITED, 25 FAREHAM PARK ROAD, HAMPSHIRE, PO15 6LD

TEL NO: +44(0)1329 847722 FAX: +44(0)1329 844132 E-mail:

sales@barnbrook.co.uk

www.barnbrook.com
