DVIR-F24SHWNB-L Overview

D Type Connector, 24 Contact(s), Female, 0.075 inch Pitch, Solder Terminal, #4-40

DVIR-F24SHWNB-L Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Guideline	UL
Is it Rohs certified?	Yes
Reach Compliance Code	Compliant
Country Of Origin	Germany
ECCN code	EAR99
Is Samacsys	N
Objectid	308960662
body length	1.48 inch
Terminal length	0.108 inch
body width	0.386 inch
subject depth	0.445 inch
PCB row number	3
Number of rows loaded	3
Terminal pitch	1.905 mm
Contact resistance	30 mΩ
Installation method	RIGHT ANGLE
Installation type	BOARD
Rated current (signal)	1 A
Total number of contacts	24
Contact point gender	FEMALE
insulator material	POLYAMIDE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.075 inch
Plating thickness	3u inch
Termination type	SOLDER
Contact material	COPPER ALLOY
Insulator color	WHITE
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Installation option 1	#4-40
Match contact row spacing	0.075 inch
Installation option 2	RIVET
PCB contact row spacing	1.905 mm
Shell surface	NICKEL
Dielectric withstand voltage	250VAC V
Filter function	YES
Insulation resistance	1000000000 Ω

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel:+49 (0) 5741 23661-0

Fac:+49 (0) 5741 23661-20

Ratioplast-Electronics

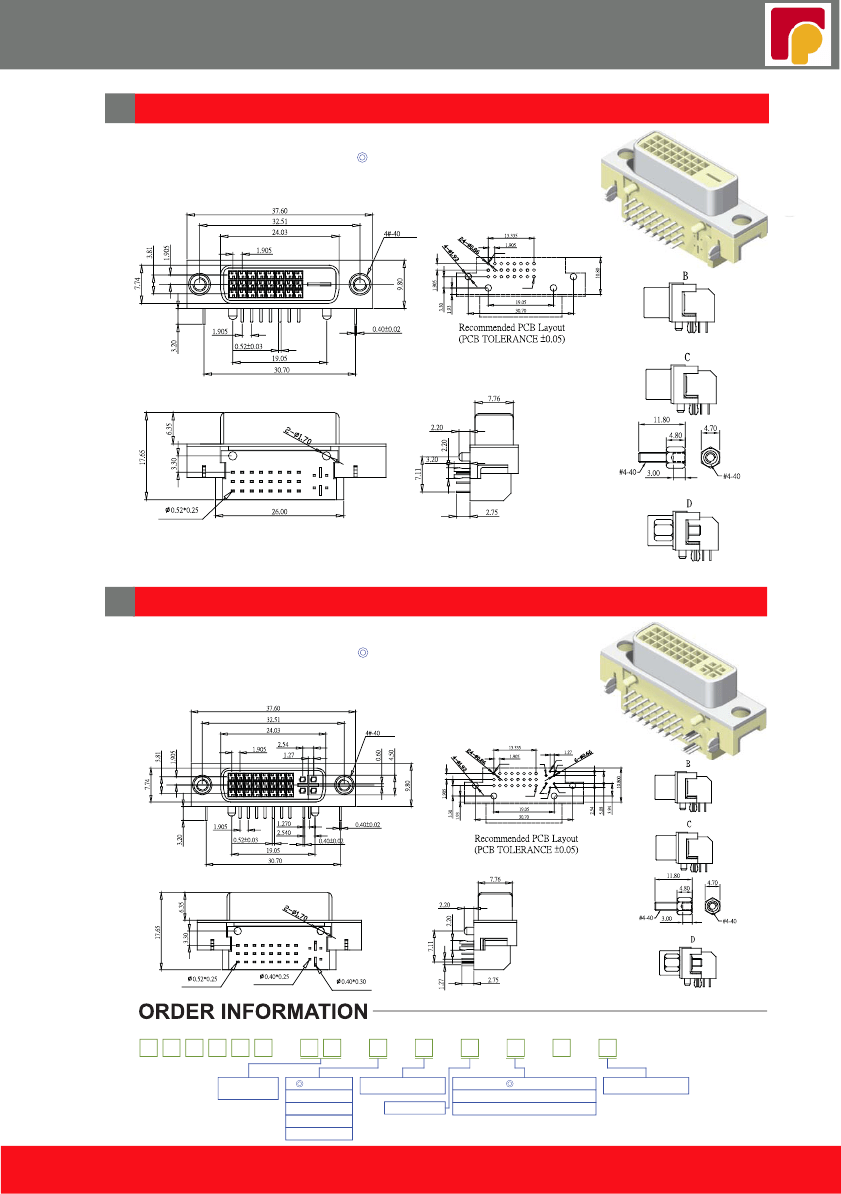

DVI Female Right Angle 24Pin

Specifications

Current Rate:1 AMP

Insulation Resistance:1000M? Min.

Contact Resistance:30m? Max.

Dielectric Voltage:250V AC for one minute

Operation Temperature:-55°C to +85°C

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 66

Terminal:Copper Alloy

Plated:Selective Plated

UNC

CKT1

C K T 24

D IG IT A L C O N T A C T

DVI Female Right Angle 29Pin

Specifications

Current Rate:1 AMP

Insulation Resistance:1000M? Min.

Contact Resistance:30m? Max.

Dielectric Voltage:250V AC for one minute

Operation Temperature:-55°C to +85°C

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 66

Terminal:Copper Alloy

Plated:Selective Plated

UNC

CKT1

C1

C5

C2

C K T 24

C3

C5

C4

D IG IT A L C O N T A C T

A N A LO G C O N T A C T

D V

I R

-

F

X X

S :S elective

S H :S e le ctive 3u"

S A :S e le ctive 5u"

S F :S e le ctive 15u"

S D :S e le ctive 30u"

X

W

N

X

B :R ivet

-

L

L :R oH S + N yio n 66

No. of Contacts

(24,29)

W :W h ite In sulato r

N :N icke l S hell

C :R ivet & Jack Scre w Attached

D :R ivet & Jack Scre w Insert

www.amtek-co.com.tw

www.ratioplast.com
