23-20HTX-16-XP-00 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 23-20HTX-16-XP-00

Preview

23-20HTX-16-XP-00: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size222KB，1 Pages; ManufacturerGSN Electronics

Download Datasheet Parametric View All

23-20HTX-16-XP-00 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

23-20HTX-16-XP-00 Parametric

Parameter Name	Attribute value
Guideline	UL
Objectid	304406729
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
body width	0.217 inch
subject depth	0.344 inch
body length	0.913 inch
Terminal length	0.118 inch
Contact to complete cooperation	AU
Contact point gender	MALE
insulator material	POLYETHYLENE
Installation type	BOARD
PCB row number	2
Terminal pitch	2.0066 mm
Total number of contacts	16
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Installation method	RIGHT ANGLE
Number of rows loaded	2
Rated current (signal)	1 A
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.079 inch
Plating thickness	FLASH inch
Termination type	SOLDER
Contact material	COPPER ALLOY
Number of connectors	ONE
Filter function	NO
Insulation resistance	500000000 Ω
polarization key	POLARIZED HOUSING
Dielectric withstand voltage	500VAC V
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C

Preview

Download Datasheet

View All

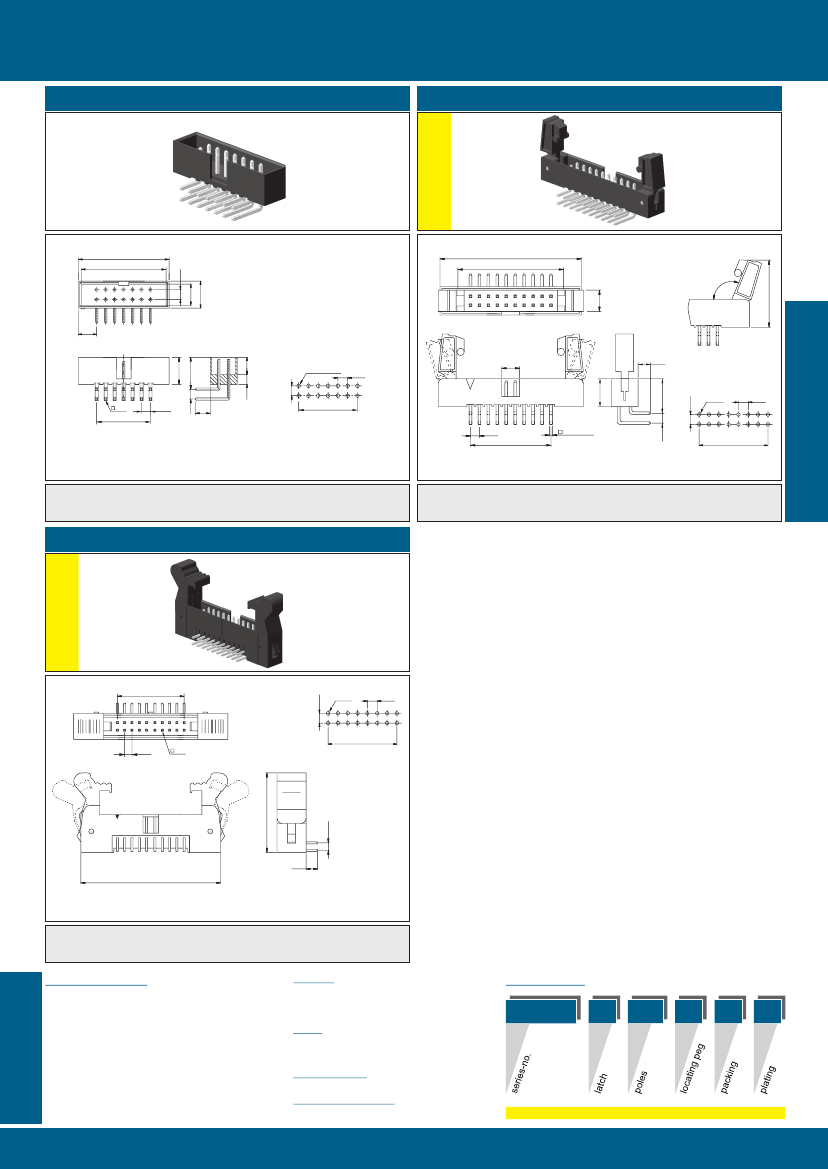

Total Process Quality

23-20HTX

short latch

box header horizontal THT 2.00

23-20HTS

GSN

2.0 x (n/2) +7.2 ±0.2

2.0 x (n/2) +6.1 ±0.2

2.0

2.0 x (n/2) +14.0 ±0.30

2.0 x (n/2) +6.3 ±0.30

11

3°

4.50

5.50

4.40

14.2

4.60

3.90

5.60

4.00

Ø0.85±0.05

2.00±0.05

2.00

3.00

2.0

0.5

2.0x(n/2-1) ±0.1

2.00

3.0

2.0 x (n/2-1)

2.00

2.0 x (n/2 -1)

0.50±0.02

2.00

Ø0.85

2.00

2.0 x (n/2-1)

available pole no.:

06, 08, 10, 12, 14, 16, 20, 22, 24, 26,

30, 32, 34, 36, 40, 44, 50, 60, 64, 68

available pole no.:

20, 26, 40, 44, 50, 68

23-20HTL

long latch

2.00

2.0 x (n/2 -1)

Ø0.85

2.00

2.0 x (n/2-1)

2.00

0.5

17.1

3.15

2.0 x (n/2) +15.7

available pole no.:

10, 12, 14, 16, 20, 22, 24, 26,

30, 32, 34, 40, 44, 50, 68

Shown fotos may differ to final product

Currently valid drawings are only on www.gsn.sg

In case of any doubt, please contact GSN

electrical data

contact material

insulator

flammability

dielectric strength

current rating

insulation resistance

operating temperature

soldering temperature

:

copper alloy

0.50 x 0.50 mm

thermoplastic

UL 94V-0

2.00

plating

00= flash gold

60= selective flash gold

order code

23-20HT

X-

10 -

X

P-

00

latch

: 500V AC

: 1A

: 500 Meg Ohm min

: -40°C to +105°C

: 260°C max / 10 sec

X= without

S= short

L= long

X=without

locating peg

possible packing

P=tray, T=tube

other dimensions / materials are available, please contact us

support@gsn.sg

E06

IDC + box header

6.5

1.70

5.80

8.8
