ROHS COMPLIANT

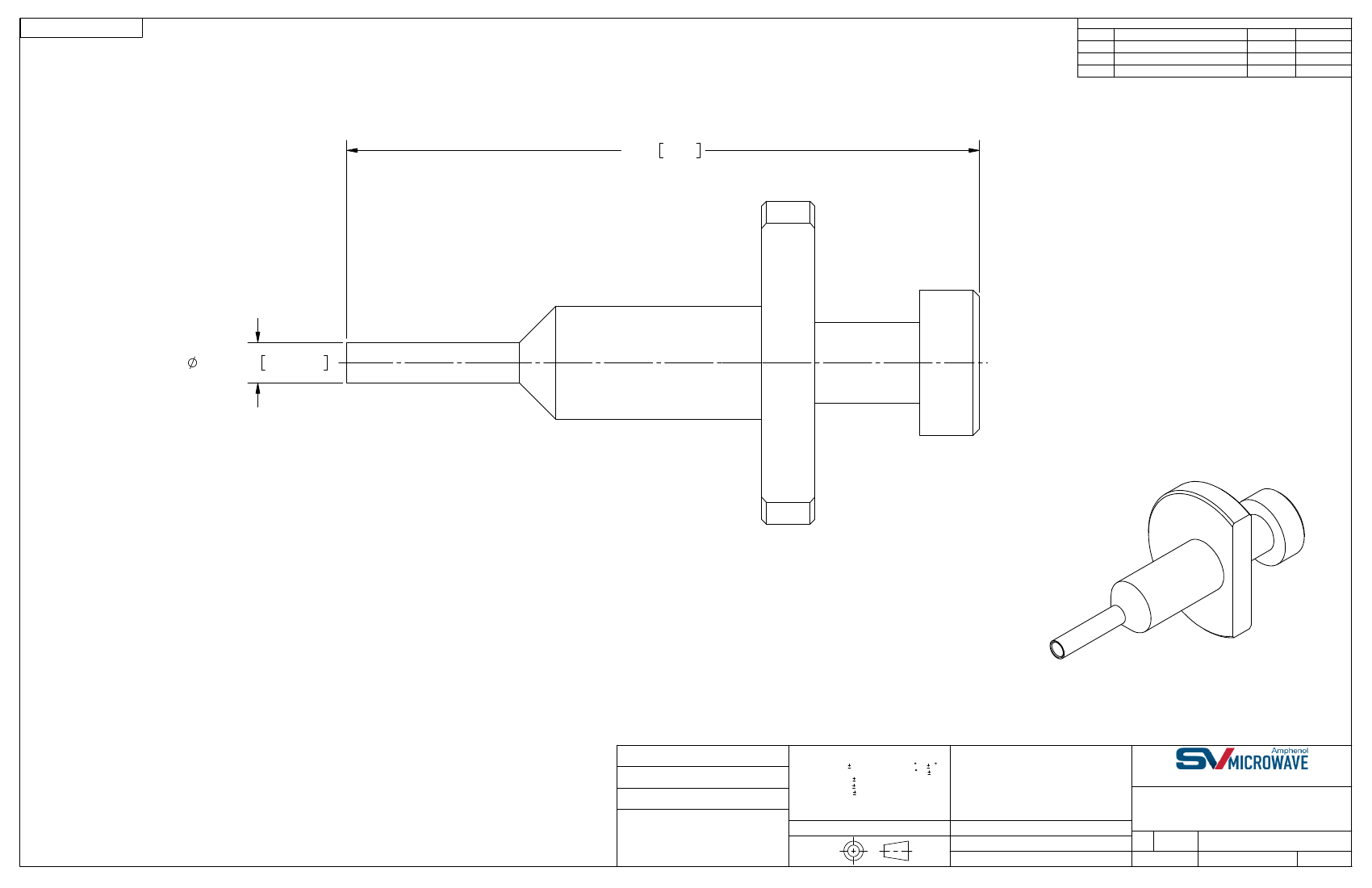

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 49087
06/19
JDT
1.960 49.78
.125±.001 3.18±0.03
MATERIAL:
BODY:
STAINLESS STEEL PER ASTM A630,
ALLOY UNS S17400, CONDITION A.
PUSH ROD &
PLUNGER:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
MUSIC WIRE
NOTES:
1.
2.
MATERIAL:
SPRING:
REMOVAL TOOL FOR 3821-40023 & 3821-40024.
USED ON 67.3 CONTACTS, RESPECTIVELY
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
PUSH ROD &
PLUNGER:
BODY:
FINISH:
PASSIVATED PER AMS-2700.
ELECTROLESS NICKEL PER SAE 2404, CLASS 1
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
SJ 06/03/19
JDT 06/03/19
JDT 06/03/19
SMPS VITA 67.3
CONTACT REMOVAL TOOL
95077
SIZE CAGE CODE DWG. NO.
B
500-38-006
SHEET 1 OF 1
SCALE: 4:1
