HC49U-24.000MHZ-CBF1001 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> HC49U-24.000MHZ-CBF1001

HC49U-24.000MHZ-CBF1001: DescriptionParallel - Fundamental Quartz Crystal, 24MHz Nom, RESISTANCE WELD PACKAGE-2; CategoryPassive components Crystal/resonator; File Size61KB，1 Pages; ManufacturerFOX [Fox Electronics]

Download Datasheet Parametric View All

HC49U-24.000MHZ-CBF1001 Overview

Parallel - Fundamental Quartz Crystal, 24MHz Nom, RESISTANCE WELD PACKAGE-2

HC49U-24.000MHZ-CBF1001 Parametric

Parameter Name	Attribute value
Maker	FOX [Fox Electronics]
package instruction	RESISTANCE WELD PACKAGE-2
Reach Compliance Code	unknown
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1000 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	10 pF
Manufacturer's serial number	HC49U
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	24 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)
Series resistance	20 Ω
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

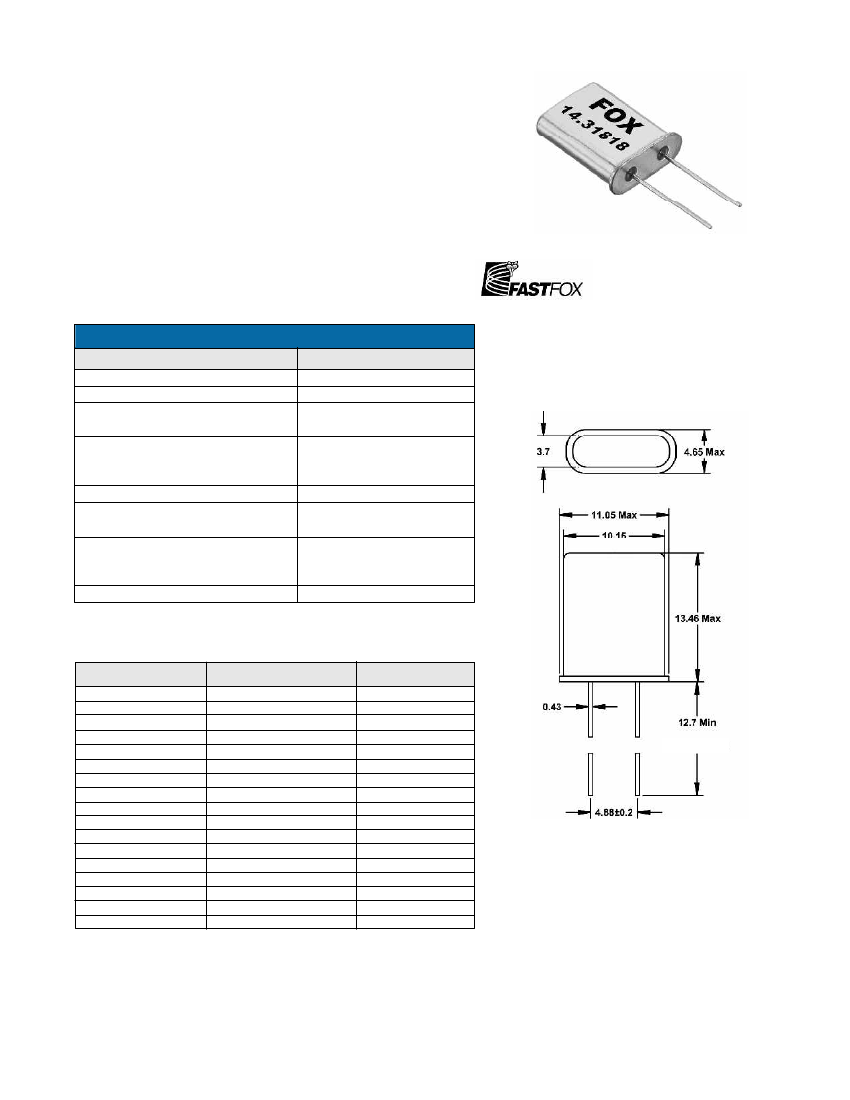

RESISTANCE WELD THRU-HOLE CRYSTAL

HC49U

FEATURES

•

Low Cost

Stocking Standard

High Frequency Range

Fundamental to 40 MHz

Resistance Weld

OPTIONS

•

Tolerances to < 5 PPM

Stabilities to < 3 PPM

Temperatures to -40ºC ~ -85ºC

Mylar Spacer

Vinyl Sleeve

Third Lead

SMD Gullwing (HC49UW)

DISCONTINUED

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance (Co)

Load Capacitance

)

Drive Level

1.8432 ~ 3.000 MHz

3.000+ ~ 180.000 MHz

Aging per year

MAX

(unless otherwise noted)

1.8432 ~ 180.000 MHz

±30 PPM

±50 PPM

-20ºC ~ +70ºC

-40ºC ~ +85ºC

7.0 pF

10 pF ~ Series

(Customer Specified)

2.0 mW

1.0 mW

±5 PPM

Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer

Service for specific requirements.

All specifications subject to change without notice.

Rev.

02/10/03

Frequency Range

(MHz)

1.8432 ~ 2.000

2.000+ ~ 2.400

2.400+ ~ 3.000

3.000+ ~ 3.200

3.200+ ~ 3.700

3.700+ ~ 4.200

4.200+ ~ 4.900

4.900+ ~ 5.000

5.000+ ~ 6.000

6.000+ ~ 8.000

8.000+ ~ 10.000

10.000+ ~ 12.500

12.500+ ~ 16.000

16.000+ ~ 40.000

23.000+ ~ 75.000

60.000 ~ 110.000

110.000 ~ 180.000

Operating Mode

Fundamental

3rd OT

5th OT

7th OT

Max ESR

Ω

750

500

300

200

120

100

120

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +001(239)693-0099 FAX +001(239)693-1554

http://www.foxonline.com
