Bulletin I2041 rev. A 07/05
200HF..L
STANDARD RECOVERY DIODES
"Lead-Free"
Features
Diffused glass passivated die
Standard JEDEC types
Types up to 600V V
RRM
Stud cathode and stud anode version
High surge capability
Very low V
F
Stud Version
200 A
Typical Applications
Welders
Power supplies
Battery chargers
Major Ratings and Characteristics
Parameters
I
F(AV)
@ T
C
I
F(RMS)
I
FSM
@ 50Hz
@ 60Hz
I
2
t
@ 50Hz
@ 60Hz
V
RRM
range
T
J
Values
200
125
314
3570
3740
64
58
400 - 600
-40 to 180
Units
A
°C
A
A
A
KA
2
s
KA
2
s
V
°C
case style
DO-205AC (DO-30)
www.irf.com
1
200HF..L
Bulletin I2041 rev. A 07/05
ELECTRICAL SPECIFICATIONS
Voltage Ratings
Voltage
Type number
200HF
V
RRM
, maximum repetitive
peak reverse voltage
V
400
600
V
RSM
, maximum non-
repetitive peak rev. voltage
V
500
700
I
RRM
max.
@ 180°C
Code
40
60
mA
10
Forward Conduction
Parameter
I
F(AV)
Max. average forward current
@ Case temperature
I
F(RMS)
Max. RMS forward current
I
FSM
Max. peak, one-cycle forward,
non-repetitive surge current
200HF
200
125
314
3570
3740
3000
3140
Units Conditions
A
°C
A
DC @ 115°C case temperature
t = 10ms
A
t = 8.3ms
t = 10ms
t = 8.3ms
t = 10ms
KA
2
s
t = 8.3ms
t = 10ms
t = 8.3ms
KA
2
√s
V
mΩ
V
No voltage
reapplied
100% V
RRM
reapplied
No voltage
reapplied
100% V
RRM
reapplied
Sinusoidal half wave,
Initial T
J
= T
J
max
180° conduction, half sine wave
I
2
t
Maximum I
2
t for fusing
64
58
45
41
I
2
√t
Maximum I
2
√t
for fusing
640
0.73
t = 0.1 to 10ms, no voltage reapplied
(16.7% x
π
x I
F(AV)
< I <
π
x I
F(AV)
), T
J
= T
J
max.
(16.7% x
π
x I
F(AV)
< I <
π
x I
F(AV)
), T
J
= T
J
max.
I
pk
= 628A, T
J
= 25 °C
V
F(TO)1
Low level value of threshold
voltage
r
f1
V
FM
Low level value of forward
Max. forward voltage drop
0.48
1.12
Thermal and Mechanical Specification
Parameter
T
J
T
stg
Max. operating temperature range
Max. storage temperature range
200HF
-40 to 180
-55 to 180
0.25
0.08
11
10
Units
°C
K/W
Conditions
R
thJC
Max. thermal resistance, junction to case
R
thCS
Max. thermal resistance, case to heatsink
T
Max. allowed mounting torque +0 -20%
DC operation
Mounting surface, smooth, flat and greased
Not lubricated threads
Lubricated threads
Nm
g
wt
Approximate weight
Case style
120
DO-205AC(DO-30)
See Outline Table
2
www.irf.com
200HF..L
Bulletin I2041 rev. A 07/05
Maximum Allowable Case Temperature (°C)
180
170
160
150
140
130
120
110
100
0
50
30˚
Maximum Allowable Case Temperature (°C)
200HF..L
RthJC (DC) = 0.25 K/W
180
160
140
120
100
80
0
100
200HF..L
RthJC (DC) = 0.25 K/W
Conduction Angle
Conduction Period
30˚
60˚
90˚
120˚
180˚
DC
60˚
90˚
120˚
180˚
100
150
200
250
200
300
400
Average Forward Current (A)
Fig. 1 - Current Ratings Characteristics
Maximum Average Forward Power Loss (W)
Maximum Average Forward Power Loss (W)
Average Forward Current (A)
Fig. 2 - Current Ratings Characteristics
250
200
150
100
50
0
0
50
100
150
200
Average Forward Current (A)
Fig. 3 - Forward Power Loss Characteristics
Conduction Angle
300
250
200
150
180˚
120˚
90˚
60˚
30˚
RMS Limit
DC
180˚
120˚
90˚
60˚
30˚
RMS Limit
100
50
0
0
50
Conduction Period
200HF..L
Tj = 180˚C
200HF..L
Tj = 180˚C
100 150 200 250 300 350
Average Forward Current (A)
Fig. 4 - Forward Power Loss Characteristics
Peak Half Sine Wave On-state Current (A)
Peak Half Sine Wave Forward Current (A)
3500
3000
2500
2000
1500
1000
At Any Rated Load Condition And With
Rated Vrrm Applied Following Surge.
Initial Tj = 180˚C
@ 60 Hz 0.0083 s
@ 50 Hz 0.0100 s
4000
Maximum Non Repetitive Surge Current
Versus Pulse Train Duration.
3500
Initial Tj = 180˚C
No Voltage Reapplied
3000
Rated Vrrm Reapplied
2500
2000
1500
1000
200HF..L
200HF..L
500
1
10
100
Number Of Equal Amplitude Half Cycle Current Pulses (N)
500
0.01
0.1
1
10
Pulse Train Duration(s)
Fig. 6 - Maximum Non-Repetitive Surge Current
Fig. 5 - Maximum Non-Repetitive Surge Current
www.irf.com
3
200HF..L
Bulletin I2041 rev. A 07/05
Instantaneous Forward Current (A)
10000
200HF..L
1000
Tj = 180˚C
Tj = 25˚C
100
0.7
0.9 1.1 1.3 1.5 1.7 1.9
Instantaneous Forward Voltage (V)
Fig. 7 - Forward Voltage Drop Characteristics
Transient Thermal Impedance Z
thJC
(K/W)
1
Steady State Value
RthJC = 0.25 K/W
(DC Operation)
0.1
0.01
200HF..L
0.001
0.0001
0.001
0.01
0.1
1
10
100
Square Wave Pulse Duration (s)
Fig. 8 - Thermal Impedance Z
thJC
Characteristic
4
www.irf.com
200HF..L
Bulletin I2041 rev. A 07/05

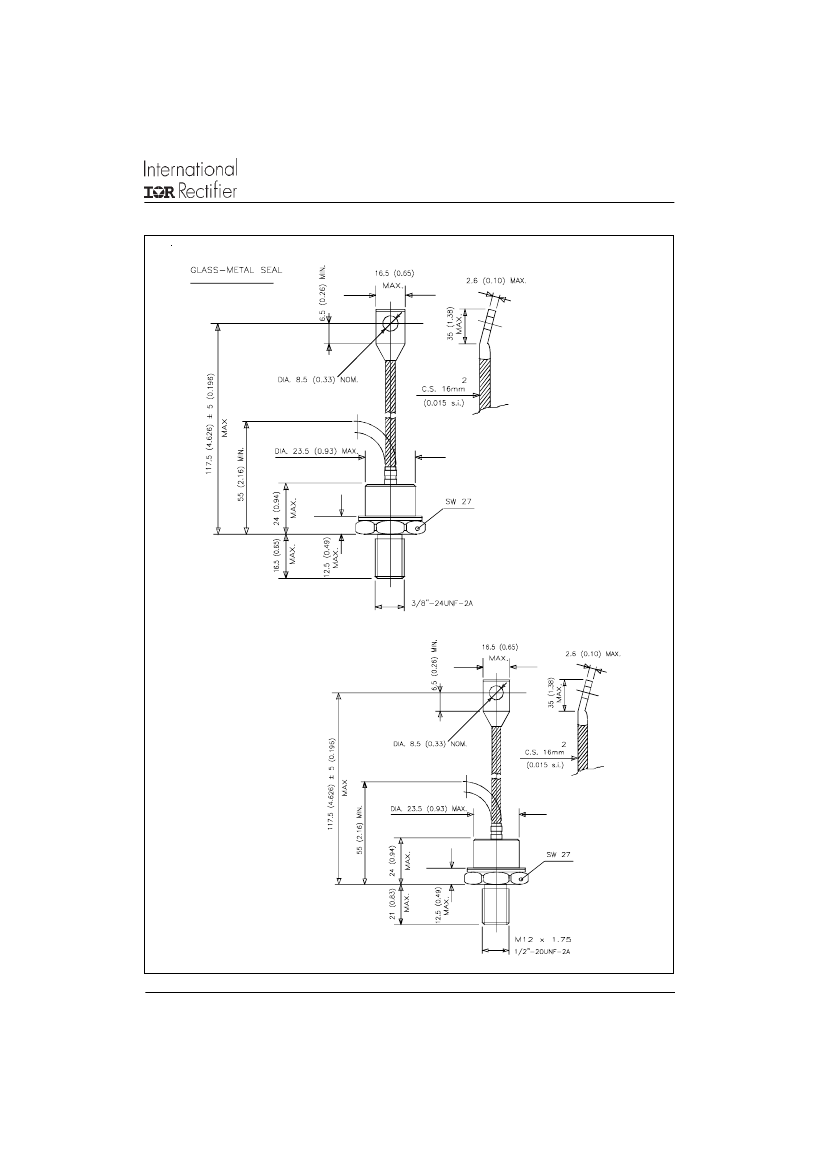

Outlines Table
Conforms to JEDEC DO-205AC (DO-30)
All dimensions in millimeters (inches)
www.irf.com
5
