380271206 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 380271206

380271206: DescriptionMulti Switch, DPDT, Latched, Screw Terminal, Panel Mount,; CategoryMechanical and electronic products switch; File Size155KB，6 Pages; ManufacturerSwitchcraft

Download Datasheet Parametric View All

380271206 Overview

Multi Switch, DPDT, Latched, Screw Terminal, Panel Mount,

380271206 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	38000
Installation features	PANEL MOUNT
surface mount	NO
Switch action	LATCHED
switch function	DPDT
Switch type	MULTI SWITCH
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

Switchcraft

Page 1 of 6

Return to Index

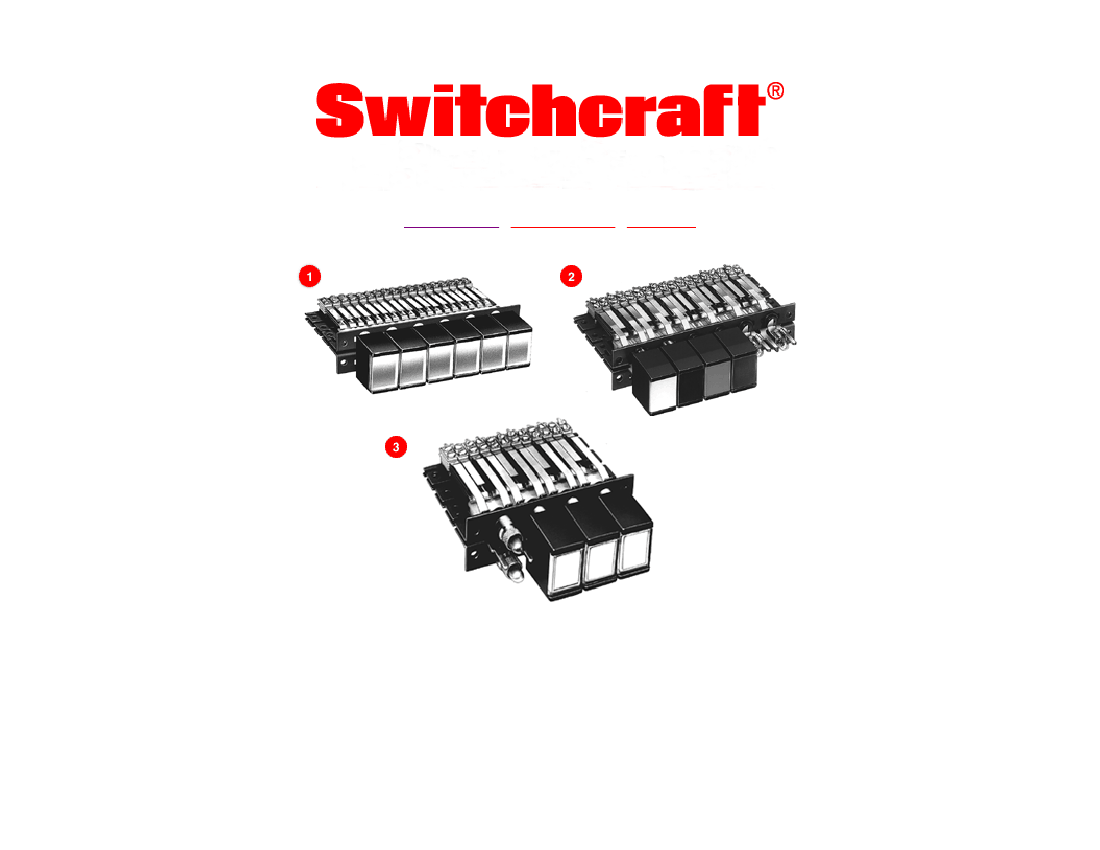

MULTIPLE STATION SWITCHES

LITTEL® MULTI-SWITCHES SERIES 36000, 37000, 38000

SERIES 36000 - NON-ILLUMINATED

SERIES 37000 - SINGLE LAMP

SERIES 38000 - TWIN LAMPS

http://www.switchcraft.com/products/switch-312.html

12/14/2007

Switchcraft

Page 2 of 6

click here to download a schematic drawing

(you will need to have Adobe Acrobat installed on your system to do this)

SERIES 36000

Identical to Series 37000, except non-illuminated. Pushbuttons match Series 37000 and 38000 Switching

up to 6PDT.

SERIES 37000

Same as Series 35000, but features large, rectangular face pushbuttons, illuminated by one lamp and having large legend area.

Switching is up to 4PDT. Switch stations are on .625 inch (15.88 mm) centers, and depth behind panel is 2.313 inches (58.75

mm). Black pushbutton housings have white translucent inserts, white legend insert, two support inserts, and tranparent display

screen. Other pushbuttons and combinations are possible; see pages 314 and 324.

On 2-C per station switches, each station includes two, 83P switch stacks and one H83P lighting stack, and one convenience

lighting spring. Contact ratings: 2A, 200W maximum AC non-inductive load.

On 4-C per station switches, each station has 4, 83P switch stacks, one H83P lighting stack, and one convenience lighting spring.

"L" and "M" lighting arrangements can be effected by wiring directly to the H83P and H lighting stacks.

Each switch station uses an industry standard T 1 3/4 lamp (not supplied). Special features such as ganged assemblies, solenoid

release, and T-1 lamp adapter are available; contact Switchcraft. See page 314 for special effects display screen and inserts.

SERIES 38000

Similar to Series 37000,

except features twin lamp illumination at each station for redundant or 2-color, split-face (alternate)

lighting.

On 2-C per station switches, each station includes 3, H83P lighting switch stacks and 1 lighting spring. This provides up to 3PDT

circuitry (1 pole is needed for lighting lamps; lamps not supplied). Contact ratings: 2A, 200W maximum AC non-inductive load.

On 4-C per station switches, each station has three, H83P, two, 83P switching stacks and one lighting spring. This offers 5PDT

circuitry (1 pole is required for lighting lamps). two, T 1-3/4 lamps per station are used (lamps are not supplied). Ganged

http://www.switchcraft.com/products/switch-312.html

12/14/2007
