Extract from the online
catalog
VIP-CAB-FLK26-0,14/...
Order No.: 2318693

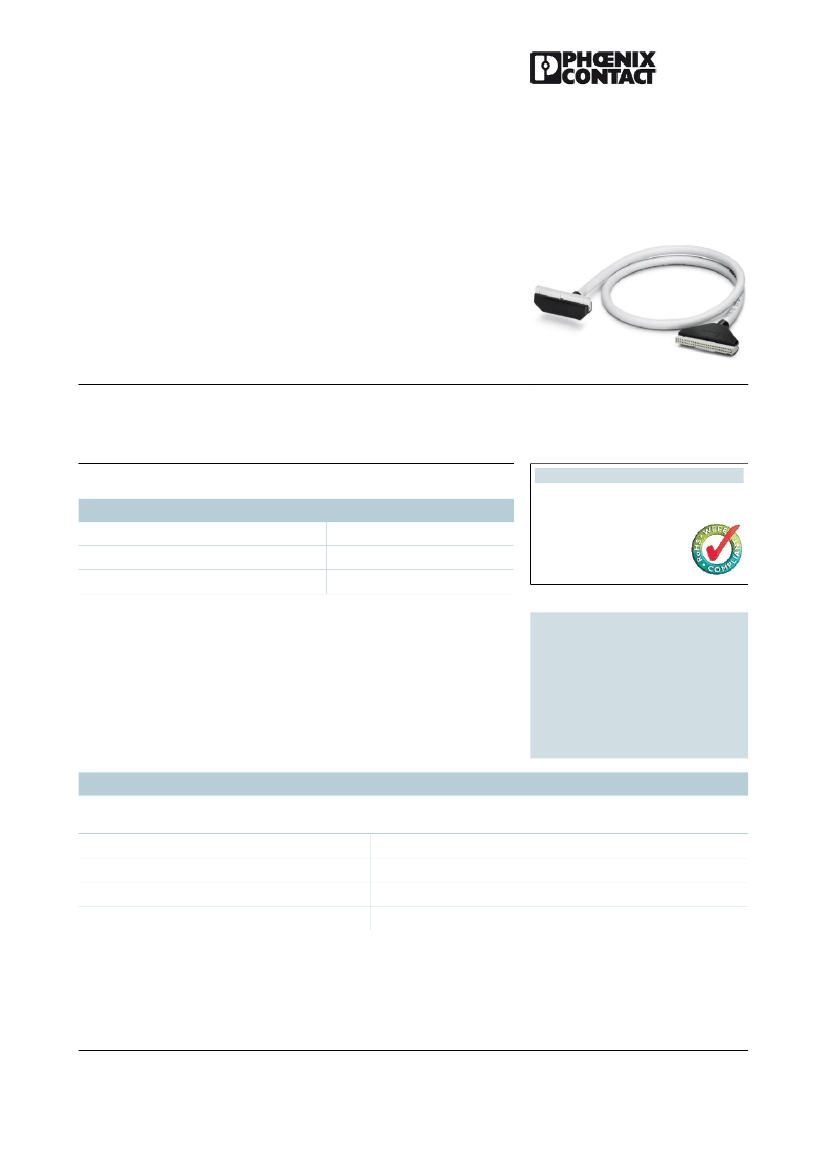

The figure shows the 50-pos. product version
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2318693
Assembled round cable with two molded 26-pos. socket strips (1:1
connection). The cable has a 90° punched on connector and a 180°
punched on connector, cable length: Variable
Product notes
Commercial data
Pack
Customs tariff
Catalog page information
1 pcs.
85444290
Page 259 (IF-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Nominal voltage U
N
< 50 V AC
60 V DC
Max. current carrying capacity per path
Max. conductor resistance
1A
0.16 Ω/m
WEEE/RoHS-compliant since:
03/20/2008
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 3
Jul 12, 2009
VIP-CAB-FLK26-0,14/...
Order No.: 2318693
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2318693
Ambient temperature (operation)
Ambient temperature (storage/transport)
Number of positions
Number of positions, control side
Number of connectors, control side
Number of positions, module side
Number of connectors, modul side
Single wire, cross section
AWG
Conductor construction: Number of litz wires:
Single wire, material
External diameter
Cable, preassembly
Shielding
Width
Length

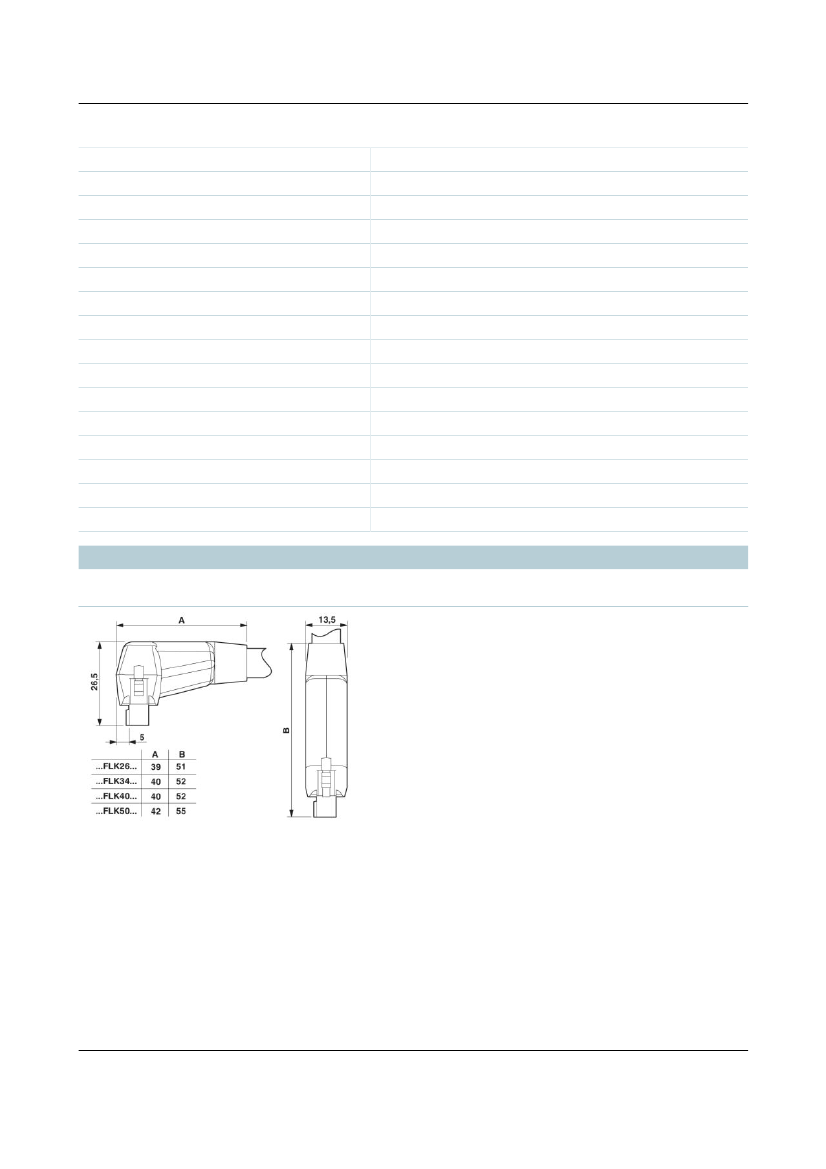

Drawings
Dimensioned drawing
-20 °C ... 50 °C
-20 °C ... 70 °C
26
26
1
26
1
0.14 mm²
26
7
Cu tin-plated
8.3 mm
Insulation displacement, IEC 60352-4/DIN EN 60352-4
no
46.3 mm
40 mm
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 2 / 3
Jul 12, 2009
VIP-CAB-FLK26-0,14/...
Order No.: 2318693
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2318693
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2009 Phoenix Contact
Technical modifications reserved;
