TPSB684K050R4000 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> TPSB684K050R4000

TPSB684K050R4000: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 0.68uF, 1411; CategoryPassive components capacitor; File Size292KB，17 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

TPSB684K050R4000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TPSB684K050R4000	-	-	View	Buy Now

TPSB684K050R4000 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 0.68uF, 1411

TPSB684K050R4000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1316405156
package instruction	, 1411
Reach Compliance Code	compliant
Country Of Origin	Czechia, El Salvador
ECCN code	EAR99
Factory Lead Time	23 weeks
YTEOL	7.8
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance	0.68 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	4000 mΩ
high	1.9 mm
JESD-609 code	e3
leakage current	0.0005 mA
length	3.5 mm
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, PLASTIC, 7 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
ripple current	58 mA
size code	1210
surface mount	YES
Delta tangent	0.04
Terminal surface	Tin (Sn)
Terminal shape	J BEND
width	2.8 mm

Preview

Download Datasheet

View All

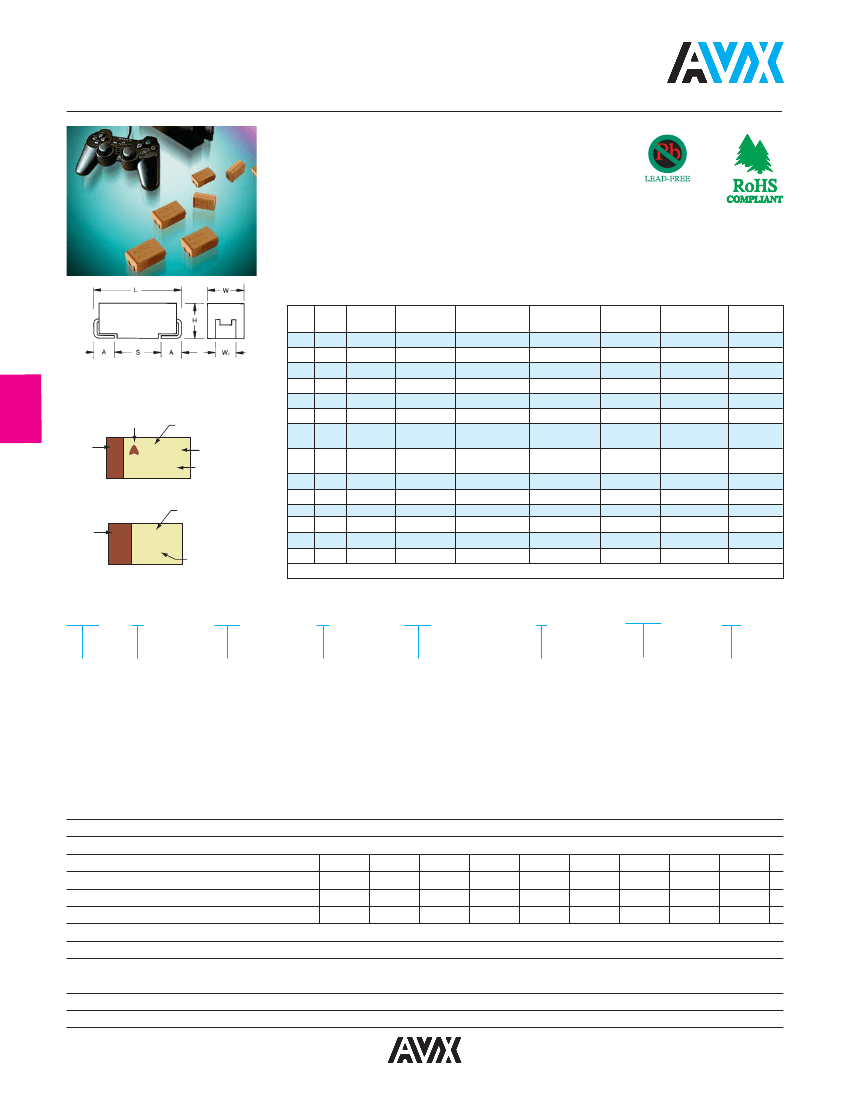

TPS Series

Low ESR

FEATURES

•

Low ESR series of robust Mn0

solid electrolyte capacitors

CV range: 0.15-1500μF / 2.5-50V

LEAD-FREE COMPATIBLE

14 case sizes available

COMPONENT

Power supply applications

APPLICATIONS

• General medium power DC/DC convertors

SnPb termination option is not

RoHS compliant.

CASE DIMENSIONS:

millimeters (inches)

Code

EIA

Code

1206

1210

2312

2917

2312

0805

1206

1210

2924

2312

2917

EIA

Metric

3216-18

3528-21

6032-28

7343-31

7343-43

6032-20

2012-15

2012-12

3216-12

3528-12

7361-38

6032-15

7343-15

7343-20

L±0.20

(0.008)

3.20 (0.126)

3.50 (0.138)

6.00 (0.236)

7.30 (0.287)

6.00 (0.236)

2.05 (0.081)

3.20 (0.126)

3.50 (0.138)

7.30 (0.287)

6.00 (0.236)

7.30 (0.287)

W+0.20 (0.008)

-0.10 (0.004)

1.60 (0.063)

2.80 (0.110)

3.20 (0.126)

4.30 (0.169)

3.20 (0.126)

1.35 (0.053)

1.30 (0.051)

1.60 (0.063)

2.80 (0.110)

6.10 (0.240)

3.20 (0.126)

4.30 (0.169)

H+0.20 (0.008)

-0.10 (0.004)

1.60 (0.063)

1.90 (0.075)

2.60 (0.102)

2.90 (0.114)

4.10 (0.162)

2.00 (0.079) max.

±0.20

(0.008)

1.20 (0.047)

2.20 (0.087)

2.40 (0.094)

2.20 (0.087)

A+0.30 (0.012)

-0.20 (0.008)

0.80 (0.031)

1.30 (0.051)

0.50 (0.020)

0.80 (0.031)

1.30 (0.051)

S Min.

1.10 (0.043)

1.40 (0.055)

2.90 (0.114)

4.40 (0.173)

2.90 (0.114)

0.85 (0.033)

1.10 (0.043)

1.40 (0.055)

4.40 (0.173)

2.90 (0.114)

4.40 (0.173)

MARKING

A, B, C, D, E, F, S, T, V, W,

X, Y CASE

AVX LOGO

Capacitance Value in pF

227 = 220µF

Rated Voltage Code

A = 10V

ID Code

Polarity

Band

(Anode+)

227 A

XXXXX

1.00 ±0.10

1.50 (0.059) max. (0.039 ±0.004)

1.20 (0.047) max.

3.55 (0.140)

1.50 (0.059) max.

2.00 (0.079) max.

1.00 ±0.10

(0.039 ±0.004)

1.20 (0.047)

2.20 (0.087)

3.10 (0.120)

2.20 (0.087)

2.40 (0.094)

P, R CASE

Capacitance Value in pF

106 = 10µF

Polarity

Band

(Anode+)

106

Rated Voltage Code

J = 6.3V

W1 dimension applies to the termination width for A dimensional area only.

HOW TO ORDER

TPS

107

Type

Case Size

See table

above

Capacitance Code

pF code: 1st two

digits represent

significant figures,

3rd digit represents

multiplier (number of

zeros to follow)

010

0100

—

Tolerance

K = ±10%

M = ±20%

Rated DC Voltage

002 = 2.5Vdc

004 = 4Vdc

006 = 6.3Vdc

010 = 10Vdc

016 = 16Vdc

020 = 20Vdc

025 = 25Vdc

035 = 35Vdc

050 = 50Vdc

Packaging

R = Pure Tin 7" Reel

S = Pure Tin 13" Reel

A = Gold Plating 7" Reel

B = Gold Plating 13" Reel

H = Tin Lead 7" Reel

(Contact Manufacturer)

ESR in mΩ

Additional

characters may be

added for special

requirements

V = Dry pack Option

(selected codes only)

K = Tin Lead 13" Reel

(Contact Manufacturer)

H, K = Non RoHS

TECHNICAL SPECIFICATIONS

Technical Data:

Capacitance Range:

Capacitance Tolerance:

Rated Voltage (V

)

Category Voltage (V

)

Surge Voltage (V

)

Surge Voltage (V

)

Temperature Range:

Environmental Classification:

Reliability:

Termination Finished:

All technical data relate to an ambient temperature of +25°C

0.15 μF to 1500 μF

±10%; ±20%

2.5

6.3

1.7

2.7

3.3

5.2

2.2

3.4

-55°C to +125°C

55/125/56 (IEC 68-2)

1% per 1000 hours at 85°C, V

with 0.1Ω/V series impedance,

60% confidence level

Sn Plating (standard), Gold and SnPb Plating upon request

For AEC-Q200 availability, please contact AVX

+85°C:

+125°C:

+85°C:

+125°C:

■

MAY 2014
