TC55V4400FT-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> TC55V4400FT-15

TC55V4400FT-15: Description4.194,304-WORD BY 4-BIT CMOS STATIC RAM; Categorystorage storage; File Size342KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC55V4400FT-15 Overview

4.194,304-WORD BY 4-BIT CMOS STATIC RAM

TC55V4400FT-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TSOP2
package instruction	TSOP2, TSOP54,.46,32
Contacts	54
Reach Compliance Code	unknow
ECCN code	3A991.B.2.A
Maximum access time	15 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G54
JESD-609 code	e0
length	22.22 mm
memory density	16777216 bi
Memory IC Type	CACHE SRAM
memory width	4
Number of functions	1
Number of terminals	54
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP54,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum standby current	0.004 A
Minimum standby current	3 V
Maximum slew rate	0.36 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	10.16 mm
Base Number Matches	1

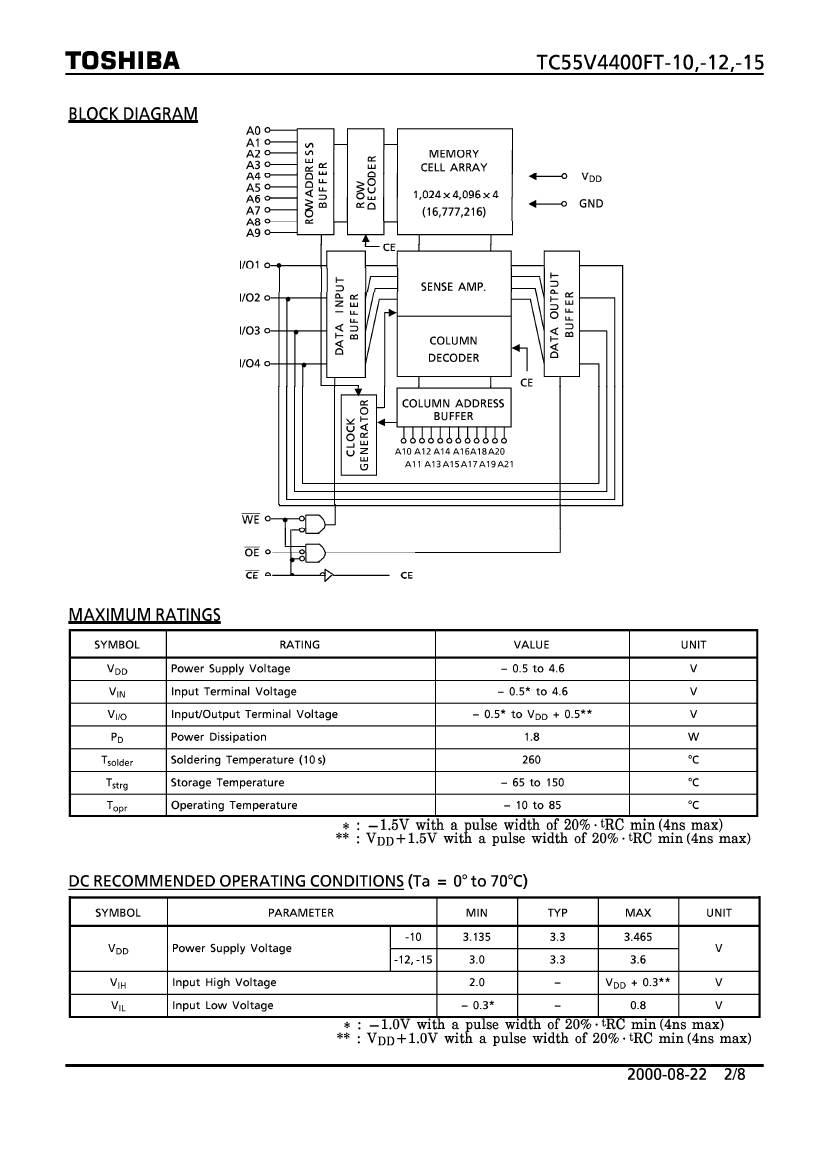

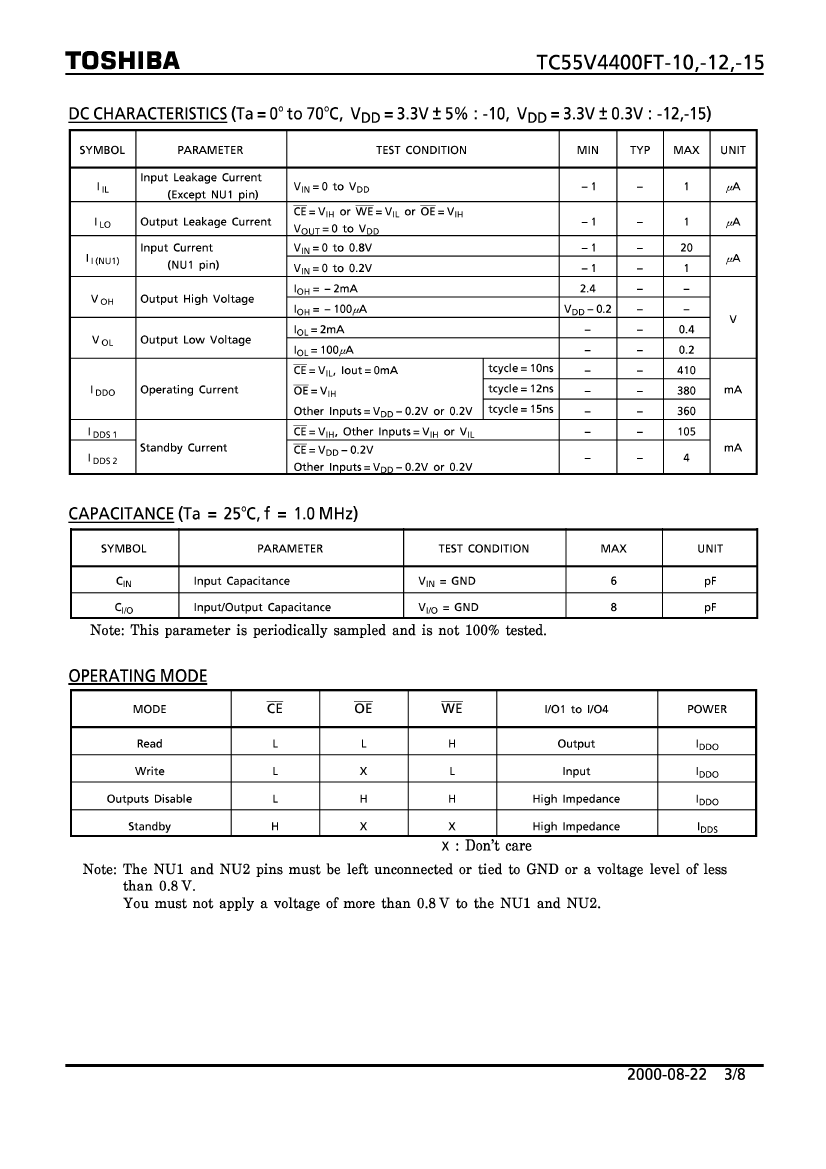

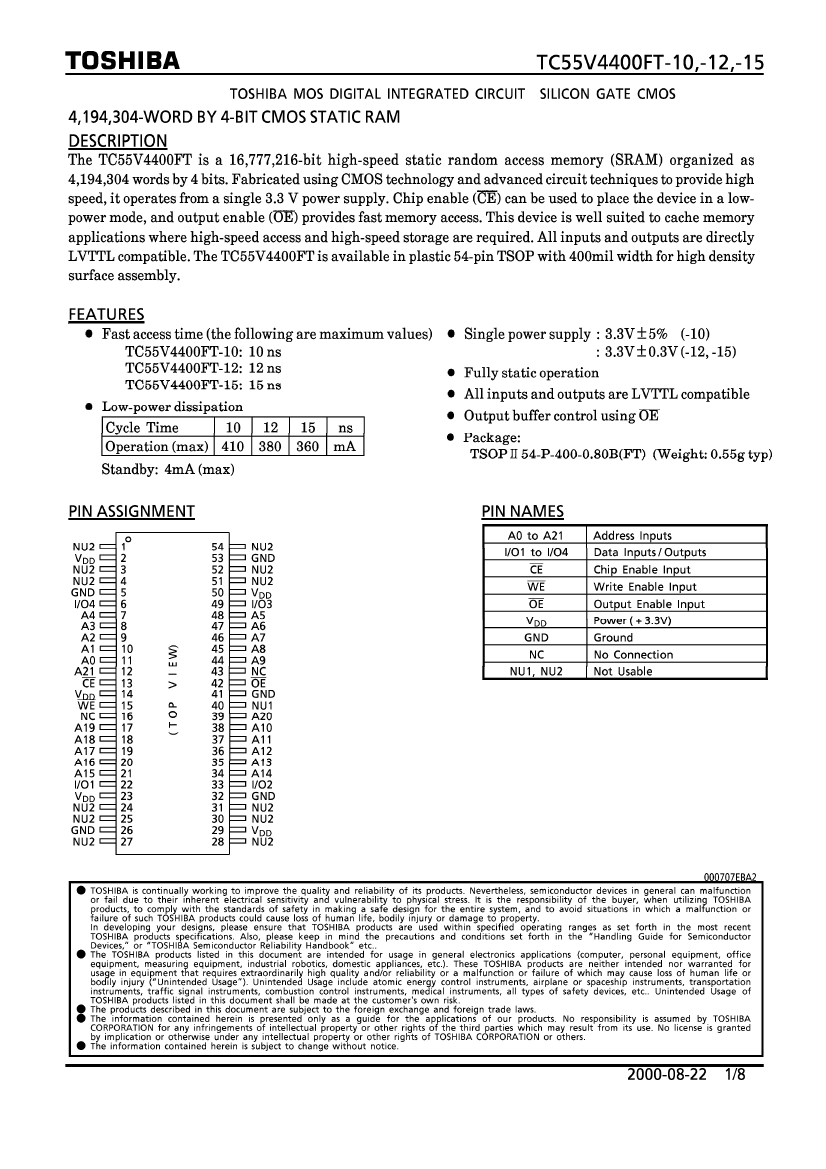

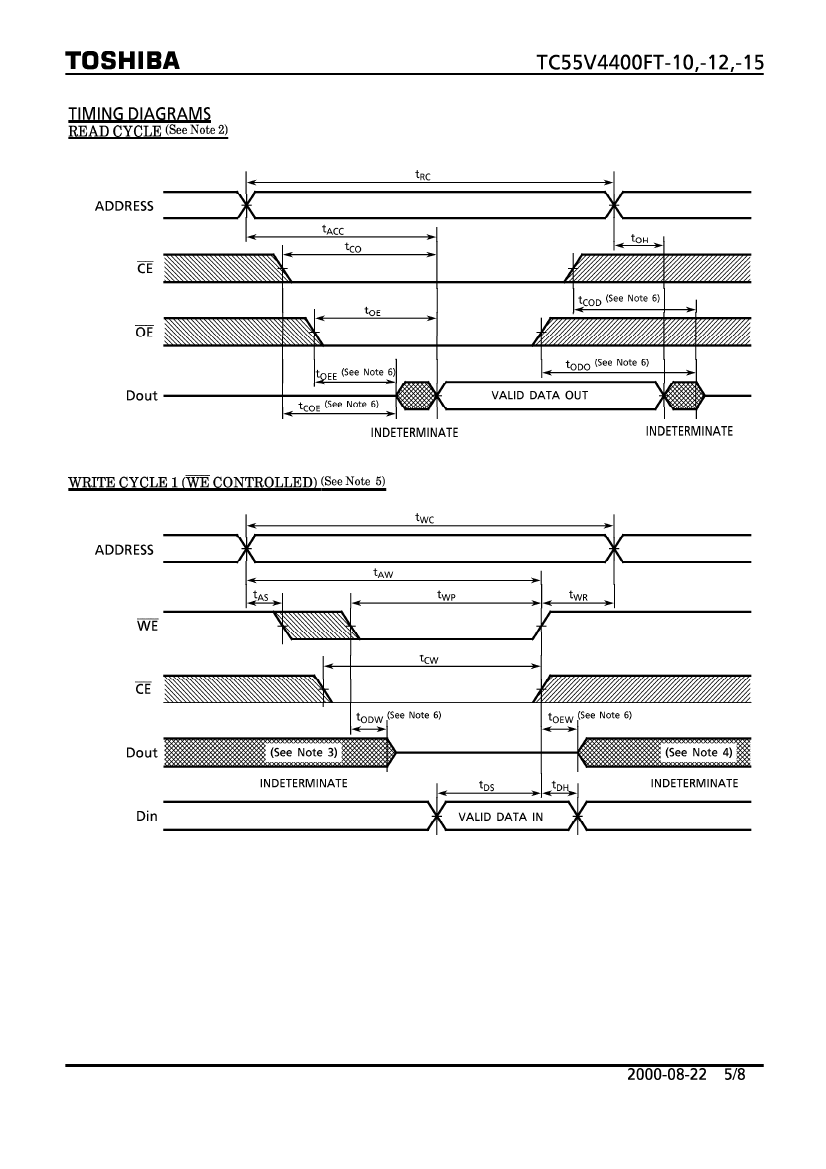

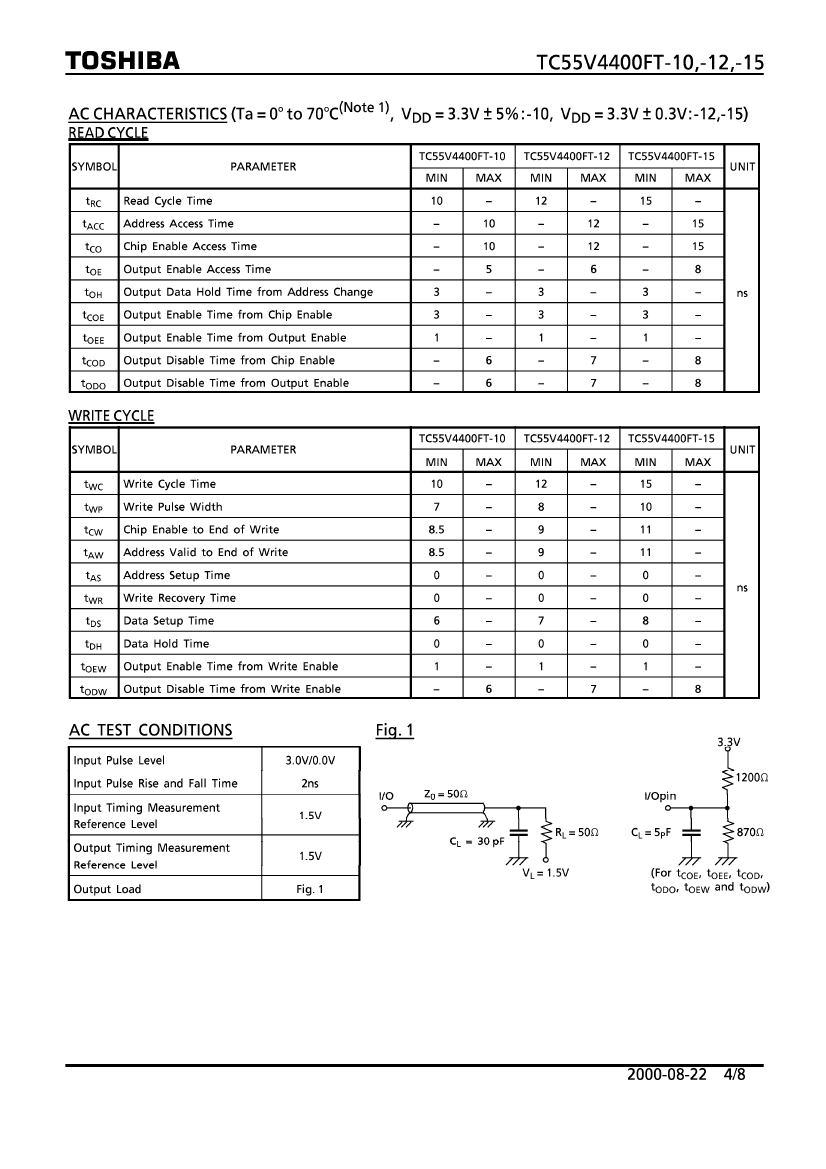

Preview

Download Datasheet

View All

TC55V4400FT-15 Related Products

	TC55V4400FT-15	TC55V4400FT-12	TC55V4400FT-10
Description	4.194,304-WORD BY 4-BIT CMOS STATIC RAM	4.194,304-WORD BY 4-BIT CMOS STATIC RAM	4.194,304-WORD BY 4-BIT CMOS STATIC RAM
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	TSOP2	TSOP2	TSOP2
package instruction	TSOP2, TSOP54,.46,32	TSOP2, TSOP54,.46,32	TSOP2, TSOP54,.46,32
Contacts	54	54	54
Reach Compliance Code	unknow	unknow	unknow
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	15 ns	12 ns	10 ns
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54
JESD-609 code	e0	e0	e0
length	22.22 mm	22.22 mm	22.22 mm
memory density	16777216 bi	16777216 bi	16777216 bi
Memory IC Type	CACHE SRAM	CACHE SRAM	CACHE SRAM
memory width	4	4	4
Number of functions	1	1	1
Number of terminals	54	54	54
word count	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	4MX4	4MX4	4MX4
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2
Encapsulate equivalent code	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
power supply	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm
Maximum standby current	0.004 A	0.004 A	0.004 A
Minimum standby current	3 V	3 V	3.14 V
Maximum slew rate	0.36 mA	0.38 mA	0.41 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.465 V
Minimum supply voltage (Vsup)	3 V	3 V	3.135 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm
Base Number Matches	1	-	1
