NTHC083SK223JTR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> NTHC083SK223JTR

Preview

NTHC083SK223JTR: DescriptionRESISTOR, TEMPERATURE DEPENDENT, NTC, 22000ohm, SURFACE MOUNT; CategoryPassive components The resistor; File Size170KB，3 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

NTHC083SK223JTR Overview

RESISTOR, TEMPERATURE DEPENDENT, NTC, 22000ohm, SURFACE MOUNT

NTHC083SK223JTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-609 code	e0
Manufacturer's serial number	NTHC08
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH
Rated power dissipation(P)	0.5 W
resistance	22000 Ω
Resistor type	NTC RESISTOR
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL
Terminal shape	WRAPAROUND
Thermal sensitivity index	3750 K
Thermistor Applications	TEMPERATURE SENSING
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

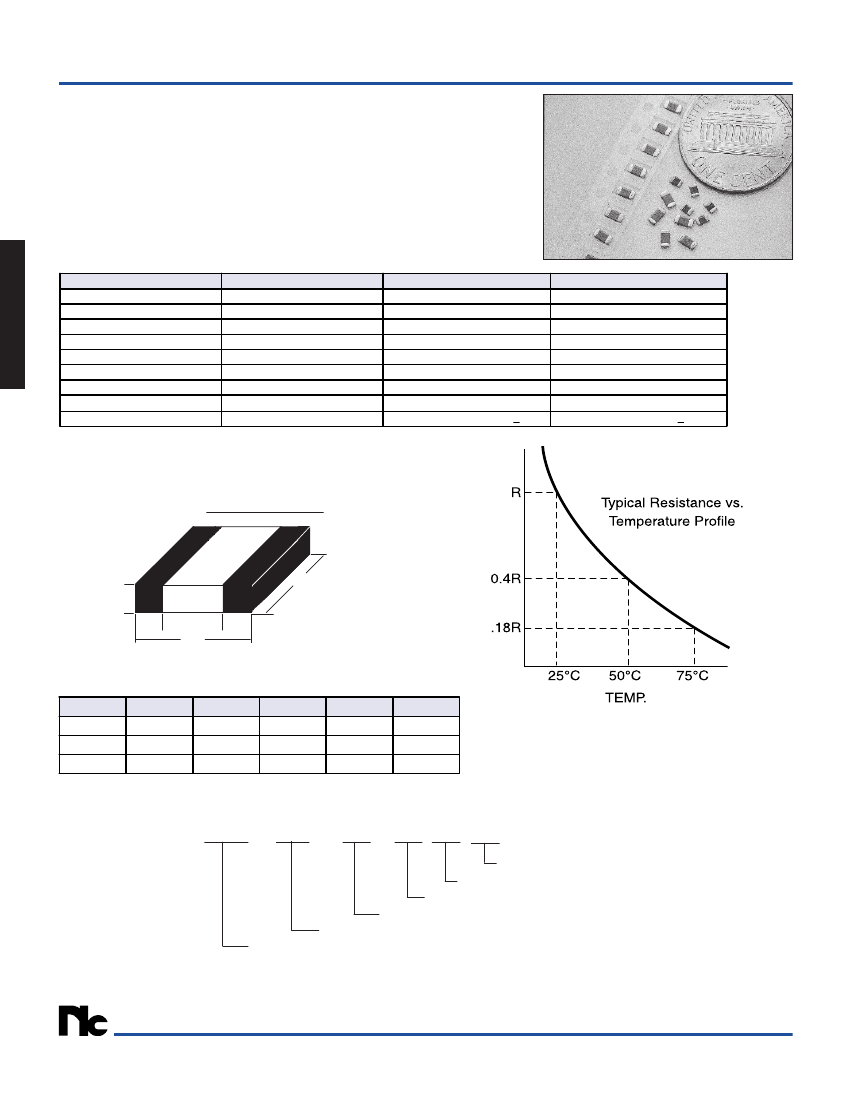

Surface Mount NTC Thermistors

FEATURES

• NEGATIVE TEMPERATURE COEFFICIENT

• FAST RESPONSE TO TEMPERATURE VARIATIONS MAKE THEM

IDEALLY SUITED FOR TEMPERATURE SENSORS AND COMPENSATORS

• STANDARD EIA 0402, 0603 AND 0805 SIZES

• NICKEL BARRIER SOLDER PLATE TERMINATIONS

• TAPE AND REEL FOR AUTOMATIC MOUNTING

NTHC Series

SURFACE MOUNT

CHARACTERISTICS

S erie s

E IA S ize

R e sista n ce R a ng e (+ 2 5 C )*

R e sista n ce To le ran ce (+ 2 5 C )*

O p era tin g Tem p e ra tu re R a n ge

S to ra ge Te m pe ra tu re R a n g e

M a xim u m Pow e r R a tin g **

D issip atio n C o n sta n t

B eta Va lu e R a n ge (+ 2 5

o

C ~ + 50

o

C )

B eta Va lue To le ra n ce

o

NTHC04

0 40 2

1 00 0 O h m ~ 2 M e gO h m

(K ) ± 10 % S td ., (J) ± 5 % O pt.

-4 0 C ~ +1 2 5 C

-4 0

o

C ~ +1 2 5

o

C

2 40 m W

2 .4 m W / C

3 11 0 ~ 4 9 50

(H ) ± 3%

o

NTHC06

0 60 3

3 0 O hm ~ 1 50 KO hm

(K ) ± 10 % S td ., (J) ± 5 % O pt.

-4 0 C ~ +1 2 5 C

-4 0

o

C ~ +1 2 5

o

C

3 00 m W

3 .0 m W / C

2 15 0 ~ 4 1 00

o

NTHC08

0 80 5

4 0 O hm ~ 2 M eg O h m

(K ) ± 10 % S td ., (J) ± 5 % O p t.***

-4 0

o

C ~ +1 2 5

o

C

-4 0

o

C ~ +1 2 5

o

C

5 00 m W

5 .0 m W /

o

C

2 30 0 ~ 5 0 00

(J) ± 5% , (H ) ± 3 % (va lu e s > 1 00

Ω

) (J) ± 5 % , (H ) ± 3 % (valu es > 1 00

Ω

)***

* -See Standard Products Table.

**-Test Method per JIS-C2571.

***-Special (F)

±1%

Tolerance Available, Contact NIC For Details.

Terminations:

Solder Plate Over

Terminations:

Nickel Barrier

Ag Base + Ni Barrier + Solder

Plating

¦

W

¦

T

¦¦

¦

L

1

L

¦

DIMENSIONS (mm)

Series

NTHC04

NTHC06

NTHC08

EIA Size

0402

0603

0805

L

1.0 ± 0.15

1.6 ± 0.15

2.0 ± 0.20

W

0.50 ± 0.10

0.80 ± 0.15

1.25 ± 0.20

T

max.

0.55

0.95

1.25

L

1 min.

0.2

0.3

0.4

NIC’s Application Bulletin #NTHC-002, Contains Resistance Over Temperature Information. Contact NIC Or download informa-

tion at www.niccomp.com.

PART NUMBERING SYSTEM

NTHC08

3H

J

103

K

TR

Packaging, TR: Tape Reel

Resistance Tolerance: K=±10%, J=±5%

Resistance Value Code (See 3 digit codes on Standard Products Table)

Beta Value Tolerance: J=±5%, H=±3%

Beta Value Code (See 2 digit codes on Standard Products Table)

Series: NTHC04, NTHC06, NTHC08

®

¦

NIC COMPONENTS CORPORATION

70 Maxess Rd., Melville, NY 11747

•

(631)396-7500 FAX (631)396-7575
