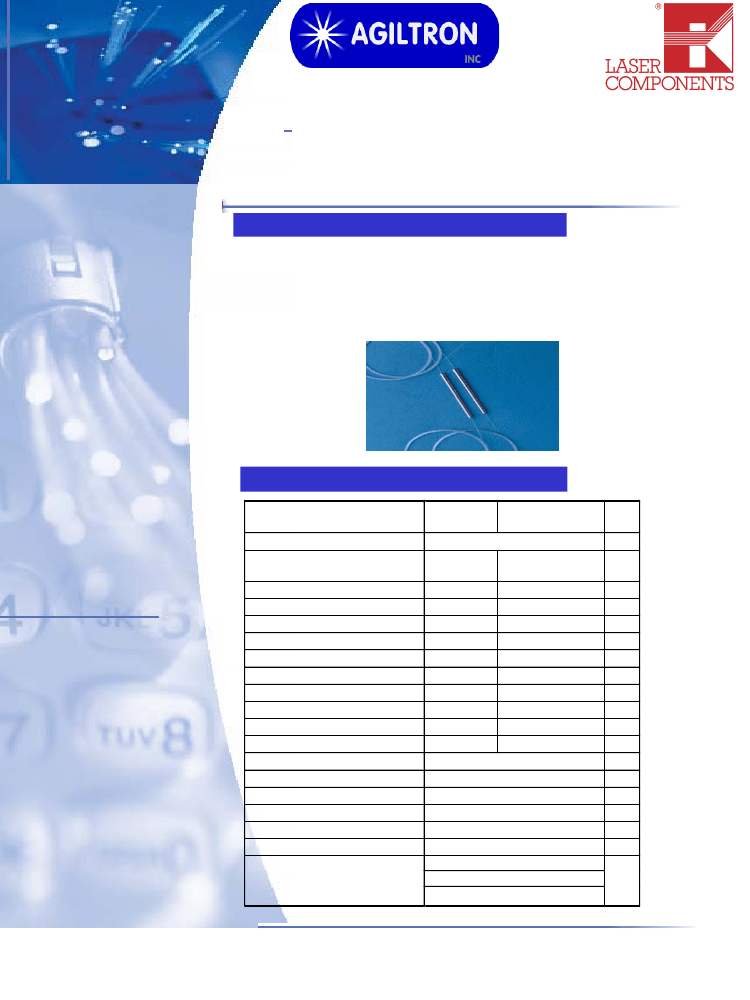

FiberOptic Coupler/Splitter
1310
&
1550nm Single Mode
(patents pending)
Product Description
The FC Series fiber optic coupler is based on Agiltron’s fused biconical
taper technology and compact packaging structure. It features good
uniformity, low excess loss and very low polarization sensitivity. The
device is ideal for splitting or combining light with exceptional
performance over a wide wavelength range
Features
•
Wavelength Independent
•
Ultra Low Excess Loss
•
Low Polarization
Sensitivity
•
Highly Stable & Reliable
•
Ultra Low Cost
Performance Specifications
FC Series
Coupling Ratio
Single
Window
Dual Window
Unit
Applications
•
•
•
•
Telecommunications
CATV
Local Access Network (LAN)
Fiberoptic Instrumentation
1/99 to 50/50
1270~1350 or 1270~1350 and
Operation Wavelength
nm
1510~1590 1510~1590
Excess Loss
dB
< 0.1
< 0.1
Insertion Loss Split Ratio:50/50 < 3.3
dB
< 3.6
Split Ratio:40/60 < 4.4/2.5
dB
< 4.7/2.7
Split Ratio:30/70 < 5.6/1.8
dB
< 6.0/1.9
Split Ratio:20/80 < 7.4/1.1
dB
< 7.9/1.2
plit Ratio:10/90 < 11.0/0.60
dB
< 11.3/0.65
Split Ratio: 5/95 < 13.8/0.45
dB
< 15.2/0.4
Split Ratio: 1/99 < 19-21/0.2
dB
< 23.5/0.3
Uniformity (50/50)
dB
< 0.5
< 0.8
Polarization Dependent Loss
dB
< 0.10
< 0.15
Temperature Sensitivity
dB/
o
C
< 0.002
Directivity
dB
> 55
Return Loss
dB
> 55
Optical Power Handling
W
<4
o
Operating Temperature
C
-10~70
o
Storage Temperature
C
-40~85
250um&900um fiber: (φ)3x(L)54
Mini: (φ)3x(L)25 special fiber
Package Dimension *
mm
3mm Cable: (L)98x(W)14x(H)8.5
*
Other package options available on request
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
FiberOptic Coupler/Splitter
1310
&
1550nm Single Mode
Ordering Information
FC-
Type
Wavelength Grade
Premium=1
Special=0
Package Coupling Port
Ratio
54(L)=1
30(L)=2
98(L)=3
Special=0
01/99=1
03/97=2
05/95=3
10/90=4
15/85=5
20/80=6
30/70=7
40/60=8
50/50=9
Special=0
1x2=1
2x2=2
Fiber Type Connector
Type
SMF28 250μm=1
900um loose tube=3
Special= 0
None = 1
FC / PC = 2
FC / APC = 3
SC / PC = 4
SC / APC = 5
ST / PC = 6
LC = 7
Special = 0
Single Window=1 1310=3
Dual Window= 2 1550=5
1310/1550=7
Special=0
0 /0 / V1 /
/
/
sm_coupler /
.pdf
www.lasercomponents.com
