BC061-24-A-L-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BC061-24-A-L-D

BC061-24-A-L-D: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking,; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BC061-24-A-L-D Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking,

BC061-24-A-L-D Parametric

Parameter Name	Attribute value
Contact point gender	FEMALE
Installation method	STRAIGHT
Installation type	BOARD
Rated current (signal)	1 A
Terminal pitch	0.9906 mm
Total number of contacts	24
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact resistance	20 mΩ
insulator material	LIQUID CRYSTAL POLYMER
PCB row number	2
Number of rows loaded	2
Plug contact pitch	0.039 inch
Match contact row spacing	0.057 inch
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Termination type	SURFACE MOUNT
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
contact mode	RECTANGULAR
Installation option 1	LOCKING
PCB contact row spacing	3.7338 mm
Plating thickness	FLASH inch
Contact material	COPPER ALLOY
Insulation resistance	1000000000 Ω
polarization key	POLARIZED HOUSING
Dielectric withstand voltage	300VAC V
Filter function	NO
JESD-609 code	e4
Guideline	UL
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Is it Rohs certified?	Yes
Is Samacsys	N
YTEOL	9
Objectid	313790517
Reach Compliance Code	Compliant
Country Of Origin	Mainland China
ECCN code	EAR99
body width	0.146 inch
subject depth	0.159 inch
body length	0.618 inch

Preview

Download Datasheet

View All

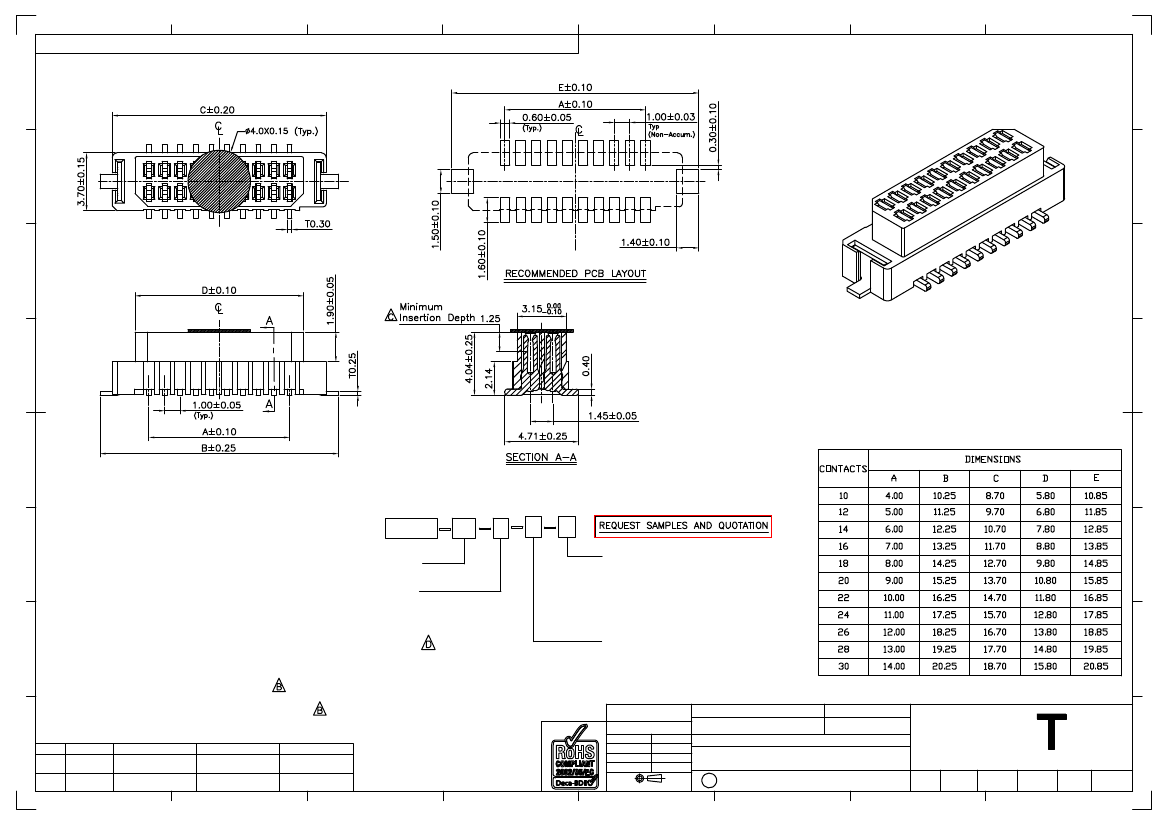

Global Connector Technology Ltd. - BC061: 1.00mm PITCH SOCKET, DUAL ROW, SURFACE MOUNT, VERTICAL

Ordering Grid

BC061

SPECIFICATIONS

规格

No. of Contacts

10 to 30

Packing Options

C = Tape and Reel with Film (Standard)

B = Tape and Reel with Cap

D = Tube

E = Tube with Cap

F = Tube with Film

Insulator Material

L = LCP (Standard)

CURRENT RATING

电流额定值：

1 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

Contact Plating

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

A = Gold Flash All Over

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

C = Tin All Over

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

Standard = Gold Flash All Over

CONTACT MATERIAL

端子物料：

COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BC060

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°± 5°

.X°± 3°

X.X ± 0.25

X.XX ± 0.15

.XX°± 2°

X.XXX ± 0.10 .XXX°± 1°

X. ± 0.30

Third Angle Projection

BC061

Description:-

20 MAY 08

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

20/05/08

AMENDMENT TO

PLATING OPTIONS

21/12/09

CHANGE TO SOLDER MINIMUM INSERTION

TEMP. INFORMATION

DEPTH ADDED

23/07/09

30/11/09

1.00mm PITCH SOCKET, DUAL ROW,

SURFACE MOUNT, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

LYH

E & OE

Sheet No.

1/1
