2348-6101: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

2348-6101 Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

2348-6101 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.26 inch
body length	0.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	8.0064 N
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2348
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
Evacuation force-minimum value	.7784 N
Base Number Matches	1

Preview

Download Datasheet

View All

DUAL ROW RIGHT ANGLE BOX HEADER

2348 SERIES.

2.54mm(0.100”). For PCB Solder.Two Wall

Features



Available in 4 through 40 circuits

Insulator Material: PBT, UL 94V-0



Contact Material: 0.64mm(.025”) square pin in Brass

Polarised with locking ramp

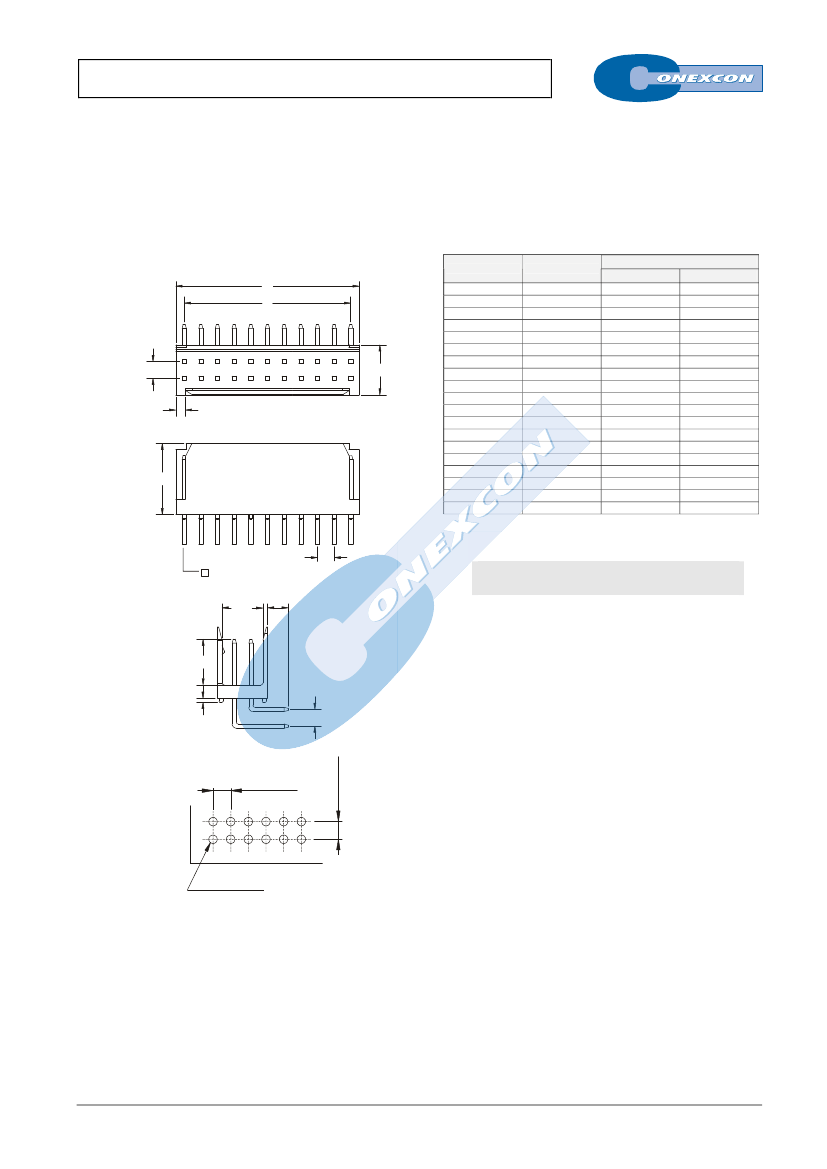

Dimensional Information

Dimensional and Ordering Information

Dimensions

A

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

B

2,54(0,100)

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

Circuit Size

Part Number

2348-

T041

2348-

T061

2348-

T081

2348-

T101

2348-

T121

2348-

T141

2348-

T161

2348-

T181

2348-

T201

2348-

T221

2348-

T241

2348-

T261

2348-

T281

2348-

T301

2348-

T321

2348-

T341

2348-

T361

2348-

T381

2348-

T401

A

B

2.54

6.60

1.45

10.86

04

06

08

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

2.54

0.64*0.64

3.2

T = Plating Options



T =

2.

Tin Plated.

Recommended Finish

T =

3.

Gold flash over 30-50µ" nickel overall

T =

5.

15µ" gold over 30-50µ" nickel overall

T =

6.

30µ" gold over 30-50µ" nickel overall

5.2

7.0

0.6

2.54

2.54±0.05

.100

±

.002

1.02

±

0.10

.040

±

.004

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

2.54±0.05

.100

±

.002

E-XX
