5962-9224705M3X datasheet, PDF

5962-9224705M3X: DescriptionBus Driver, FCT Series, 1-Func, 10-Bit, True Output, CMOS, CQCC28, LCC-28; Categorylogic logic; File Size84KB，3 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

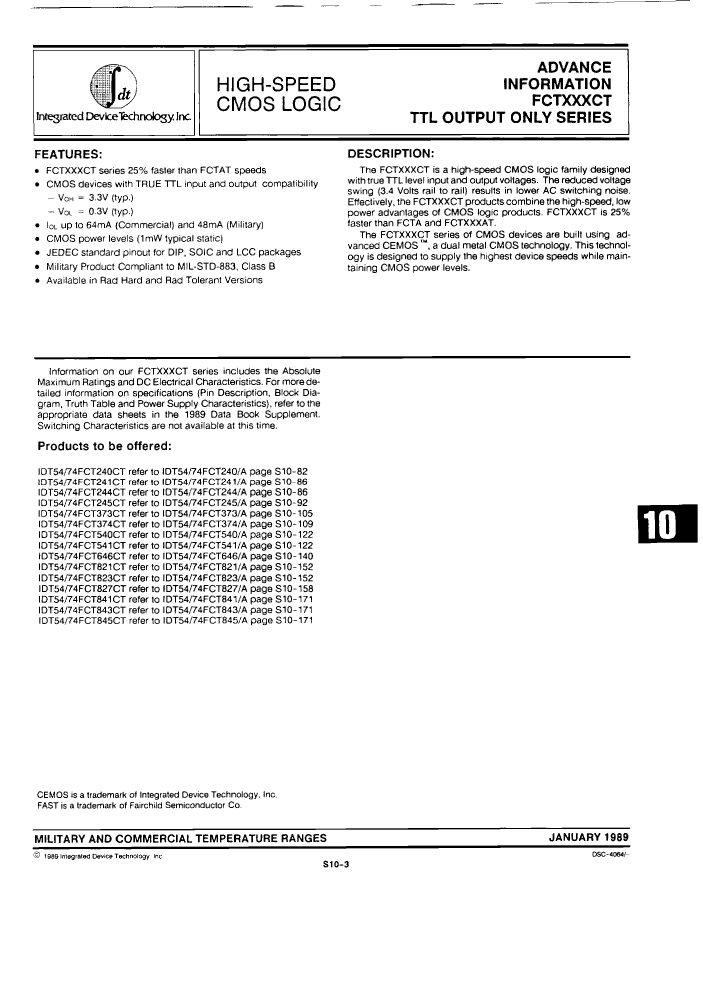

5962-9224705M3X Overview

Bus Driver, FCT Series, 1-Func, 10-Bit, True Output, CMOS, CQCC28, LCC-28

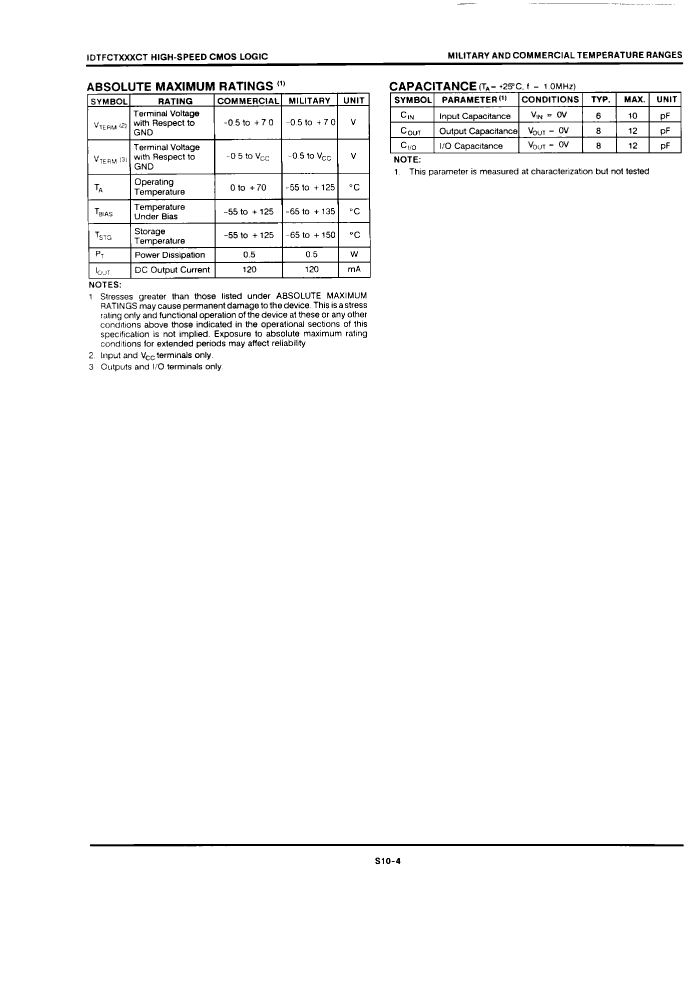

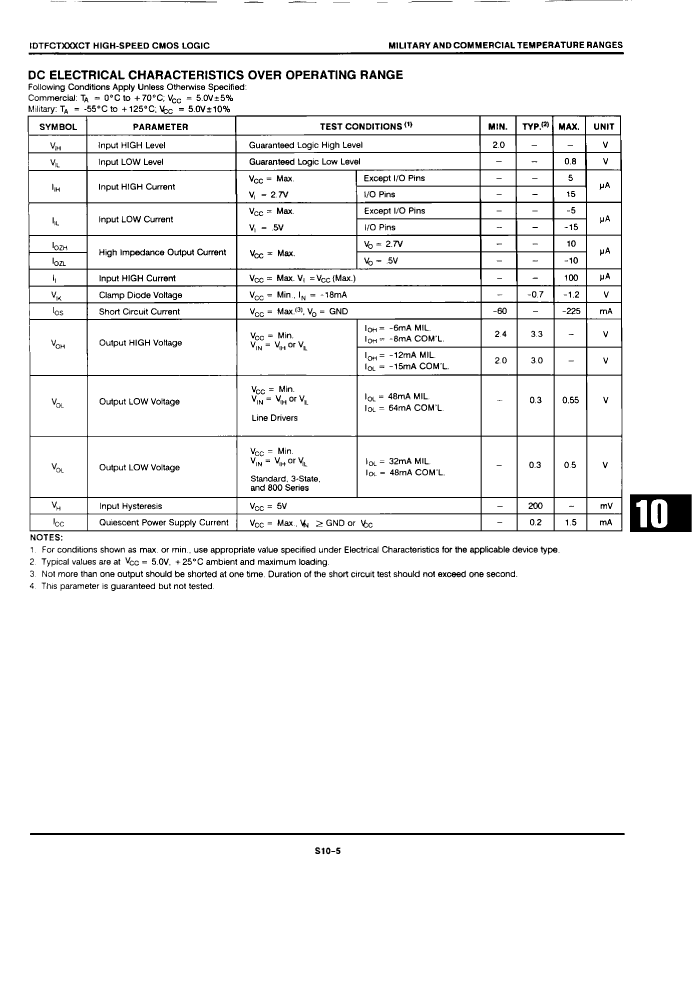

Parameter Name	Attribute value
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	28
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	FCT
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.4554 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	11 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.4554 mm
Base Number Matches	1
