BG075-20B-2-0600-0300-0480-N-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG075-20B-2-0600-0300-0480-N-G

BG075-20B-2-0600-0300-0480-N-G: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Male, Right Angle Reverse, 0.1 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size128KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG075-20B-2-0600-0300-0480-N-G Overview

Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle Reverse, 0.1 inch Pitch, Solder Terminal, Receptacle,

BG075-20B-2-0600-0300-0480-N-G Parametric

Parameter Name	Attribute value
Dielectric withstand voltage	600VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Guideline	UL
JESD-609 code	e3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Is it Rohs certified?	Yes
Reach Compliance Code	Compliant
Country Of Origin	Mainland China
ECCN code	EAR99
Is Samacsys	N
YTEOL	9.1
Objectid	304449209
PCB row number	1
Terminal pitch	2.54 mm
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
insulator material	POLYAMIDE
Contact to complete cooperation	AU
Contact resistance	20 mΩ
Rated current (signal)	3 A
Other features	ROHS COMPLIANT
Contact point gender	MALE
Total number of contacts	20
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
body width	0.1 inch
subject depth	0.098 inch
body length	2 inch
Terminal length	0.118 inch
Contact style	SQ PIN-SKT
Plug contact pitch	0.1 inch
Mixed contacts	NO
Number of connectors	ONE
Plating thickness	FLASH inch
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Termination type	SOLDER
PCB contact pattern	RECTANGULAR

Preview

Download Datasheet

View All

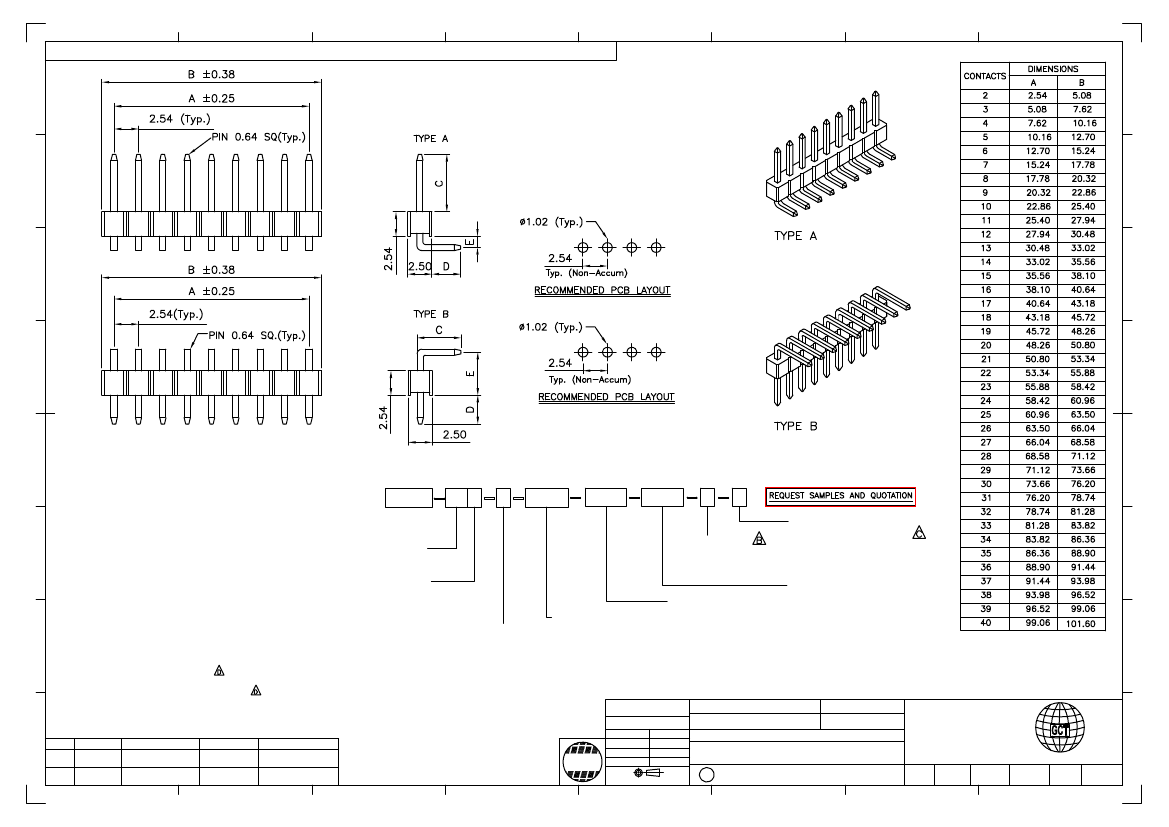

Global Connector Technology Ltd. - BG075: 2.54mm PITCH PIN HEADER, SINGLE ROW, THROUGH-HOLE, HORIZONTAL

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3 AMP

Ordering Grid

INSULATION RESISTANCE

绝缘电阻值

: 1000MΩ MIN.

DIELECTRIC WITHSTANDING

耐电压

: 600V AC

CONTACT RESISTANCE

接触电阻值

: 20mΩ MAX.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR

绝缘½物料

No. of Contacts

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

02 to 40

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

OR POLYESTER

聚酯

, PBT, UL94-V0

Contact Plating

SOLDERING PROCESS

可焊性

A = Gold Flash All Over

NYLON 6T (STANDARD

标准物料

) -

B = Selective Gold Flash

IR REFLOW

回流焊

: 260°C for 10 sec.

Contact Area/Tin On Tail

WAVE

波峰焊

: 230°C for 5-10 sec.

C = Tin All Over

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

G = 10µ" Gold Contact

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

Area/Tin On Tail

I = 30µ" Gold Contact

LCP (OPTION

可选物料

) -

Area/Tin On Tail

IR REFLOW

回流焊

: 260°C for 10 sec.

Standard = Gold Flash All

WAVE

波峰焊

: 250°C for 5-10 sec.

Over

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BG090

BG095

BG096

BG100

BG110

BG115

BG125

BG130

BG135

BG145

BG205

BG075

XX X

XXXX

Packing Options

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

Insulator Materials

N = Nylon 6T (Standard)

P = PBT

L = LCP

Type

1 = Type A

2 = Type B

Dimension E (1/100mm)

(Bottom of Insulator to Pin Centre)

Dimension D (1/100mm)

Type A: Standard - 1.50mm = 0150

(Tail Length)

Dimension C (1/100mm)

Type B: Standard - 4.80mm = 0480

Standard - 3.00mm = 0300

(Post Length)

Or specify Dimension E

Or specify Dimension D

Standard - 6.00mm = 0600

e.g. 2.50mm = 0250

Or specify Dimension C

TOL.: ±0.2mm

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

.XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

X.X ± 0.20

X.XX ± 0.15

Third Angle Projection

BG075

Description:-

01 NOV 06

LYH

DETAIL

REV

DATE

DRAWING

RELEASE

01/11/06

STANDARD INSULATOR

MATERIAL CHANGED

PACKING OPTIONS

CHANGED

12/03/09

27/04/09

CHANGE TO SOLDER

TEMP. INFORMATION

05/08/09

RoHS

2.54mm PITCH PIN HEADER, SINGLE ROW,

THROUGH-HOLE, HORIZONTAL

Global

Connector

Technology

Scale

NTS

Sheet No.

E & OE

1/1

www.globalconnectortechnology.com

Material

See Note

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

LYH
