1280175121036-11 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1280175121036-11

1280175121036-11: DescriptionBoard Connector, 36 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size113KB，2 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

1280175121036-11 Overview

Board Connector, 36 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

1280175121036-11 Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
Is it Rohs certified?	Yes
Is Samacsys	N
Objectid	308944322
Reach Compliance Code	Compliant
Country Of Origin	Germany
ECCN code	EAR99
subject depth	0.346 inch
body length	1.816 inch
body width	0.087 inch
Contact point gender	FEMALE
Number of rows loaded	1
Rated current (signal)	1 A
Terminal pitch	1.27 mm
Connector type	BOARD CONNECTOR
Contact resistance	20 mΩ
insulator material	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Total number of contacts	36
Contact material	BRASS
Insulator color	BLACK
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Termination type	SURFACE MOUNT
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Plating thickness	30u inch
Filter function	NO
Insulation resistance	1000000000 Ω
polarization key	POLARIZED HOUSING

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

Serie 128

Technische Daten:

Isolierkörper

Farbe

Kontaktmaterial

Nennspannung

Nennstrom

Temperaturbereich

Lötwärmebeständigkeit

SMT BUCHSENLEISTE

SMT FEMALE HEADER

RASTER1,27mm für Rundstift 0,35- 0,50mm

PITCH 1,27mm for round contact 0,35- 0,50mm

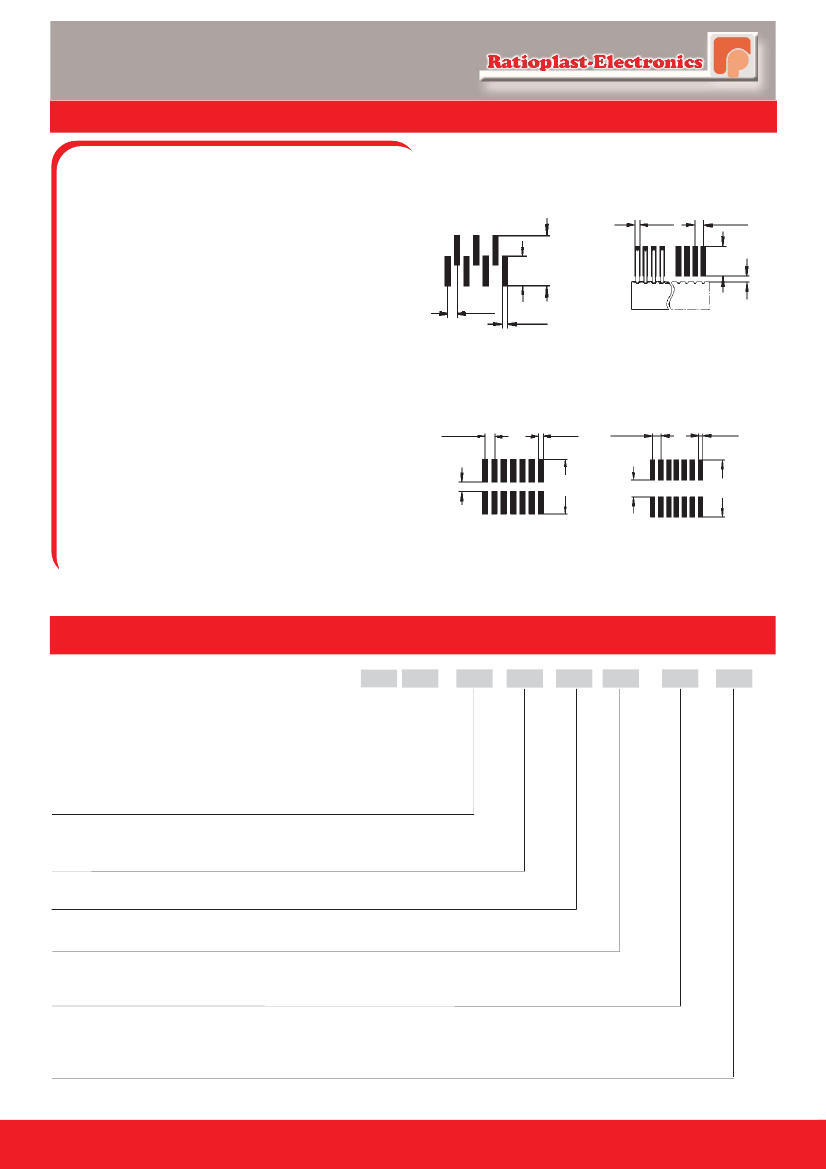

Empfohlenes Leiterplatten-Layout

(Toleranz +0,05)

Recommended P.C.B Layout

(Tolerance +0,05)

PCT-GF30-FR

Hochtemperaturfest, UL94-V0

Schwarz

Messing

250 V AC

- 55°C ... +125°C

235°C (30-60 sek.)

max. 260°C (5 sek.)

0,8

1,27

4,4

1,27

0,8

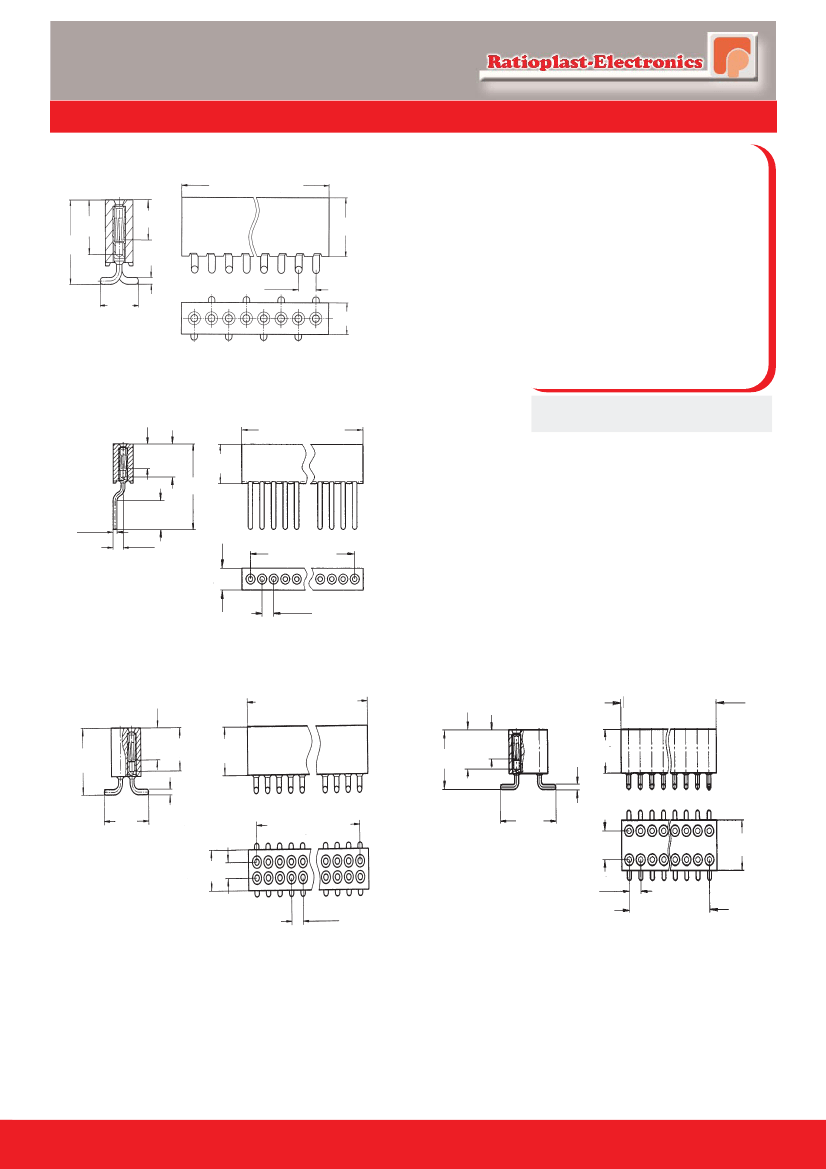

1- reihig liegend

1- row lying

Weitere technische Informationen zu den Produkten erhalten Sie auf

Anfrage

Technical Data

Insulator

Colour

Contact Material

Current Voltage

Current Rating

Temperature Range

Resistance to soldering

More technical Information on request

PCT-GF30-FR

High temperature, UL94-V0

Black

Brass

250 V AC

- 55°C ... +125°C

235°C (30-60 sec.)

max. 260°C (5 sec.)

1- reihig stehend

1- row standing

1,27

0,8

1,27

0,8

1,0

6,0

2,0

7,0

2- reihig stehend

2- row standing

2- reihig stehend Typ”S”

2- row standing typ “S”

BESTELLBEISPIEL

HOW TO ORDER

BITTE ERSETZEN SIE `X` DURCH UNTEN AUFGEFÜHRTEN CODE

PLEASE REPLACE `X`WITH CODING LISTED BELOW

128 0H

XXX - XX

00 = Ohne Positionierhilfe - Without locating peg (Standard)

01 = Mit Positinierhilfe - With locating peg

Veredelung - Plating

SF = Selektiv Vergoldet - Selective gold plated

75 = 0,75μmSelektiv Vergoldet - Selective gold plated

(Au/Sn) (Standard)

(Au/Sn)

1 = 1- reihig - 1- row

2 = 2- reihig - 2- row (nur stehend - only standing)

S = 2- reihig - 2- row (Reihenabstand 2,54mm - row pitch 2,54mm)

1 = Stehend - Standing

2 = Liegend - Lying (nur 1- reihig - only 1- row)

1 = 1,27 mm Raster - Pitch

9 = Sonderraster - Other pitch

Polzahl - Number of contacts (003... 050) (1- reihig liegend- lying))

(002... 050) (1- reihig stehend- standing))

(004... 100) (2- reihig - nur stehend- only standing))

01= Verpackt in Stangen ohne PP-Pad (auf Anfrage) - Packed in tubes without PP-Pad (on request)

11= Verpackt in Stangen mit PP-Pad (auf Anfrage) - Packed in tubes with PP-Pad (on request)

02 = Verpackt auf Rolle mit PP-Pad (auf Anfrage) - Reel packing with PP-Pad (on request)

Seite: 80

Version 1 / 2011

www.ratioplast.com
