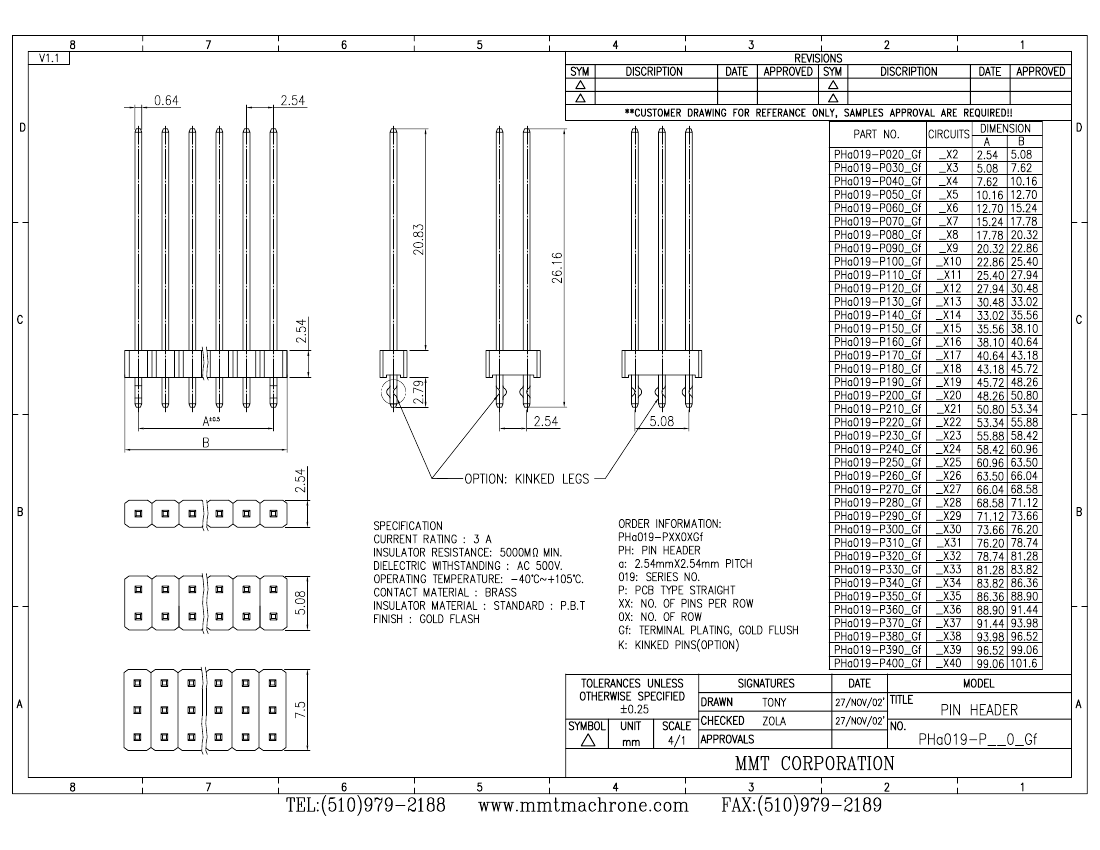

PHA019-P2603GF Overview

Board Connector, 78 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Is Samacsys	N
Objectid	304304662
Reach Compliance Code	Unknown
ECCN code	EAR99
body width	0.295 inch
subject depth	0.1 inch
body length	2.6 inch
Terminal length	0.11 inch
Contact to complete cooperation	AU
Contact point gender	MALE
insulator material	POLYBUTYLENE TEREPHTHALATE
Installation type	BOARD
Number of rows loaded	3
Rated current (signal)	3 A
Total number of contacts	78
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Installation method	STRAIGHT
PCB row number	3
Terminal pitch	2.54 mm
Contact material	BRASS
Contact style	SQ PIN-SKT
Plug contact pitch	0.1 inch
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Termination type	SOLDER
Contact completed and terminated	GOLD
contact mode	RECTANGULAR
Match contact row spacing	0.1 inch
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
