AEL4310AM0.5MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> AEL4310AM0.5MHZ

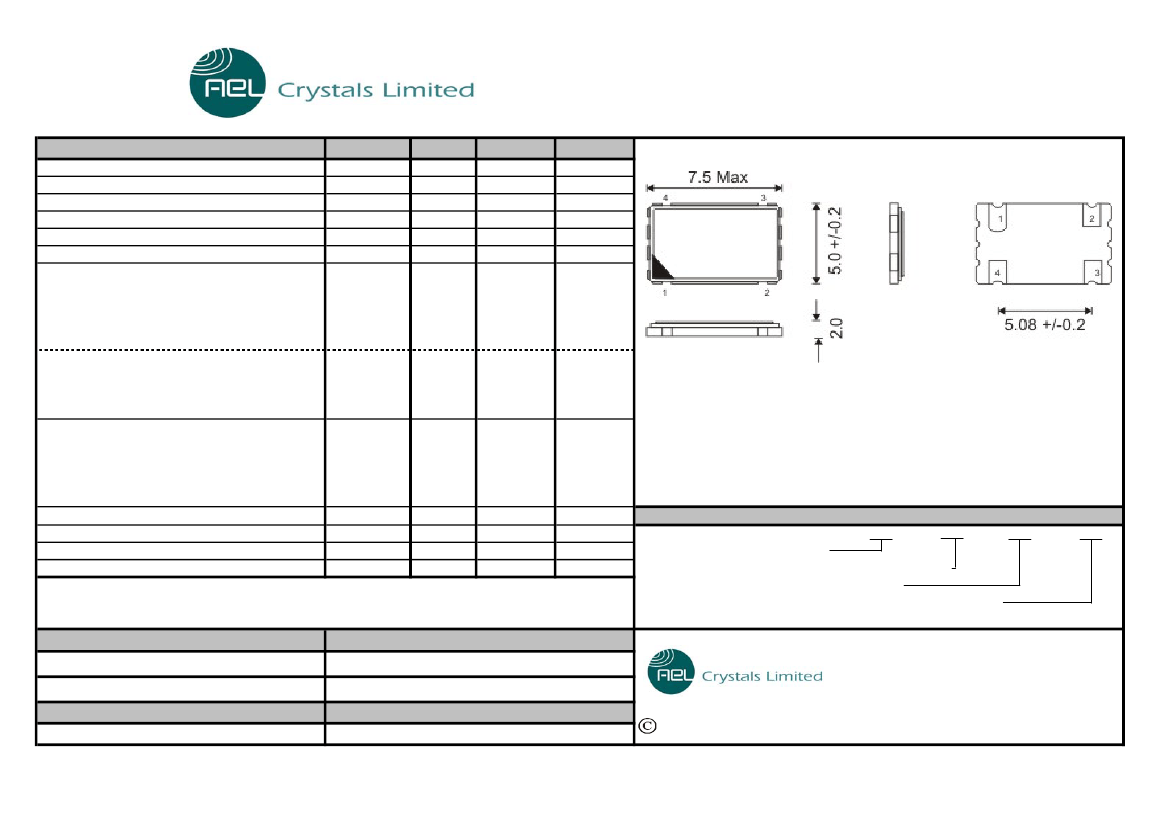

AEL4310AM0.5MHZ: DescriptionTTL Output Clock Oscillator, 0.5MHz Nom,; CategoryPassive components oscillator; File Size35KB，1 Pages; ManufacturerAEL [AEL Crystals Ltd]

Download Datasheet Parametric View All

AEL4310AM0.5MHZ Overview

TTL Output Clock Oscillator, 0.5MHz Nom,

AEL4310AM0.5MHZ Parametric

Parameter Name	Attribute value
physical size	7.5mm x 5.0mm x 2.0mm
Objectid	8324680835
Reach Compliance Code	Compliant
Is Samacsys	N
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
longest rise time	5 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
maximum symmetry	52/48 %
Output load	10 TTL, 15 pF
Nominal supply voltage	5 V
frequency stability	25%
Nominal operating frequency	0.5 MHz
Oscillator type	TTL
Installation features	SURFACE MOUNT
surface mount	YES
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

Preview

Download Datasheet

View All

43-Series General Oscillator Specifications

Description

Frequency Range

Overall Stability (+/-)

Supply Voltage (+/-10%)

Operating Temperature Range

Capacitive Load on Output

TTL Load on Output

Supply Current:

5V 1.0-23.9MHz

5V 24-49.9MHz

5V 50-69.9MHz

5V 70-125MHz

3.3V 1.0-23.9MHz

3.3V 24-49.9MHz

3.3V 50-69.9MHz

3.3V 70-125MHz

Output Voltage :

High (5Vdd)

High (3.3Vdd)

Low (5Vdd)

Low (3.3Vdd)

Symmetry

Jitter

Rise/Fall time (frequency dependant)

Start up Time

Min

0.5

1.8

0~70

Typ

Max

125

100

-55~125

4.5

2.97

0.5

0.33

48:52

Unit

MHz

ppm

Deg C

TTL

Pin Assignments

Pin 1

Tri-State (431-)

Pin 2

Ground

Pin 3

Output

Pin 4

+V DC

Tri-State Voltages

N.C

Output Active

>2.2V

Output Active

<0.8V

Output Disabled

(Pin 1 has internal pull up resistor to allow

it to float High)

40:60

45:55

Options and How to Specify

AEL43

Pin 1:

1=E/D

Supply voltage:

0=5V, 3=3.3, 2=2.5V, 1=1.8V

Stability* (+/-ppm):

C=100, B=50, A=25

Temperature range:

S=0~+70, I=-40~+85C, M=-55+125C

e.g. AEL4313BS 20MHz = E/D, 3.3V, +/-50ppm, 0~+70C, 20MHz

Module "D", Airtech II

Jenner Road, Manor Royal

Crawley RH10 9GA

AEL Crystals Ltd. Reserve the right to amend specifications without notification. Please ensure you have the latest issue

*please contact our Sales Office for further options

TITLE

Part Number

Stock Number

Issue Date

Issue Number

AEL 43-series oscillator

Contact Sales Office

29/06/2006

Not to be reproduced without permission of AEL Crystals Ltd
