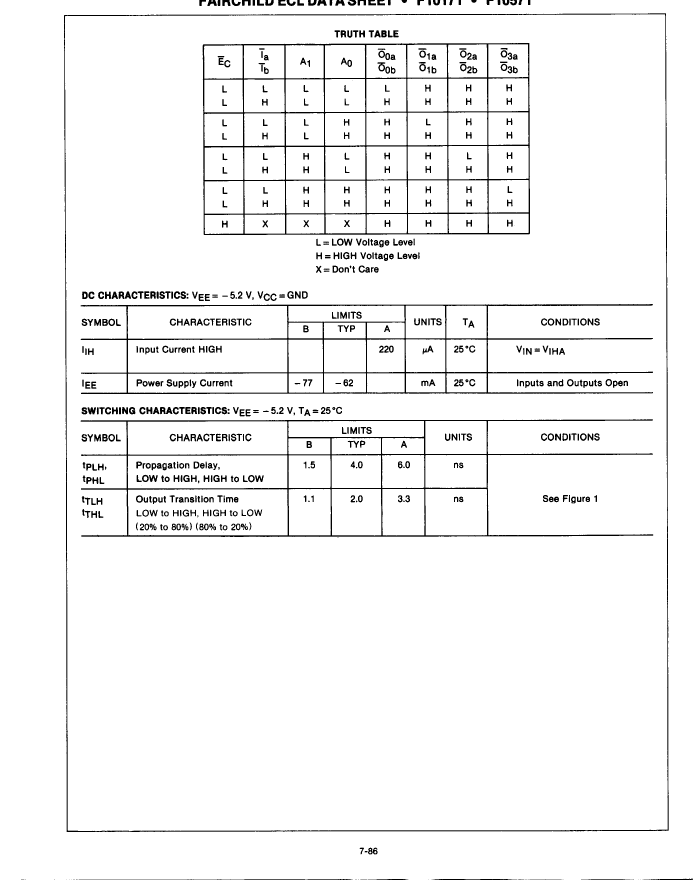

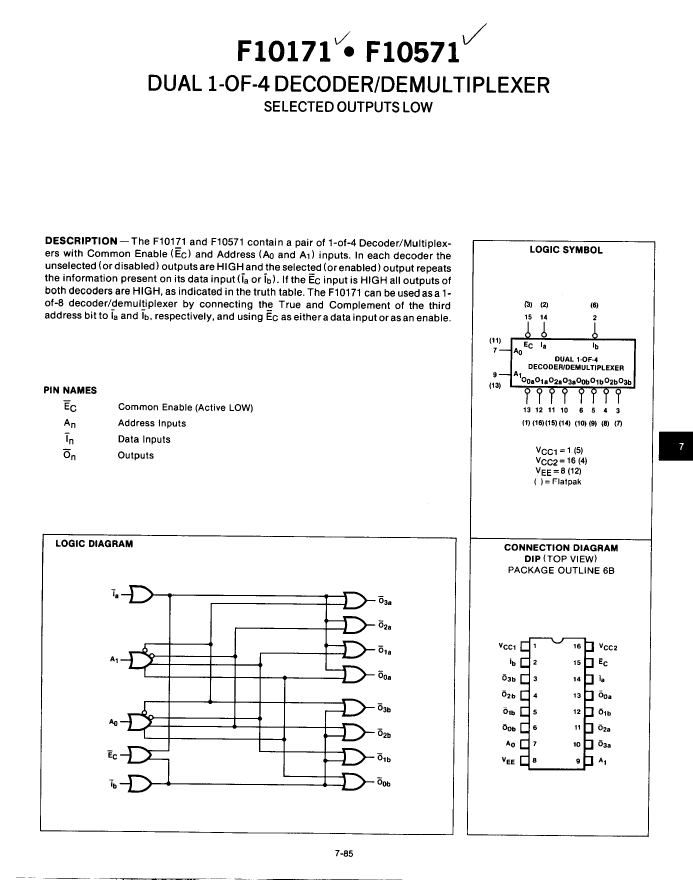

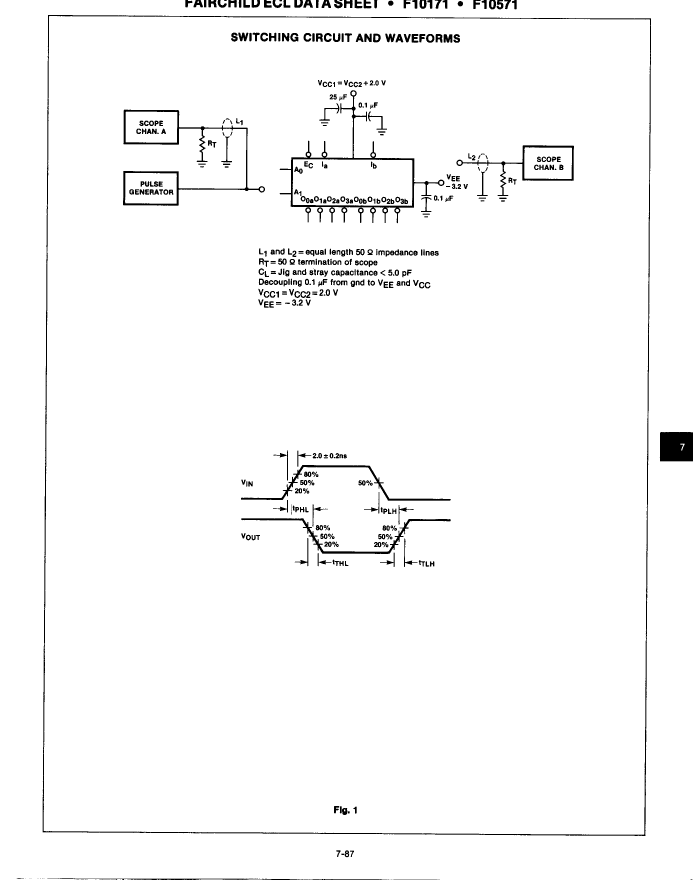

F10571DM datasheet, PDF - EEWORLD Datasheet

F10571DM: DescriptionDecoder/Driver, ECL10K, CDIP16,; Categorylogic logic; File Size102KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

F10571DM Overview

Decoder/Driver, ECL10K, CDIP16,

Parameter Name	Attribute value
Is Samacsys	N
YTEOL	0
Objectid	1436345002
Reach Compliance Code	Compliant
ECCN code	EAR99
Is it Rohs certified?	No
surface mount	NO
series	10K
Number of functions	2
encapsulated code	DIP
propagation delay (tpd)	6 ns
Nominal supply voltage (Vsup)	-5.2 V
Input adjustment	STANDARD
Logic integrated circuit type	2-LINE TO 4-LINE DECODER
Output polarity	INVERTED
technology	ECL
Temperature level	MILITARY
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Certification status	Not Qualified
length	19.94 mm
Maximum seat height	5.08 mm
width	7.62 mm
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Number of terminals	16
Package body material	CERAMIC
Terminal pitch	2.54 mm
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
