2170283 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 2170283

2170283: DescriptionWire And Cable, 4 Conductor(s), 26AWG, 125V, Communication Cable, HALOGEN FREE AND ROHS COMPLIANT; CategoryThe connector Connector bracket; File Size148KB，1 Pages; ManufacturerLapp Group; Environmental Compliance

Download Datasheet Parametric View All

2170283 Overview

Wire And Cable, 4 Conductor(s), 26AWG, 125V, Communication Cable, HALOGEN FREE AND ROHS COMPLIANT

2170283 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	APPLICATION: CORDSETS
application	WIRING OF INDUSTRIAL NETWORK DEVICES, SENSORS, ACTUATORS
conductor material	BARE COPPER
Connector bracket type	WIRE AND CABLE
structure	STRANDED
diameter	5.4 mm
insulator material	POLYETHYLENE
length	60 mm
Number of conductors	4
Maximum operating temperature	60 °C
Minimum operating temperature	-5 °C
Rated voltage	125 V
shield	YES
stay	7
Wire gauge	26 AWG
Wire and Cable Names	COMMUNICATION CABLE
Base Number Matches	1

Preview

Download Datasheet

View All

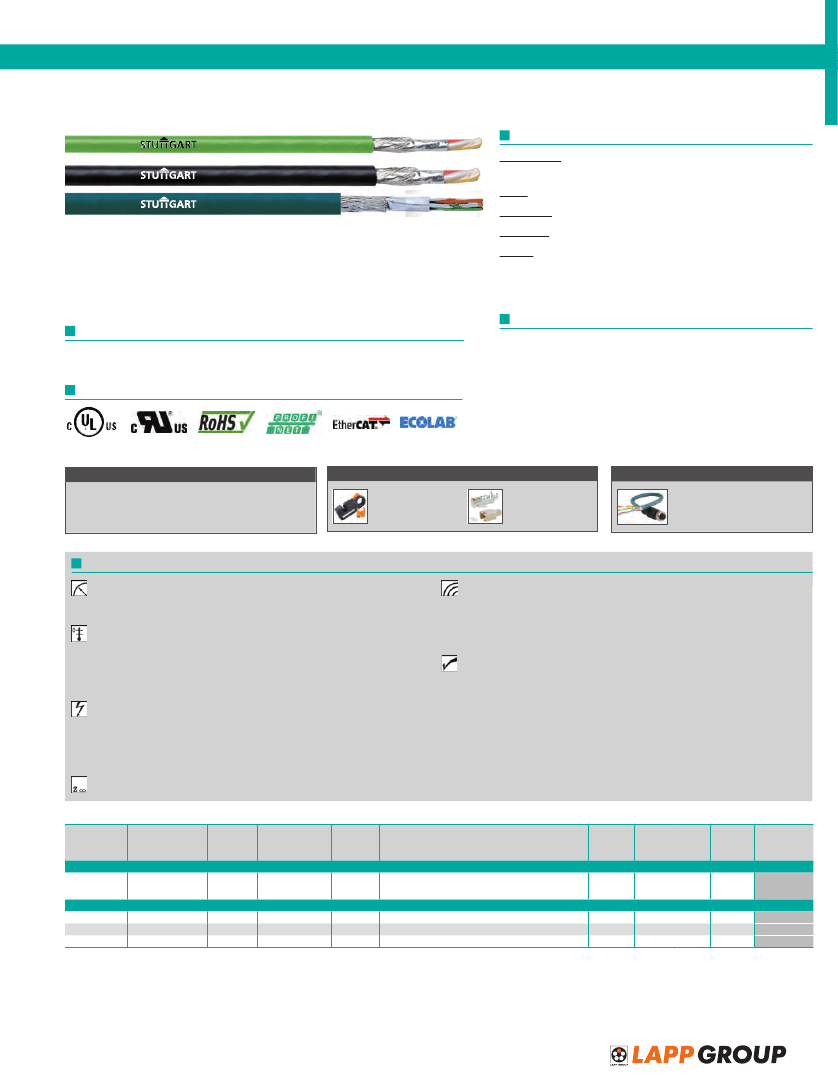

ETHERLINE

CAT.5/CAT.5e 2 Pair Cable

Ethernet Cable, Connectors & Tools

ETHERLINE

2 Pair: CAT.5/CAT.5e; Flexible

LAPP KABEL

Industrial Ethernet Cable for Flexible Applications

Construction

Conductors:

Stranded bare copper; stranded tinned copper

(2170886)

Pairs:

2 twisted pairs or star quad

Insulation:

Polyethylene or polyolefin (2170901)

Shielding:

Foil and copper braid

Jacket:

PVC; green or black — polyurethane or halogen-free;

teal

ETHERLINE

CAT.5

ETHERLINE CAT.5e

ETHERLINE

CAT.5e

Flexible ETHERLINE CAT.5/5e cables are constructed with a high-quality

foil and copper braid shield for reliable data transfer in areas where EMI is

pervasive. The different jacket materials provide excellent protection against

oil, flame, or sunlight. A Low Smoke Zero Halogen (LSZH) jacketed cable

is available for applications where human safety and damage to electronic

components are a concern.

Recommended Applications

Flexible applications; wiring of industrial network devices, sensors, actuators,

and cordsets

Application Advantage

• Excellent EMI protection

• Oil-, flame- & UV-resistant jacket

• Conforms to PROFINET

standard

• Fast connect style allows for quick installation

Approvals

Cable Attributes

page 640

Complete the Installation

ÖLFLEX

CONNECT Solution

See attribute list by part

number on page 228

Fast Connect

Stripping Tool

page 257

RJ45

Connectors

page 251

Industrial Ethernet Cordsets

page 612

Technical Data

Minimum Bend Radius:

- for flexible use:

Temperature Range:

- 2170886:

- 2170901:

- 2170283, 2170284:

Nominal Voltage:

- 2170886:

- 2170284:

- all other P/Ns:

Characteristic Impedance:

15 x cable diameter

-20°C to +60°C

-10°C to +70°C

-5°C to +60°C

(not for power applications)

600V (UL AWM)

1000V

125V

100Ω ± 15Ω

Color Code:

- 2170886, 2170901:

- 2170283, 2170284:

Approvals:

UL:

White, yellow, blue, orange

White/orange & orange;

white/green & green

AWM 21576 (2170284)

AWM 21694 (2170886)

PLTC (2170886)

CMG (2170886)

Canada: c(UL) CMG (2170886)

cRU AWM I/II A/B FT2 (2170284)

Additional: ECOLAB (2170886)

RoHS

Part Number

Size / Pairs

Stranding

Jacket

Material

Jacket

Color

Approvals

Fast

Connect

Nominal

Outer Diameter

(in)

(mm)

Approx.

Weight

(lbs/mft)

SKINTOP

MS-SC

PG Thread

CAT.5 Cable

2170886

22 AWG/2pr

7 wire

PVC

Halogen-free

PUR

Green

Black

Teal

CAT.5e Cable

2170901

22 AWG/2pr

2170283*

26 AWG/2pr

2170284*

26 AWG/2pr

* Max cable run: 196 ft (60 m)

PROFINET

, UL/CSA CMG,

UL AWM, 600V, ECOLAB

PROFINET

—

UL/CSA AWM, 1000V

Yes

0.256

0.244

0.213

0.228

6.5

6.2

5.4

5.8

53112210

PROFINET

is a registered trademark of the PNO (PROFIBUS User Organization). Recommended SKINTOP

assumes minimal OD variance.

Additional configurations are available; please see our SKINTOP

section. If not otherwise specified, all values relating to the product are nominal values.

Photographs are not to scale and are not true representations of the products in question. For current information go to our website.

800-774-3539 • www.lappusa.com • www.lappcanada.com • www.lappmexico.com

233
