5962-8865901XX datasheet, PDF - EEWORLD Datasheet

5962-8865901XX: DescriptionIC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CDIP28, 1.490 X 0.610 INCH, 0.232 INCH HEIGHT, DIP-28, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size93KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

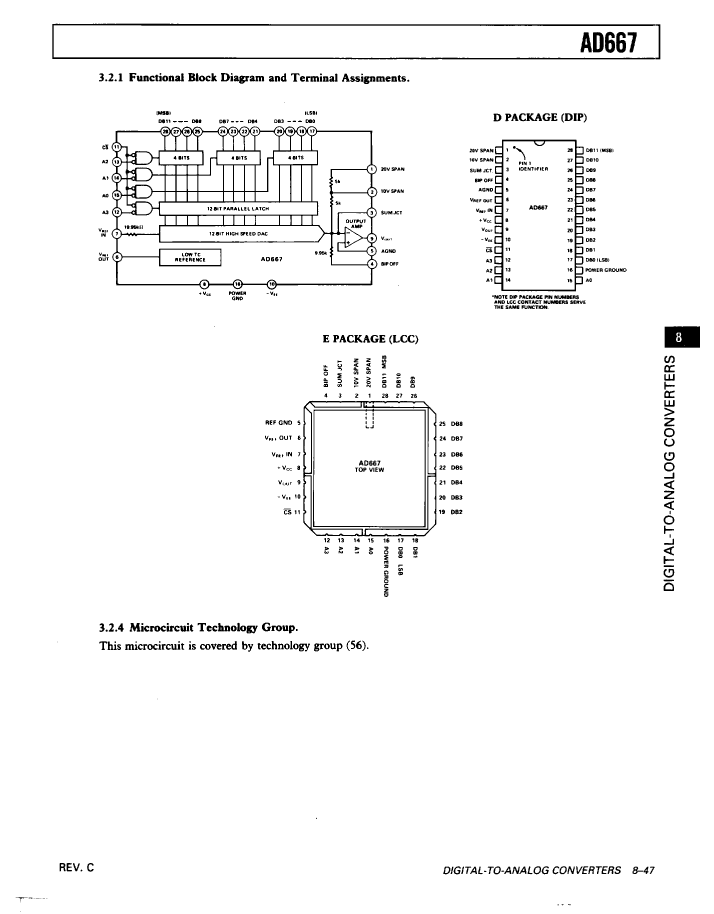

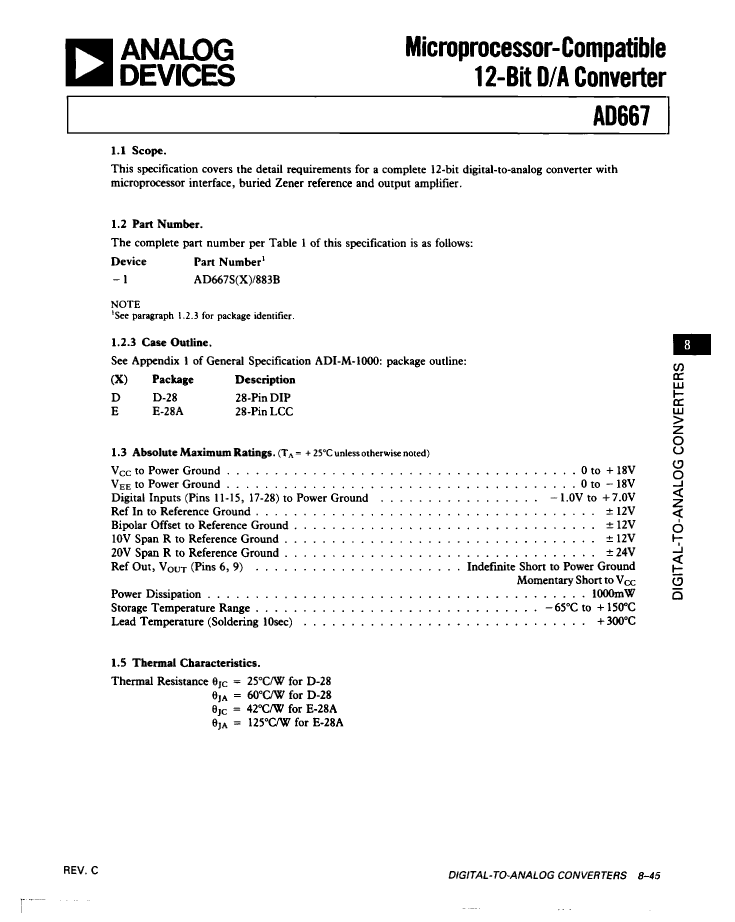

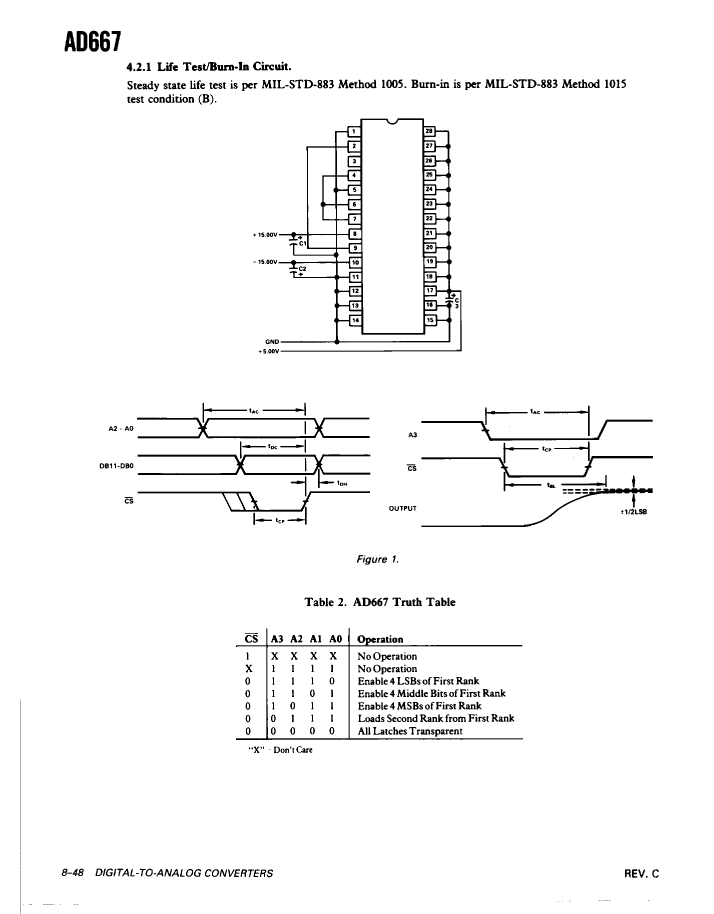

5962-8865901XX Overview

IC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CDIP28, 1.490 X 0.610 INCH, 0.232 INCH HEIGHT, DIP-28, Digital to Analog Converter

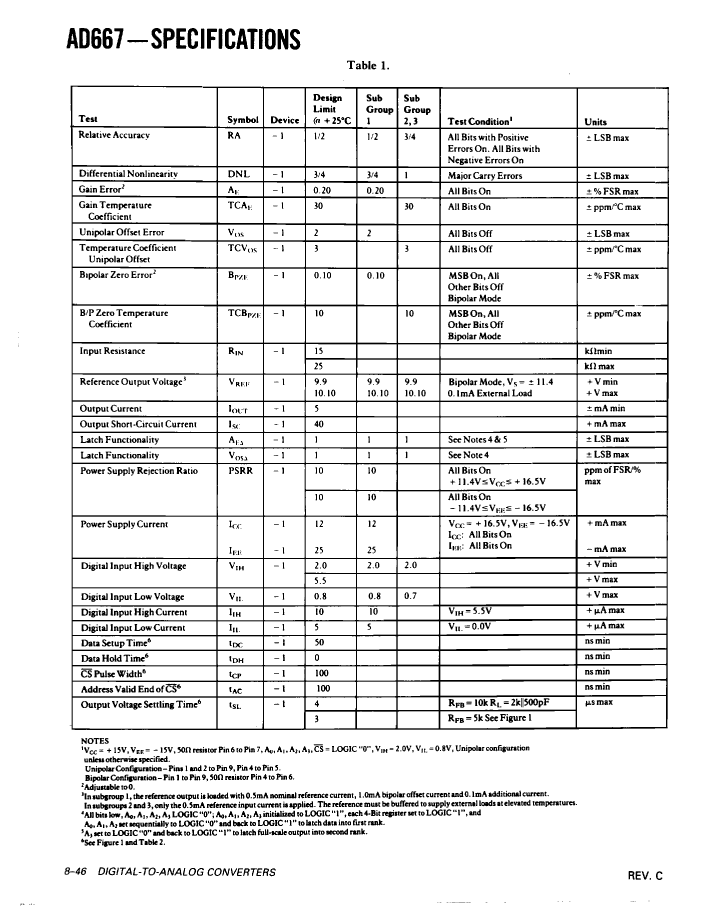

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T28
Maximum linear error (EL)	0.0183%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Qualified
Maximum seat height	5.72 mm
Nominal supply voltage	15 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
Base Number Matches	1

	5962-8865901XX	5962-88659013X
Description	IC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CDIP28, 1.490 X 0.610 INCH, 0.232 INCH HEIGHT, DIP-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CQCC28, 0.460 X 0.460 X 0.100 INCH, LCC-28, Digital to Analog Converter
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	ADI	ADI
Parts packaging code	DIP	QLCC
package instruction	DIP,	QCCN,
Contacts	28	28
Reach Compliance Code	compliant	not_compliant
ECCN code	3A001.A.2.C	3A001.A.2.C
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-T28	S-CQCC-N28
Maximum linear error (EL)	0.0183%	0.0183%
Nominal negative supply voltage	-15 V	-15 V
Number of digits	12	12
Number of functions	1	1
Number of terminals	28	28
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	220
Certification status	Qualified	Qualified
Maximum seat height	5.72 mm	2.54 mm
Nominal supply voltage	15 V	15 V
surface mount	NO	YES
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	30
width	15.24 mm	11.43 mm
