SUBMINIATURE WATERTIGHT SEALED
FEATURING OTTO B5 SERIES BASIC SWITCHES
LIMIT
SWITCHES
P6-3

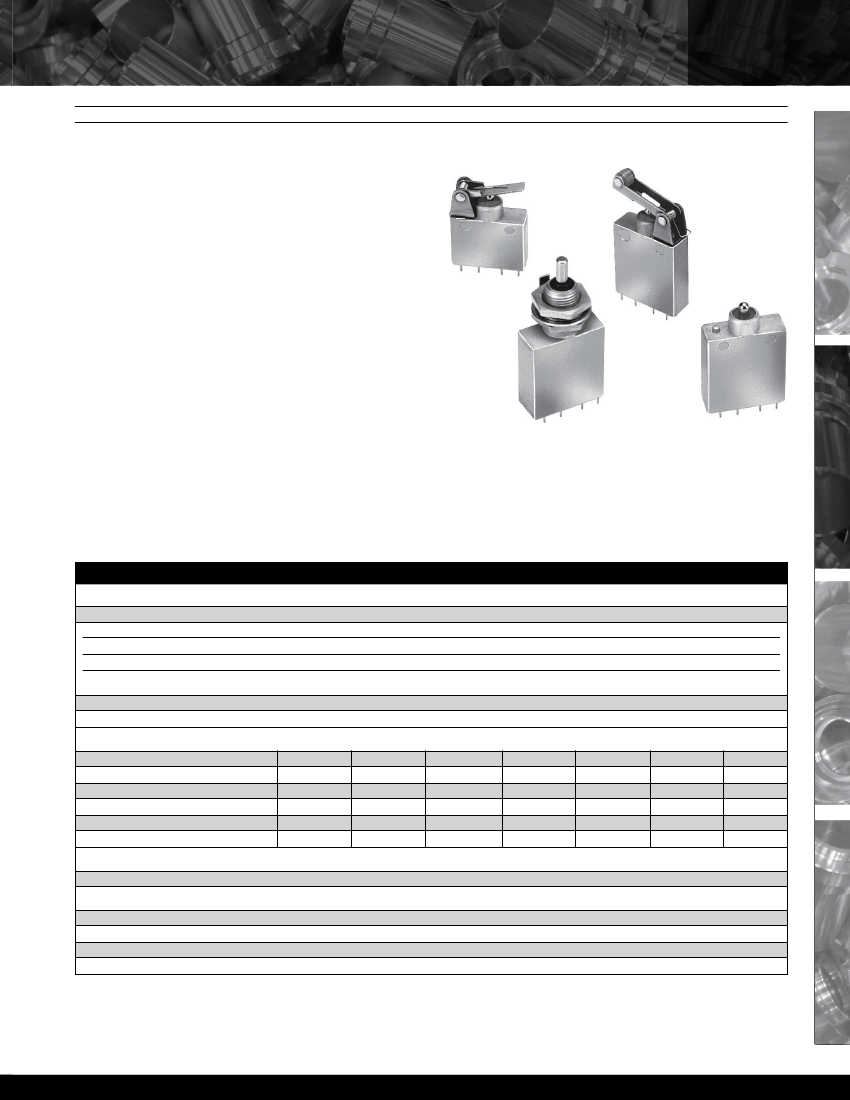

These subminiature sealed switches are contained in a
rugged aluminum housing with choice of lever, roller or
plunger. Featuring the B5 series basic switch, the P6-3
series is able to switch up to 10 amps. The high contact
pressure and superior wiping action of the OTTO design
also makes the P6-3 series an excellent choice when
switching logic level loads.
Sealing against water and other liquids is per MIL-PRF-8805.
Wire leaded models feature potted leads. The solder terminals
are epoxy sealed.
Lever Style
Roller
Lever Style
Features:
•
•
•
•
•
•
•
•
Compact design
Watertight to MIL-PRF-8805
Choice of four actuator styles
Choice of wire lead or solder termination styles
Up to 10 amps switching capability
High contact pressure for low levels
Precision operating points
Reach compliant
Plunger
Style
LIMIT SWITCHES
Overtravel
Plunger Style
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive
Motor
DWV
Electrical Life:
Mechanical Life:
50,000 cycles
50,000 cycles
10A
7.5A
4A
1000Vrms
Sea Level @ 28VDC
Single Circuit N.O. or N.C.
2 Circuit Per Pole
10A
5A
2A
10A
3.5A
N/A
50,000 feet @ 28VDC
Single Circuit N.O. or N.C.
2 Circuit Per Pole
10A
2A
N/A
500Vrms
OPERATIONAL:
Operating Force:
Release Force:
Movement Differential:
Pretravel:
Overtravel:
Strength of Actuator:
Temperature Range:
Seal:
P6-31
16 oz max
4 oz min
0.060” max
0.125” max
0.025” min
10.0 lbs.
-55°C to +85°C
P6-32
40 oz max
8 oz min
0.020” max
0.050” max
0.012” min
25.0 lbs.
P6-33
20 oz max
4 oz min
0.060” max
0.125” max
0.025” min
10.0 lbs.
P6-34
40 oz max
8 oz min
0.020” max
0.070” max
0.187” min
25.0 lbs.
P6-35
32 oz max
4 oz min
0.080” max
0.125” max
0.025” min
10.0 lbs.
P6-36
60 oz max
24 oz min
0.035” max
0.050” max
0.012” min
25.0 lbs.
P6-37
20 oz max
4 oz min
0.080” max
0.125” max
0.025” min
10.0 lbs.
P6-38
48 oz max
8 oz min
0.040” max
0.070” max
0.187” min
25.0 lbs.
Enclosure Design 3, watertight per MIL-PRF-8805
MATERIALS:
Plunger:
Lever:
Mounting Hardware:
Corrosion resistant steel
Corrosion resistant steel (where applicable)
None provided
Specifications Subject To Change Without Notice
www.ottoexcellence.com
89
P6-3
LIMIT
SWITCHES
SUBMINIATURE WATERTIGHT SEALED
FEATURING OTTO B5 SERIES BASIC SWITCHES
P6-3 PART NUMBER CODE
Single Pole
P6-3
Actuator Style
1.
Lever
2.
Plunger
3.
Roller Lever
4.
Overtravel Plunger
X
X
Circuitry
X
X
X

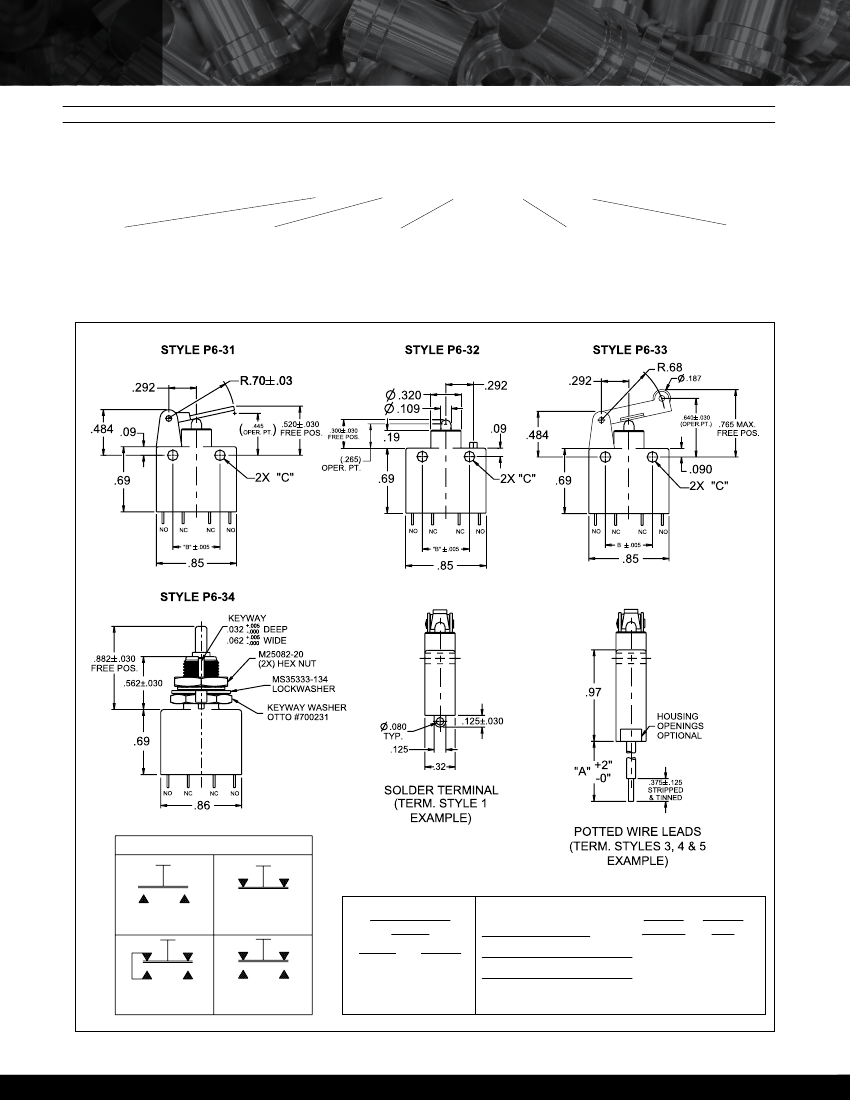

Mounting Holes
(See drawing below.)
1.
No Holes
2.
1/2” Centers for #4-40 Screws
4.
3/8” Centers for #2-56 Screws
Terminal Style
1.
Solder Terminals
3.
1’ Potted Leads
4.
3’ Potted Leads
5.
6’ Potted Leads
Serial Digit
0.
O Except for
Specials
1.
SPNO-DB, Form X
2.
SPNC-DB, Form Y
3.
SPDT-SB, Form C
4.
SPDT-DB, Form Z
CIRCUIT SCHEMATIC
NC
NC
NO
SPNO - DB
(FORM X)
NO
SPNC - DB
(FORM Y)
NC
NC
POTTED WIRE
LEADS
STYLE
3
4
5
DIM “A”
12”
36”
72”
MOUNTING HOLES:
CODE 2 FOR 4-40 SCREWS
CODE 4 FOR 2-56 SCREWS
DIM “B”
CNTRS.
.500
.375
DIM “C”
DIA.
Ø.112
± .003
Ø.089
± .003
NC
C
SPDT
(FORM C)
NO
NO
SPDT - DB
(FORM Z)
NO
90
OTTO Full Line Catalog
Specifications Subject To Change Without Notice
SUBMINIATURE WATERTIGHT SEALED
FEATURING OTTO B5 SERIES BASIC SWITCHES
LIMIT
SWITCHES
P6-3
P6-3 PART NUMBER CODE
Double Pole
P6-3
Actuator Style
5.
Lever
6.
Plunger
7.
Roller Lever
8.
Overtravel Plunger
X
X
Circuitry
X
X
X
Mounting Holes
(See drawing below.)
1.
No Holes
2.
1/2” Centers for #4-40 Screws
4.
3/8” Centers for #2-56 Screws
Terminal Style
1.
Solder Terminals
2.
Taper Tab, Quick Disconnect
3.
1’ Potted Leads
4.
3’ Potted Leads
5.
6’ Potted Leads
Serial Digit
0.
O Except for
Specials
1.
DPNO-DB, Form XX
2.
DPNC-DB, Form YY
3.
DPDT, Form CC
4.
DPDT-DB, Form ZZ

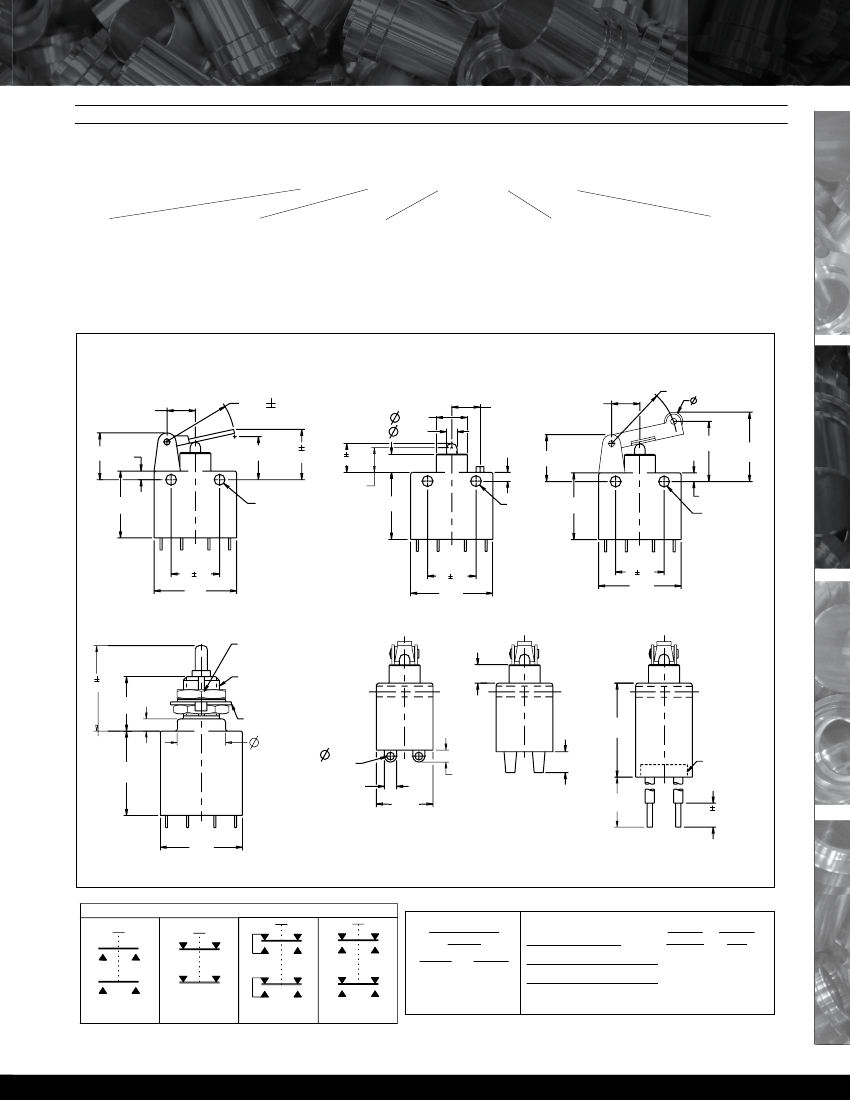

STYLE P6-35
.292
.484 .09
STYLE P6-36
R.70 .03
.520 .030
FREE POS.
.320
.109
.300 .030
FREE POS.
.292
.09
.292
STYLE P6-37
R.68
.187
LIMIT SWITCHES
(
.445
OPER. PT.
)
.19
.69
.484
.69
.640
(OPER.PT.)
.765 MAX.
FREE POS.
.69
2X "C"
(.265)
OPER. PT.
2X "C"
.090
2X "C"
NO
NC
"B"
NC
.005
NO
NO
NC
"B"
NC
.005
NO
NO
NC
B
NC
.005
NO
.85
.85
.85
STYLE P6-38
KEYWAY
.032
+.005
DEEP
-.000
.062
+.005
WIDE
-.000
3/8-32 UNEF-2A
THREAD TO
WITHIN .031
OF BODY
.882 .030
FREE POS.
.19
.56
.125
KEYWAY WASHER
OTTO P/N 700207
.500
.87
.97
.080
TYP.
.125
.585
.125
.22
TAPER TAB
QUICK DISCONNECT
(TERM. STYLE 2
EXAMPLE)
MATES WITH AMP
SERIES 78
RECEPTACLES
"A"
+2"
-0"
HOUSING
OPENINGS
OPTIONAL
NO
NC
NC
NO
.85
SOLDER TERMINAL
(TERM. STYLE 1
EXAMPLE)
.375 .125
STRIPPED
& TINNED
POTTED WIRE LEADS
(TERM. STYLES 3, 4 & 5
EXAMPLE)
CIRCUIT SCHEMATIC
NC
NC
C
NO
NO
NC
NO
NC
C
DPNC - DB
(FORM YY)
DPDT
(FORM CC)
NO
NO
DPDT - DB
(FORM ZZ)
NO
NC
NO
NC
NO
NC
NC
NC
NC
POTTED WIRE
LEADS
STYLE
3
4
5
DIM “A”
12”
36”
72”
MOUNTING HOLES:
CODE 2 FOR 4-40 SCREWS
CODE 4 FOR 2-56 SCREWS
DIM “B”
CNTRS.
.500
.375
DIM “C”
DIA.
Ø.112
± .003
Ø.089
± .003
NO
DPNO - DB
(FORM XX)
NO
Specifications Subject To Change Without Notice
www.ottoexcellence.com
91
