1SV305,L3F(T

Description
Variable Capacitance Diode
CategoryDiscrete semiconductor    diode
File Size154KB,3 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Environmental Compliance
Download Datasheet Parametric View All

1SV305,L3F(T Overview

Variable Capacitance Diode

1SV305,L3F(T Parametric

Parameter NameAttribute value
JESD-30 codeR-PDSO-F2
Package formSMALL OUTLINE
Terminal formFLAT
Terminal locationDUAL
Number of terminals2
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum operating temperature125 °C
Reach Compliance CodeCompliant
Samacsys StatusIncomplete
Samacsys PartID19515095
Samacsys ManufacturerToshiba
Objectid8288756633
ECCN codeEAR99
Samacsys Pin Count0
Is SamacsysN
Samacsys Modified On2024-08-30 07:07:43
YTEOL7.12
Is it Rohs certified?Yes
Diode typeVARIABLE CAPACITANCE DIODE
Number of components1
surface mountYES
ConfigurationSINGLE
Nominal diode capacitance18.3 pF
Diode component materialsSILICON
Diode Capacitance Tolerance5.46%
Minimum diode capacitance ratio2.8
frequency bandVERY HIGH FREQUENCY
Varactor Diode ClassificationABRUPT

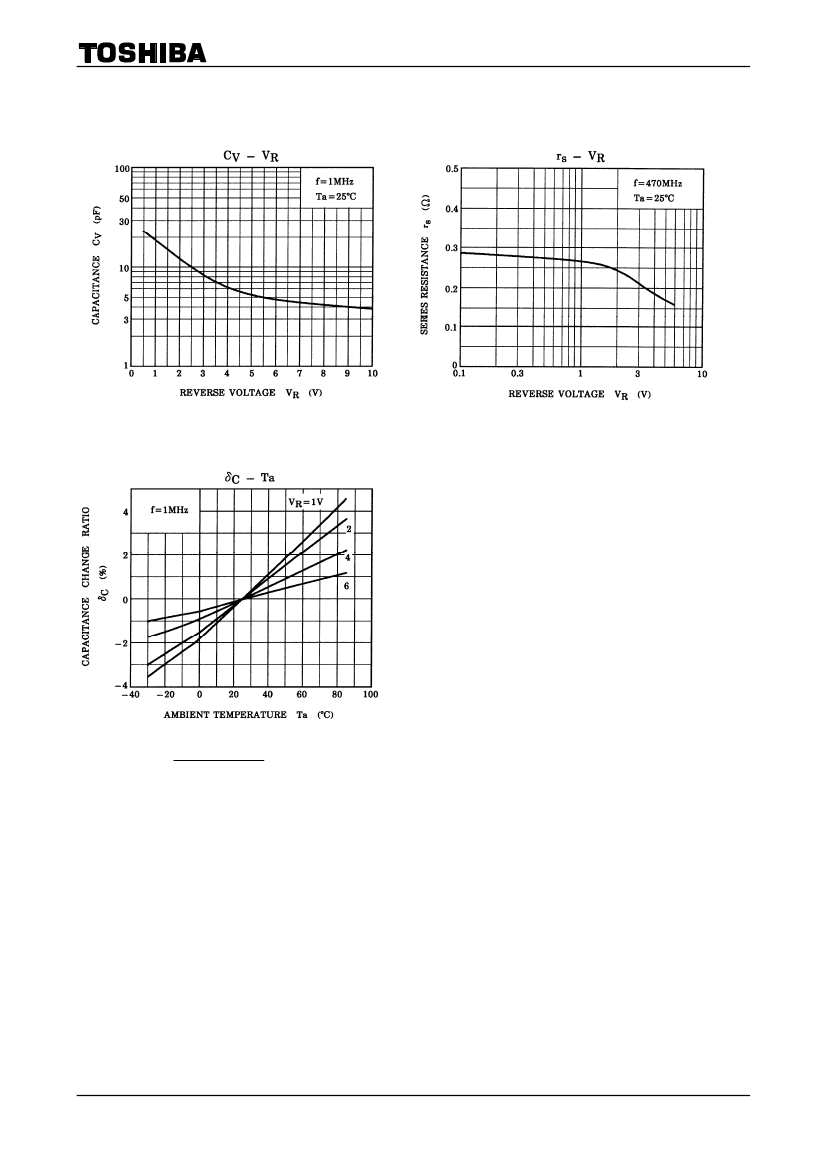

1SV305
TOSHIBA Variable Capacitance Diode
Silicon Epitaxial Planar Type
1SV305
VCO for VHF Band Radio
Small package
High capacitance ratio: C
1V
/ C
4V
= 3.0 (typ.)
Low series resistance: r
s
= 0.27
(typ.)
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Reverse voltage
Junction temperature
Storage temperature range
Symbol
V
R
T
j
T
stg
Rating
10
125
−55
to 125
Unit
V
°C
°C
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling
Precautions”/“Derating Concept and Methods”) and individual
reliability data (i.e. reliability test report and estimated failure rate,
etc).
JEDEC
JEITA
TOSHIBA
1-1G1A
Weight: 0.0014 g (typ.)
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Reverse voltage
Reverse current
Capacitance
Capacitance
Capacitance ratio
Series resistance
Symbol
V
R
I
R
C
1V
C
4V
C
1V
/ C
4V
r
s
I
R
=
1
μA
V
R
=
10 V
V
R
=
1 V, f
=
1 MHz
V
R
=
4 V, f
=
1 MHz
V
R
=
1 V, f
=
470 MHz
Test Condition
Min
10
17.3
5.3
2.8
Typ.
18.3
6.1
3
0.27
Max
3
19.3
6.6
0.32
Unit
V
nA
pF
pF
Ω
Marking
Start of commercial production
1997-03
1
2014-03-01
