284524: DescriptionD Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

284524 Overview

D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal, #4-40, Plug,

284524 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
subject depth	0.583 inch
body length	1.22 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	5.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal length	0.118 inch
Terminal pitch	2.7432 mm
Termination type	PRESS FIT
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N
Base Number Matches	1

Preview

Download Datasheet

View All

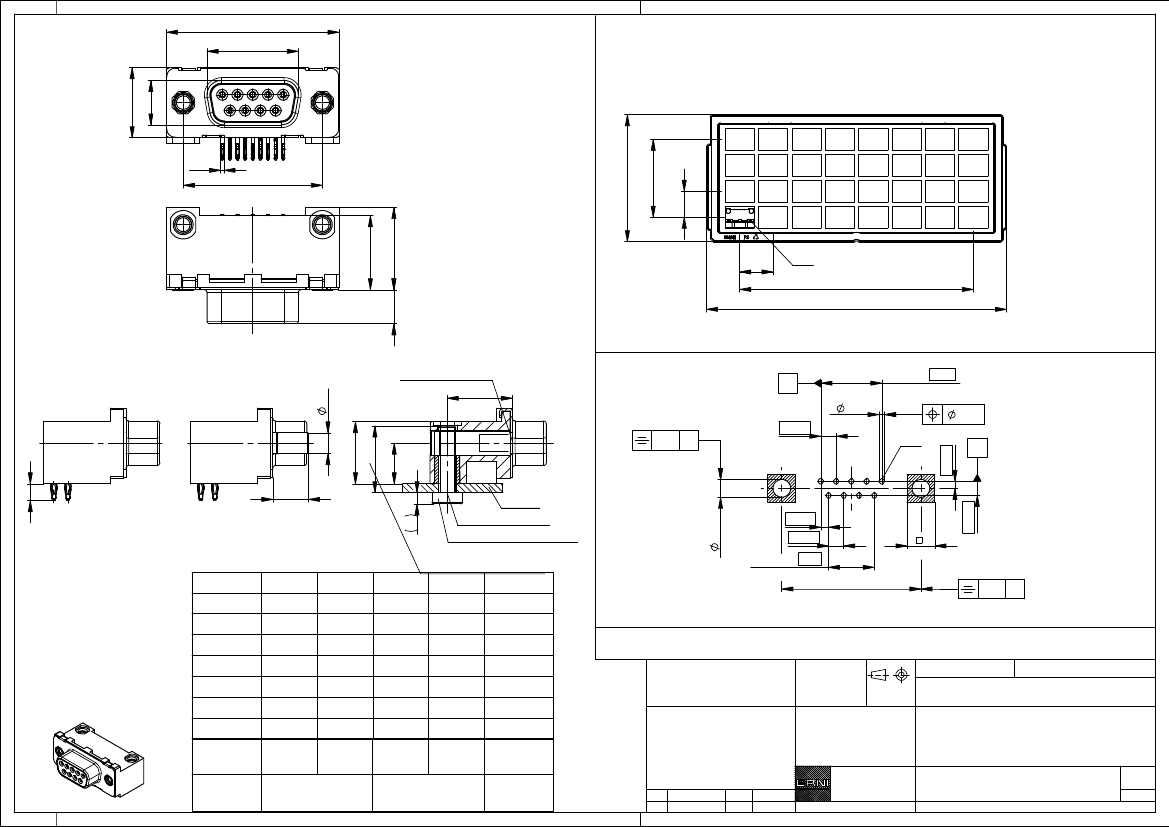

31

-0,4

+0,2

16,4

-0,2

Verpackt in Tray

Verpackungseinheit 32 Stck

12,6

±0,3

tray packaging

packaging unit 32 pcs

8

-0,2

25

±0,1

138

max.

0,6

3 x 28 = 84

13,3

14,8

28

36

6,3

-0,25

Pin 1

7 x 36 = 252

325

max.

Mutter /

nut

Gewindetiefe 5,9 mm

Bolzen /

bolt

Gewindetiefe 6 mm

Anwendungsbeispiel /

example of use

Gewinde A /

thread A

3,7

11,7

Sonstige Angaben siehe Zeichnung 204629 /

Additional inications according to drawing 204629

depth of thread 5,9 mm

depth of thread 6 mm

Layoutvorschlag

recommended layout

0,05

B

A

1

-0,06

2,74

+0,09

4 x 2,74 = 10,96

0,05

Pin 1

1,27

B

11,2

±0,1

6,4

2

3

7,3

±0,1

12

LP /

PCB

( Schraube /

Screw

DIN 7984 )

3,2

±0,1

Gewinde B /

thread B

empfohlene Gewindelänge /

M3

#4-40

M3

Sonstige Angaben siehe 164062 /

additional indications according to 164062

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to production documentation

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

1,37

2,74

3 x 2,74 = 8,22

25

±0,05

5

recommended thread length

284526

Anschlussbereich verzinnt

#4-40

M3

2,54

0,05

A

terminal area tin plating

class: 2

Anforderungsstufe: 2

284525

#4-40

M3

#4-40

M3

#4-40

M3

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

284524

#4-40

M3

Gewinde A Gewinde B Gewinde A Gewinde B

thread A

thread B

thread A

thread B

Ident-Nr.

Tray /

tray

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

c

Index

09.12.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S-09-EE-SV-Standard-BA8-ZV

part-no.

Quermutter

nut

Querbolzen

bolt

Bemerkung

www.ERNI.com

Class

remark

224961

TMCS

I

A3

284524 Related Products

	284524	284525	284526
Description	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal, #4-40, Plug,	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal, #4-40, Plug,	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal, #4-40, Plug,
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
subject depth	0.583 inch	0.583 inch	0.583 inch
body length	1.22 inch	1.22 inch	1.22 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	3.336 N	3.336 N	3.336 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3	e3	e3
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation option 1	#4-40	#4-40	#4-40
Installation option 2	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm
Rated current (signal)	5.5 A	5.5 A	5.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL
Housing size	1/E	1/E	1/E
Terminal length	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.7432 mm	2.7432 mm	2.7432 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	9	9	9
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.3058 N	.3058 N	.3058 N
Base Number Matches	1	1	1
