48-6-RC-R-OR-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 48-6-RC-R-OR-S

48-6-RC-R-OR-S: DescriptionPushbutton Switch, SPST, Latched, 0.01A, 12VDC, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size152KB，2 Pages; ManufacturerITW Switches; Environmental Compliance

Download Datasheet Parametric View All

48-6-RC-R-OR-S Overview

Pushbutton Switch, SPST, Latched, 0.01A, 12VDC, Solder Terminal, Through Hole-straight

48-6-RC-R-OR-S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	BUTTON TYPE
body height	9.14 mm
Body length or diameter	17.45 mm
Maximum contact current (DC)	0.01 A
Contact (DC) maximum rated R load	.01A@12VDC
Maximum contact voltage (DC)	12 V
illumination	RED LED
JESD-609 code	e4
Manufacturer's serial number	48-6
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	3 N
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
seal	IP67
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

E L E C T R O

SNAP ACTION

M E C H A N I C A L

CUSTOM ASSEMBLIES

Series 48

PUSH BUTTON

SEALED

ROCKER

I N D I C AT O R

SLIDE

VA N D A L R E S I S TA N T

I L L U M I N AT E D

ACTIVE TOUCH

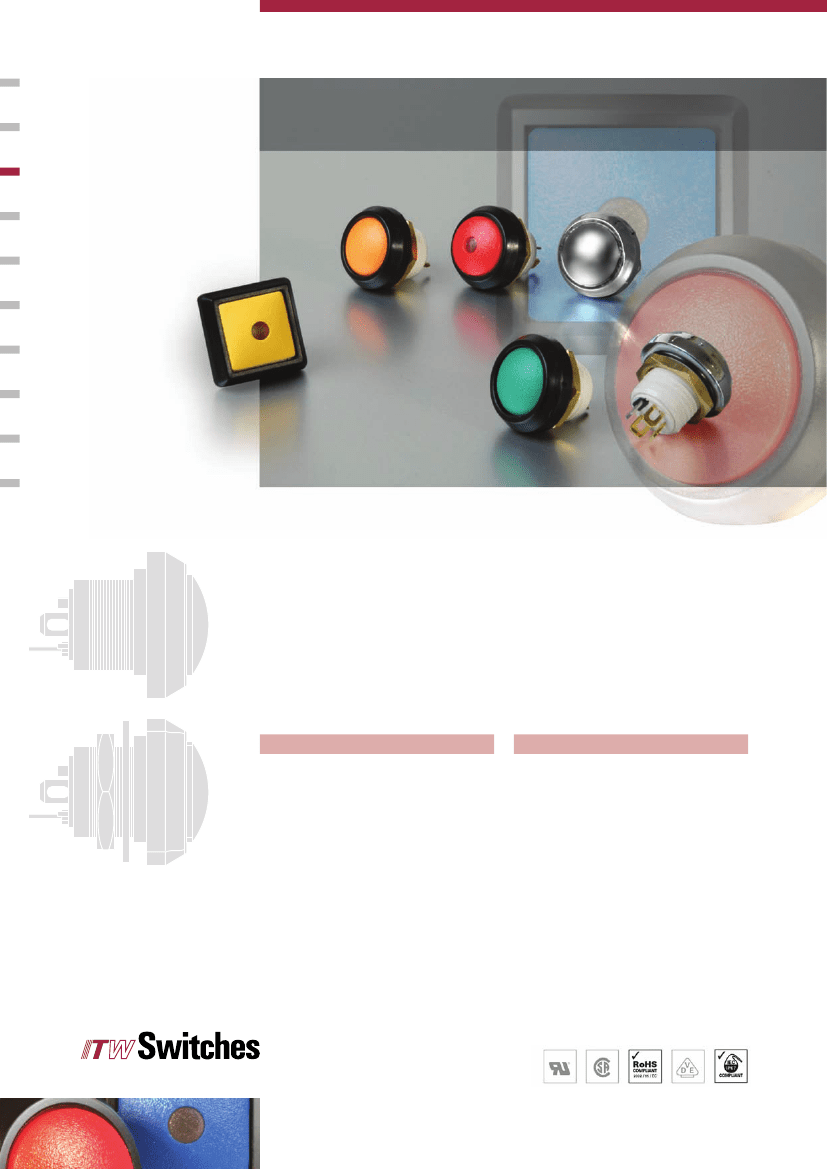

Flex-Tech Miniature Sealed

Pushbutton Switches

This multi-option sealed pushbutton series offers the utmost in choices of

mounting style, button colours, terminations, bezels, lighting and momentary or

maintained switching. The Series 48 offers all these options in one compact

package size.

Key Features

Typical Applications

Momentary or maintained action

Gold contacts

Large choice of button colours

Choice of LED colours

(or non-illuminated versions)

Long life

Solder or PC terminals

Panel sealed to IP67

Square and round bezel versions

available

Office equipment

Medical equipment

Industrial machinery

Outdoor controls

Mass transportation

Food processing equipment

Standards / Agency / Ratings

Patent # 6,965,085
