1-1676959-0

Description
1 ELEMENT, 560uH, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT
CategoryPassive components    inductor
File Size102KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

1-1676959-0 Overview

1 ELEMENT, 560uH, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT

1-1676959-0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknow
ECCN codeEAR99
DC Resistance1 Ω
Nominal inductance(L)560 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial number3623
Number of functions1
Number of terminals2
Minimum quality factor (at nominal inductance)23
Maximum rated current0.78 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Tolerance10%
Base Number Matches1
C orporate Hom e
|
Electronic Components
|
Se gm e nts
|
W ho W e Are
My Account
Searc h
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Passive C omponents
>
Product Feature Selector
> Product Details

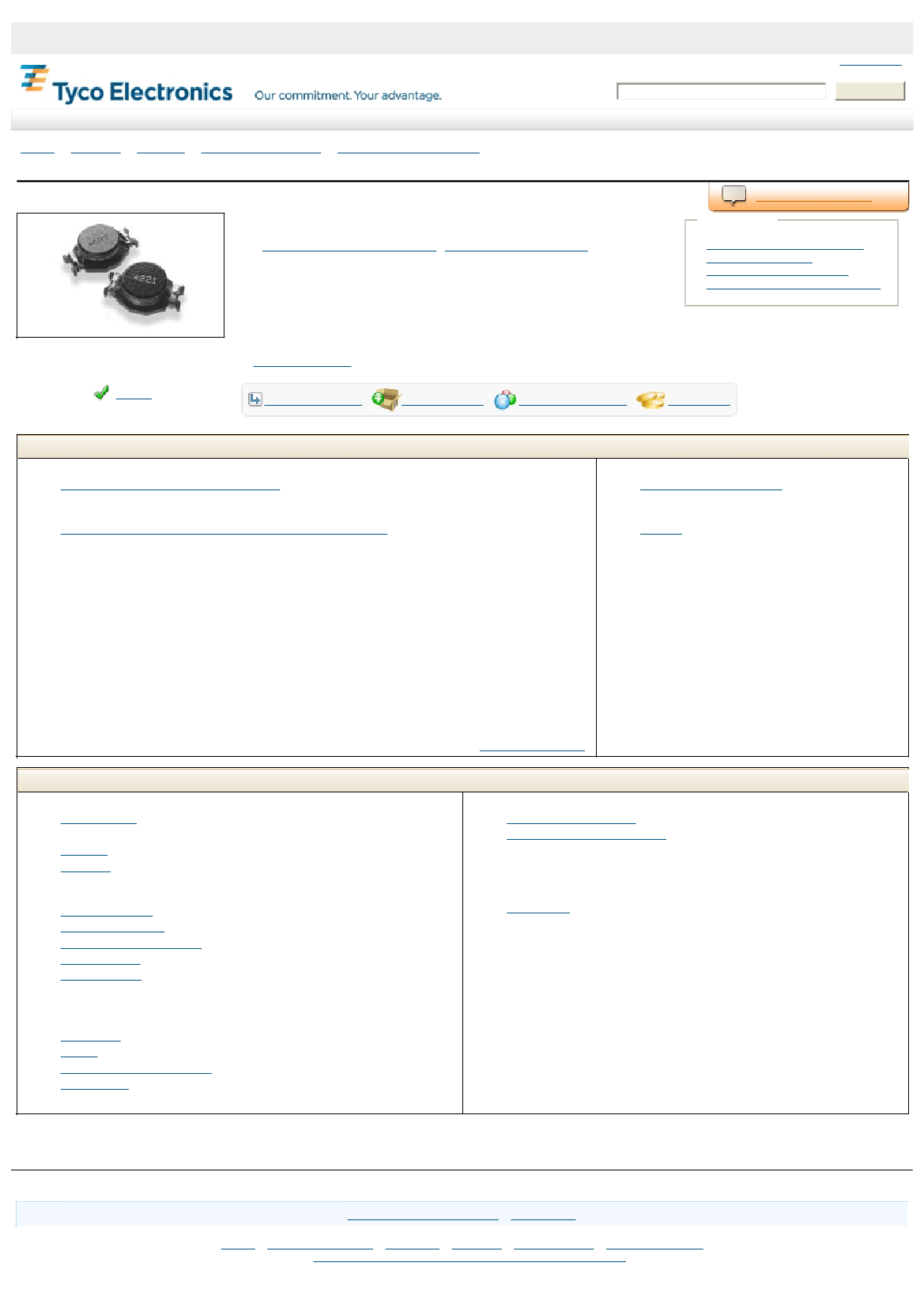

3623A561KT Product Details
Live Product Chat
Inductors
Always EU R oHS/ELV C om plia nt
(
Sta te m e nt of C om plia nce
)
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
3623A561KT
(1-1676959-0)
T E I nternal N umber: 1 - 1 6 7 6 9 5 9 - 0
Product Highlights:
l
Inductor
l
Inductor Type = Unshielded Power Wirewound
l
Lead Type = Surface Mount Terminals
l
Wirewound
l
Inductance = 560 ?H
View all Features
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Active
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
SMD POWER INDUC TOR SERIES 3623
(PDF, English)
Catalog Pages/Data Sheets:
l
SMD Power Inductor - Type 3623 Series - Tyco Electro...
(PDF, English)
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type
= Inductor
l
Inductor Type = Unshielded Power Wirewound
l
Element
= Wirewound
l
Shielded
= No
Electrical Characteristics:
l
Inductance (?H)
= 560
l
DC Resistance (?)
= 1
l
C urrent, Maximum (mA)
= 780
l
Quality Factor
= 23
l
Package Type
= Taped and Reeled
l
Tolerance (%) = 10
Body Related Features:
l
Lead Type
= Surface Mount Terminals
l
Series
= 3623
l
Package, C omponent Size
= 22.0 x 15.0
l
Mount Style
= Surface Mount
Industry Standards:
l
RoHS/ELV C ompliance
= RoHS compliant, ELV compliant
l
Lead Free Solder Processes
= Reflow solder capable to 245?C ,
Reflow solder capable to 260?C
l
RoHS/ELV C ompliance History = Always was RoHS compliant
Operation/Application:
l
Application
= Power C ircuitry
Other:
l
Brand = Sigma Inductors
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Provide Website Feedback
|
Need Help?
Home
|
C ustomer Support
|
Suppliers
|
Site Map
|
Privacy Policy
|
Browser Support
©
2009 Tyco Electronics C orporation All Rights Reserved
