FP series
New!
Fully illuminated pushbutton switches - bushing Ø 26 mm - momentary or latching

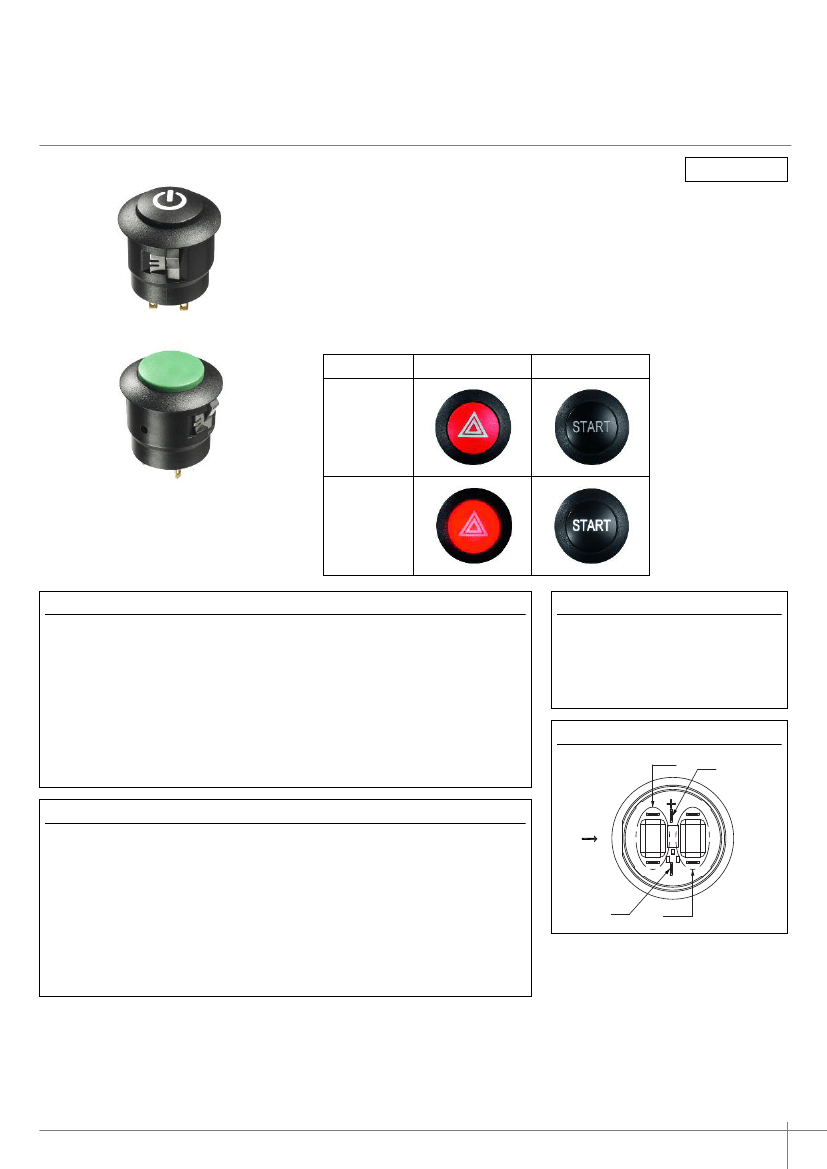

Distinctive features and specifications
K
Full actuator or symbol illumination
K
Suited for integrated designs
K
Large but lightweight
K
Snap-in mounting
K
Pad printed or laser etched symbols
Pad printing
Laser
FP261503-A-R1
Non-illuminated
Illuminated
ELECTRICAL SPECIFICATIONS
MATERIALS
• Max. current/voltage rating with resistive load :
- silver contacts (code 2) : 4A 12VDC
- gold plated contacts (code 4) : 200mA 12VDC
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 1 GΩ min. at 500VDC
• Dielectric strength : 1.000 Vrms 50 Hz min.
• Electrical life at full load :
- Momentary models : 1 million cycles (gold plated contacts)
400.000 cycles (silver contacts)
- Latching models : 200.000 cycles
GENERAL SPECIFICATIONS
• Case : PA46
• Actuator : PA12
• Bushing/ bezel : ABS
• Contacts : silver (code 2)
or silver, gold plated (code 4)
WIRING DIAGRAM
©
Flat
POLE 2
LED
+
• Front panel sealing : IP54 according to IEC 60529 with panel gasket
and 2 mm panel thickness
• Panel thickness : 1,5 (.059) to 2 mm (.078) with panel gasket
2 (.078) to 2,5 mm (.885) without panel gasket
• Total travel : 2,5 mm
± 0,5 mm
• Typical operating force : 8N
± 2N
• Low level or mechanical life :
- Momentary models : 1 million cycles
- Latching models : 200.000 cycles
• Operating temperature : -40°C to +75°C
LED
-
POLE 1
CFP24W-A
The company reserves the right to change specifications without notice.
APEM
www.apem.com
1
FIC
EC
ind
le
New!
Fully illuminated pushbutton switches - bushing Ø 26 mm - momentary or latching
Overview
FP series
FP
SERIES
Actuators
Model
P
R
F
Round, flat
Round, curved
Round, curved,
flush
New!
Electrical functions
1
3
OFF - ON
Normally open
(NO)
1
Terminals
Solder lugs
B
Snap-in, dia. 26 mm
LED control and No of poles
A
B
C
D
E
Non-illuminated, 1 pole
Non-illuminated, 2 poles
Independent, 1 pole
Independent, 2 poles
Independent, 1 pole, dimming LED
Contact mat.
2
4
Silver
Silver, gold
plated
Actuator colours
1
2
3
4
5
6
7
9
Blue
Black
Green
Grey
Yellow
Red
White/natural
Orange
1
2
3
4
5
6
7
Bezel colours
Blue
Black
Green
Grey
Yellow
Red
White/natural
X
A
B
C
D
E
F
G
LED colours
Non-illum.
Blue
Green
Red
Yellow
White
Red/green
Red/blue
0
1
2
LED resistors
No resistor
supplied
12V resistor
24V resistor
Symbols
See end of series
Marking
X
1
2
No marking
Pad printing
Laser
ABOUT THIS SERIES
On the following pages, you will find successively :
model structure of switches and options in the same order as in above chart
Dimensions :
first dimensions are in mm while inches are shown as bracketed numbers.
: please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
NOTICE
Mounting accessories
: Standard hardware supplied : 1 hex nut and 1 panel gasket
Packaging unit
: 20 pieces
2
www.apem.com
APEM
FP series
New!
Fully illuminated pushbutton switches - bushing Ø 26 mm - momentary or latching
• Curved or flat actuator
To order a product, replace • with one of the codes selected under “LED control
and number of poles” on next page, then add the desired options.

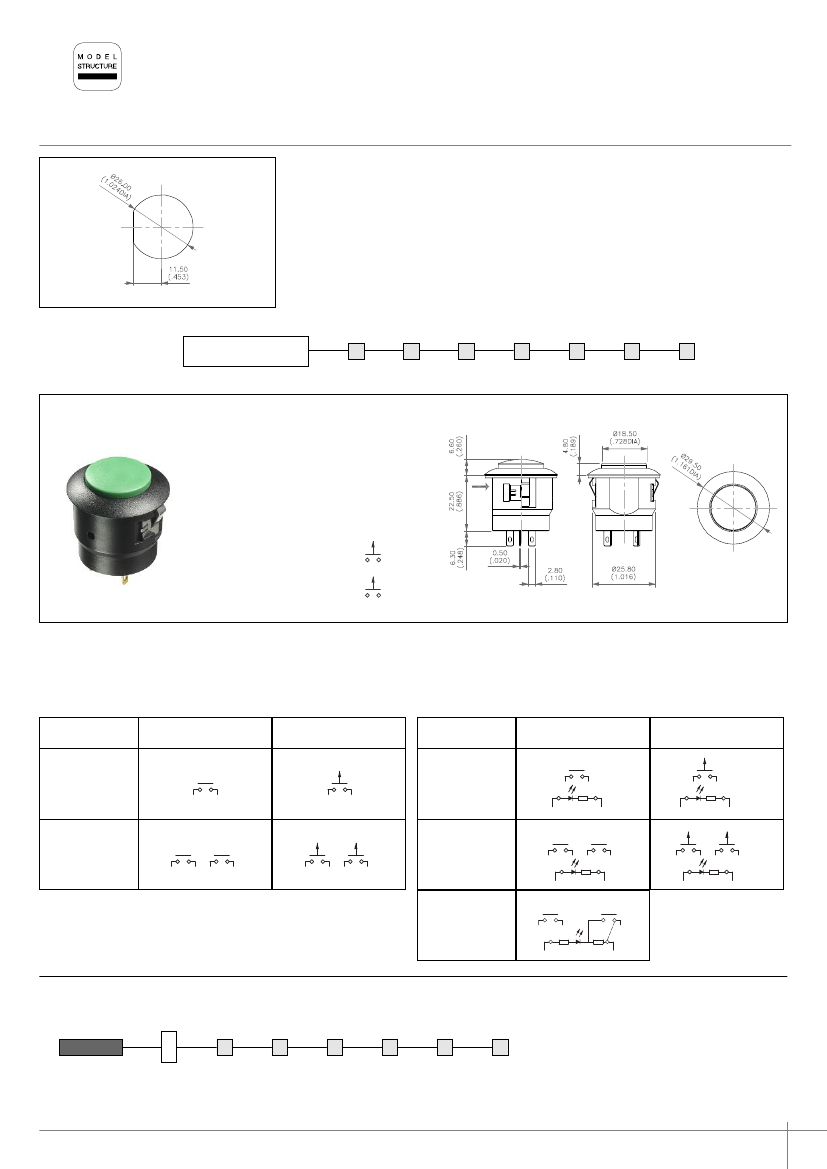

MODEL
STRUCTURE
Solder lug terminals
LATCHING
©
Flat
Curved actuator
FPBR1•1
Flat actuator
FPBP1•1
MOMENTARY
(
NO
)
OFF
OFF
-
ON
ON
Curved actuator
FPBR3•1
Flat actuator
FPBP3•1
LED CONTROL AND NUMBER OF POLES
Complete the model numbers on previous pages with one of the following codes.
Function 1 (latching)
Non-illuminated
one pole
A
CFPSH1-A
CFPSH1-A
Function 3 (momentary)
Independent
one pole
C
CFPSH1-A
CFPSH1-A
CFPSH2-A
CFPSH2-A
Function 1 (latching)
Function 3 (momentary)
CFPSH2-A
CFPSH2-A
+
+
-
-
+
+
CFPSH5-A
CFPSH5-A
-
-
+
+
CFPSH5-A
CFPSH5-A
-
-
+
+
CFPSH6-A
CFPSH6-A
-
-
CFPSH6-A
CFPSH6-A
Non-illuminated
two poles
B
CFPSH3-A
CFPSH3-A
Independent
two poles
D
CFPSH3-A
CFPSH3-A
CFPSH4-A
CFPSH4-A
CFPSH4-A
CFPSH4-A
+
+
-
-
+
+
CFPSH7-A
CFPSH7-A
-
-
+
+
CFPSH7-A
CFPSH7-A
-
-
+
+
CFPSH8-A
CFPSH8-A
-
-
CFPSH8-A
CFPSH8-A
Independent
one pole
Dimming LED
E
+
-
dotted line = jumper to
be wired by the user.
LED- has to be wired to
one pin of pole 2.
CONTACT MATERIALS
FICHIER: CFPSH-P5
FICHIER: CFPSH-P5
FICHIER: CFPSH-P5
FICHIER: CFPSH-P5
ECHELLE: 0.625
ECHELLE: 0.625
ECHELLE: 0.625
ECHELLE: 0.625
indice A
indice A
indice A
indice A
le 19/01/11
le 19/01/11
le 19/01/11
le 19/01/11
CFP30SHE-A
2
4
APEM
Silver
Silver, gold plated
www.apem.com
FICHIER: CFP30SH-P4
ECHELLE: 0.625
indice A
le 03/03/2014
3
FP series
New!
Fully illuminated pushbutton switches - bushing Ø 26 mm - momentary or latching
Options
SYMBOLS
XX
No symbol
Ø
(.6 16
30 .00
DI
A)
©
Flat
Available symbols
- see next pages.
Marking colour
White marking for illuminated actuators (laser etching) and non-illuminated
black actuators (pad printing). Black marking for non-illuminated colour
actuators (pad printing). Other : on request.
Marking area
The symbol will be included in the hatched area.
©
CFPZL-A
FICHIER: CFPZL-P6
ECHELLE: 0.625
indice A
le 19/01/11
APEM
www.apem.com
5
