SAW Components
SAW RF filter
Data sheet
Application
s
s
s
s
s
B5131
806.0 MHz
RF filter for LTE 800 MHz BTS Tx
Unbalanced to unbalanced operation
Low amplitude ripple
Usable passband 30 MHz
No matching required for operation at 50
Ω
Features
s
s
s
s
s
s
s
s
s

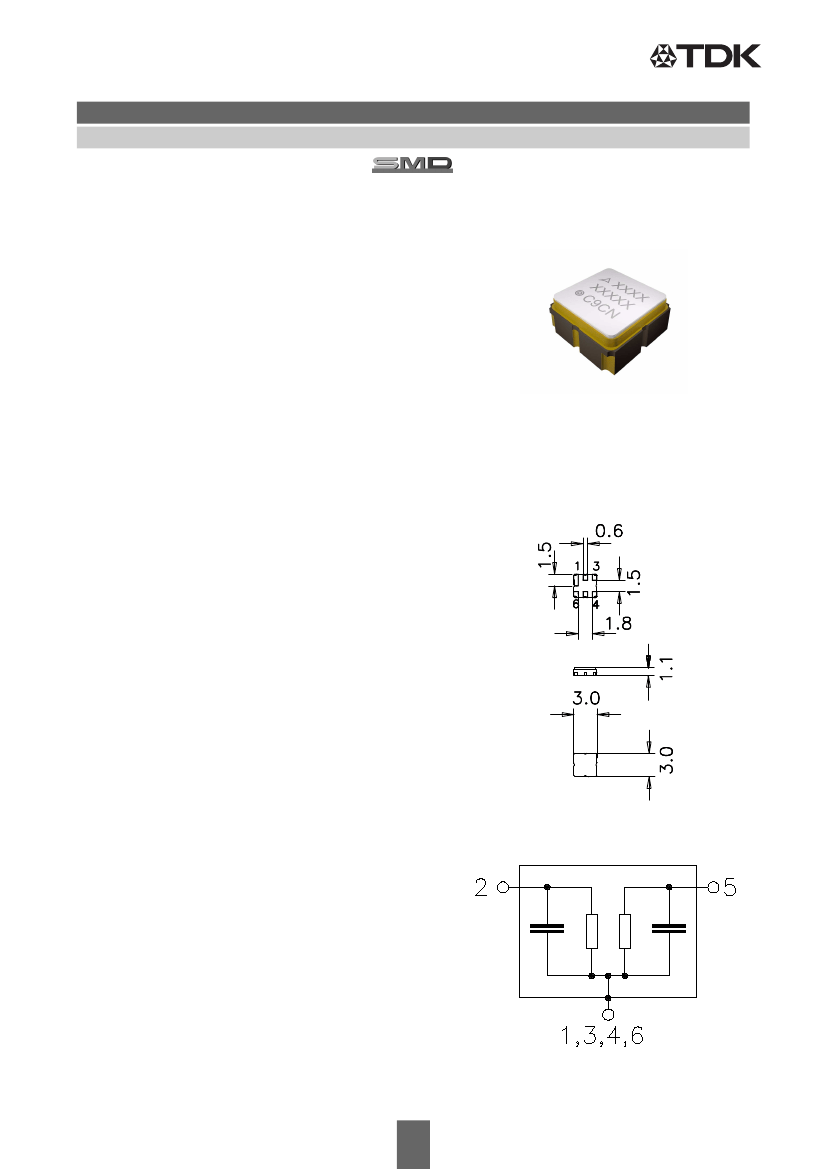

Package size 3.0 x 3.0 x 1.1 mm
3
Package code DCC6C
RoHS compatible
Approximate weight 0.037 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Electrostatic Sensitive Device
(ESD)
Moisture Sensitivity Level
1
Filter surface passivated
Pin configuration
s
2
s
5
s
1, 3, 4, 6
Input
Output
To be grounded
Please read
cautions and warnings and
important notes
at the end of this document.
2
Oct 08, 2015
SAW Components
SAW RF filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T =
Z
S
=
Z
L
=
–40 ˚C to +95 ˚C
50
Ω
50
Ω
min.
Center frequency
Minimum insertion attenuation
Maximum insertion attenuation
791.0 ... 821.0
Amplitude ripple
(p-p)
791.0 ...
Group delay ripple
(p-p)
791.0 ...
Input return loss
791.0
Output return loss
791.0
f
C
α
min
α
max
MHz
∆α
821.0
MHz
∆τ
821.0
MHz
—
30
50
—
0.8
1.0
—
1.8
3.0
—
—
typ.
@ 25 ˚C
806.0
1.2
max.
—
—
B5131
806.0 MHz
MHz
dB
dB
dB
ns
...
821.0
MHz
9
11
—
dB
...
821.0
MHz
α
rel
9
11
—
dB
Relative attenuation
(relative to
α
min
)
1.0 ... 715.4 MHz
715.4 ... 770.0 MHz
832.0
880.0
944.0
921.0
... 880.0
... 921.0
... 960.0
... 3800.0
MHz
MHz
MHz
MHz
25
15
13
20
27
25
31
23
15
26
30
30
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
Please read
cautions and warnings and
important notes
at the end of this document.
3
Oct 08, 2015
SAW Components
SAW RF filter
Data sheet
B5131
806.0 MHz
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
ESD voltage
Input power at
791.0 ... 821.0 MHz
791.0 ... 821.0 MHz
1)
T
T
stg
V
DC
V
ESD
P
IN
–45/+125
–45/+125
0
100
1)
23
15
˚C
˚C
V
V
dBm
dBm
Machine Model
cw, 2 h, 95 ˚C
cw, 100000 h, 95 ˚C
acc. to JESD22-A115B (MM - Machine Model), 10 negative & 10 positive pulses
Please read
cautions and warnings and
important notes
at the end of this document.
4
Oct 08, 2015
SAW Components
SAW RF filter
Data sheet

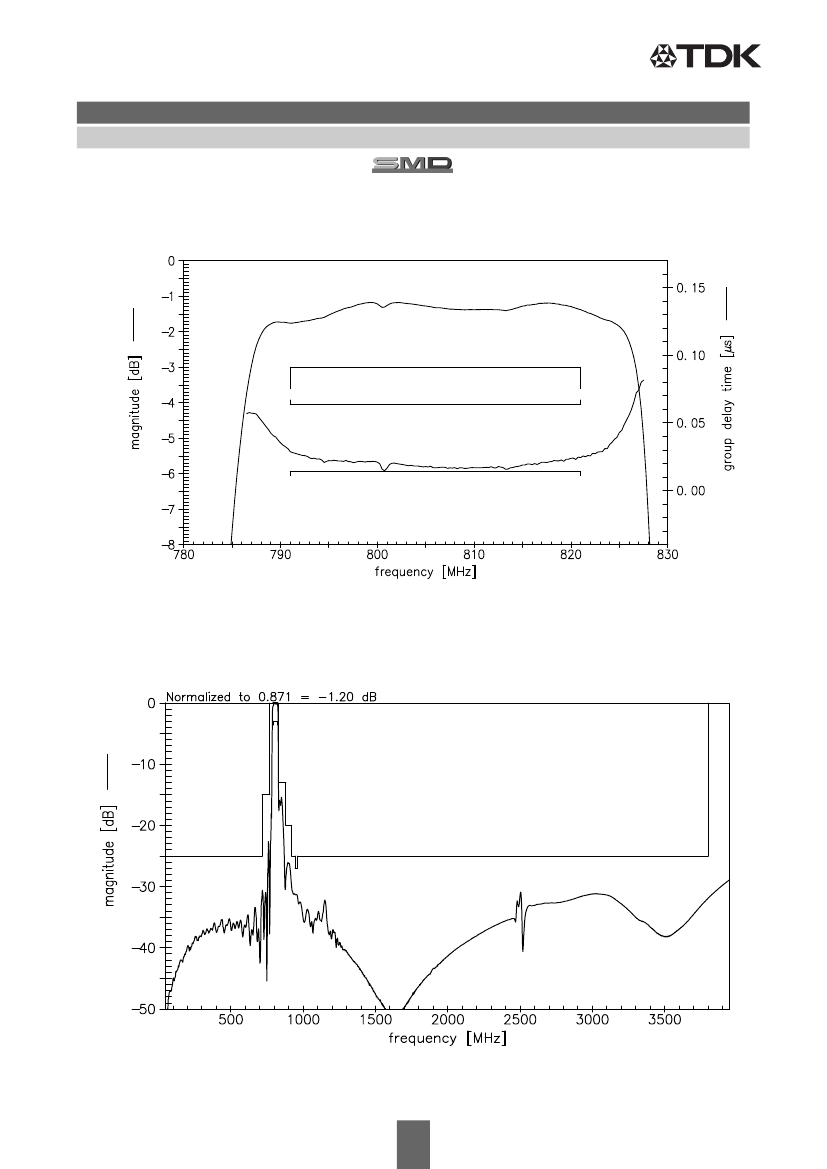

Transfer function
(S21, narrowband)
B5131
806.0 MHz
Transfer function
(S21, wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
Oct 08, 2015
