2MHR-12-VTA-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2MHR-12-VTA-N

2MHR-12-VTA-N: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size315KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

2MHR-12-VTA-N Overview

Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator

2MHR-12-VTA-N Parametric

Parameter Name	Attribute value
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
polarization key	POLARIZED HOUSING
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL, CSA
Objectid	315322147
Reach Compliance Code	Compliant
ECCN code	EAR99
Is Samacsys	N
YTEOL	0
Terminal length	0.118 inch
body width	0.236 inch
subject depth	0.394 inch
body length	1.092 inch
Contact to complete cooperation	SN ON CU
Contact resistance	20 mΩ
Durability	500 Cycles
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Rated current (signal)	1 A
Terminal pitch	2.0066 mm
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Number of rows loaded	2
Total number of contacts	12
Insulator color	BLACK
Plug contact pitch	0.079 inch
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Termination type	SOLDER
Contact completed and terminated	TIN OVER COPPER
Contact style	SQ PIN-SKT
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
PCB contact row spacing	2.0066 mm
Contact material	BRASS
contact mode	RECTANGULAR

Preview

Download Datasheet

View All

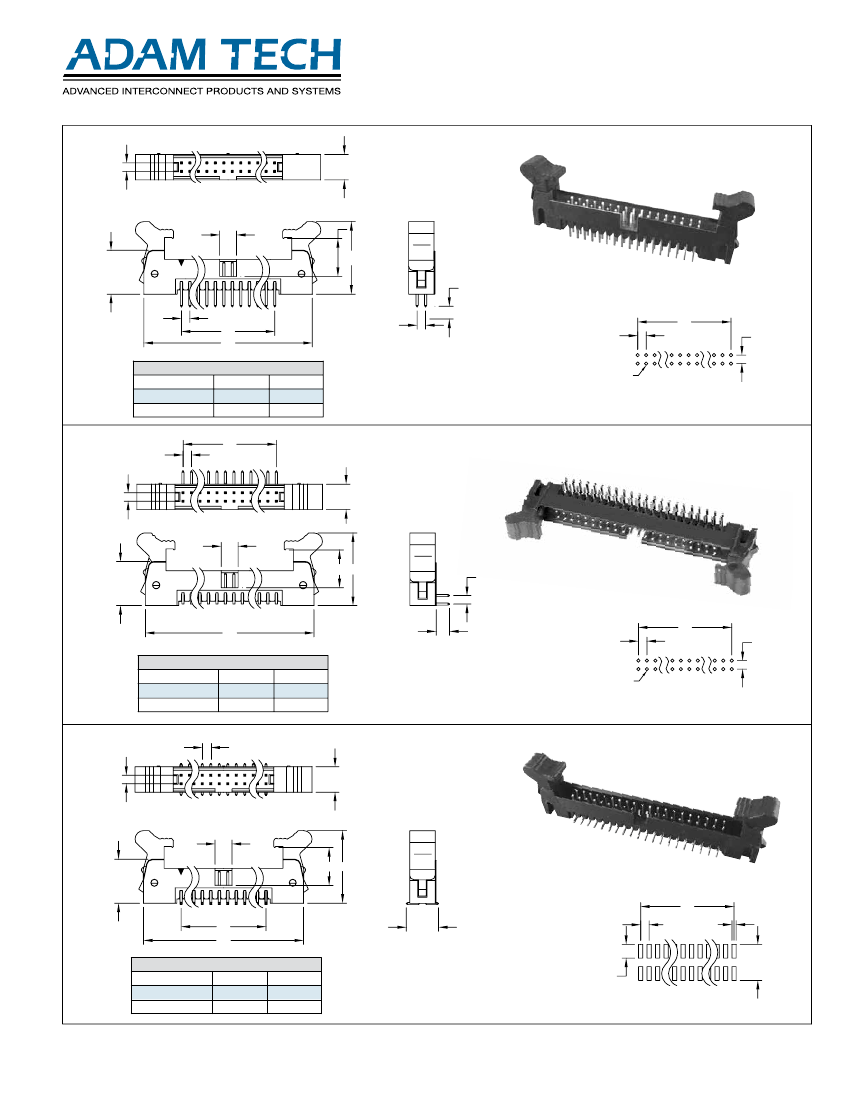

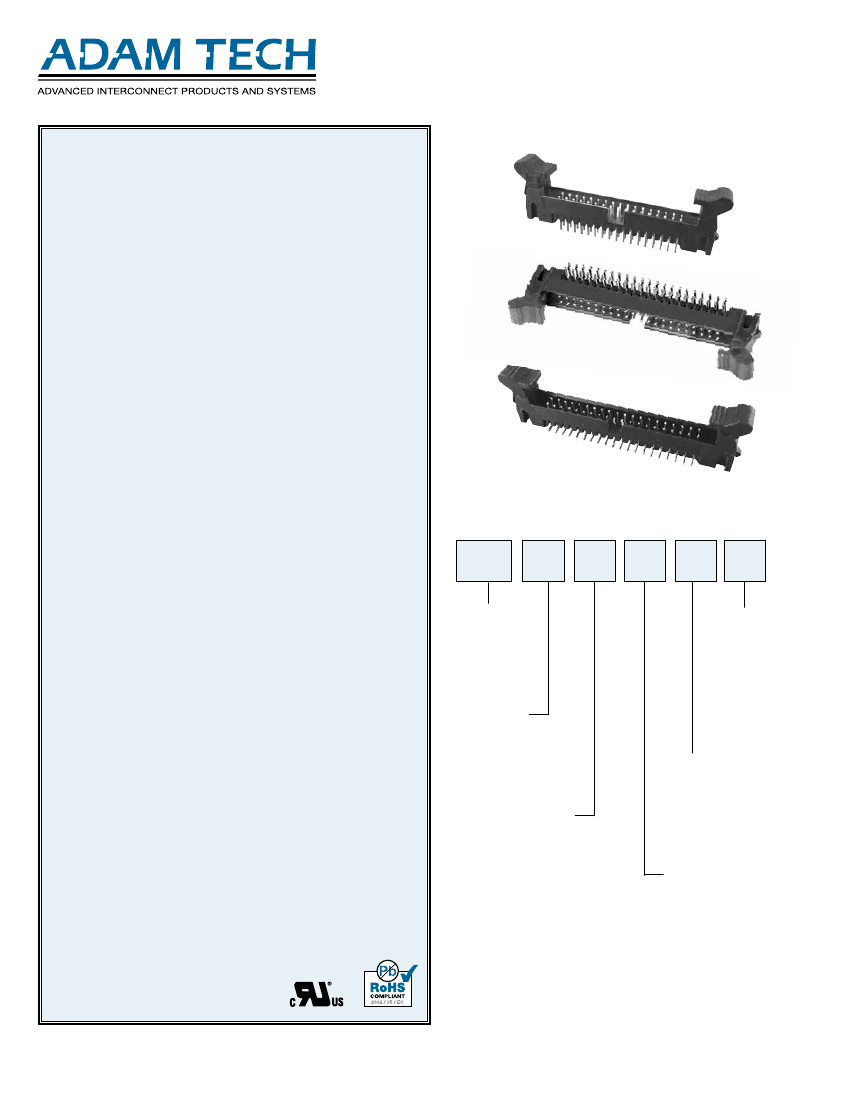

2.00mm LATCH HEADER

.079" [2.00] CENTERLINE

2MHR SERIES

INTRODUCTION:

Adam Tech 2MHR Series 2mm Latch Headers are dual row, PCB

mounted, shrouded headers with latches for use with dual row

IDC female socket connectors. In addition to providing a shock

and vibration proof connection the locking latches also act as

ejectors to remove the mating socket. Our low profile, space

saving design has a center slot for the socket’s polarization

bump. Adam Tech’s Latch Headers are available in Straight PCB

Mount, Right Angle PCB and SMT Mounting. Plating options

include choice of Gold, Tin or Selective Gold

FEATURES:

Integral Latches provide Shock and Vibration Proof connection

Slot for IDC socket Polarization bump

Straight PCB, Right Angle PCB and SMT versions

Gold, Tin or Selective Gold plating

Elevated option available

Hi-Temp insulator available

MATING SOCkETS:

2mm X 2mm Dual row IDC sockets

SPECIFICATIONS:

Material:

Insulator: PBT, glass reinforeced, rated UL94V-0

Insulator Color: Black (Gray optional)

Contacts: Brass

Plating:

U = Gold over nickel underplate overall

SG = Gold over nickel on contact area,

Tin over copper underplate on tails.

T = Tin over copper underplate overall

Electrical:

Operating voltage: 250V AC max.

Current rating: 1 Amp max

Contact resistance: 20 mΩ max. initial

Insulation resistance: 5000 MΩ min.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Mating durability: 500 Cycles min.

Temperature Rating:

Operating temperature: -40°C to +105°C

PACkAGING:

Anti-ESD plastic trays

SAFETy AGENCy APPROVALS:

UL Recognized & CSA Certified, File no. E224053

ORDERING INFORMATION

2MHR

SERIES

INDICATOR

2MHR

2mm Shrouded

Header w/Latches

LATCHING

FEATURES

= Short latches

(for sockets

w/o strain

relief)

= Long latches

(for sockets

w/strain relief)

= No latches

POSITIONS

10, 12, 14, 16, 20, 22,

24, 26, 30, 32, 34, 40,

44, 48, 50, 60, 64, 68

PIN LENGTHS

= Standard length

MOUNTING ANGLE

= Straight Mount

= Right Angle Mount

solder tail

= Special length,

customer specified

This series is availabe in an

elevated version similar to

our BHRE Series as shown

on pgs. 322-323

CONTACT PLATING

= Gold plated

= Gold plating in

contact area, Tin

plated solder tails

= Tin plated

OPTIONS:

Add designator(s) to end of part number

= High-temp insulator for high-temp soldering processes

304

www.adam-tech.com
