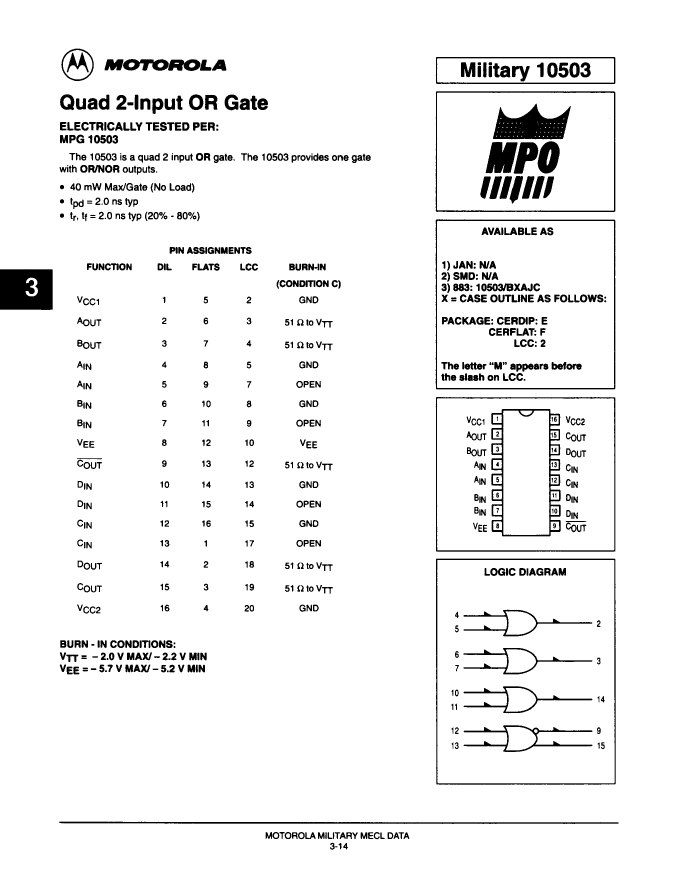

Gate, ECL10K, CDIP16

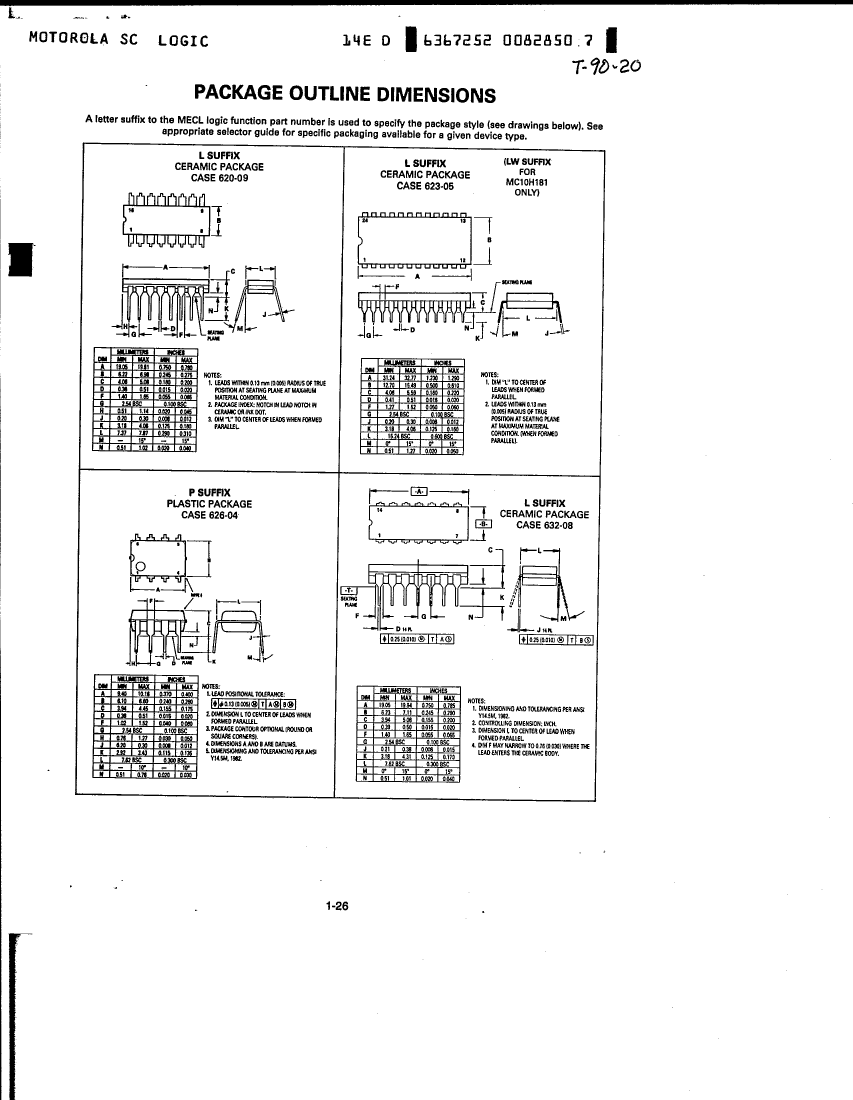

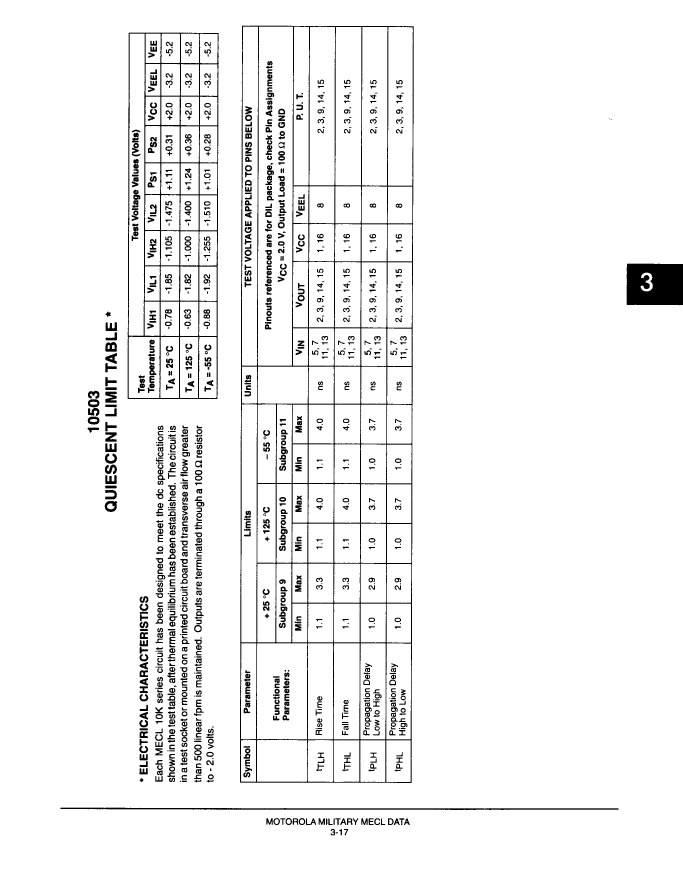

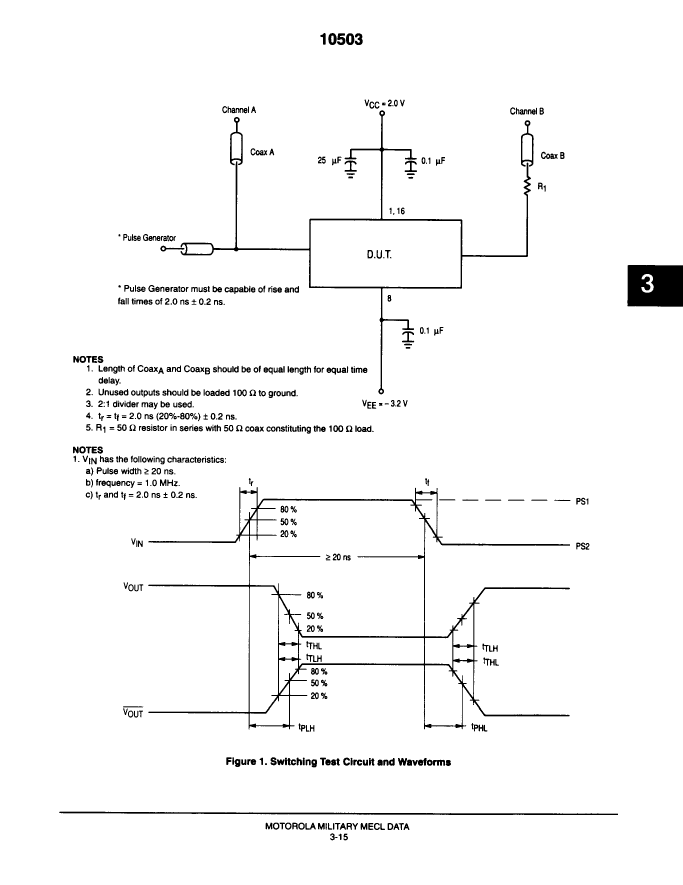

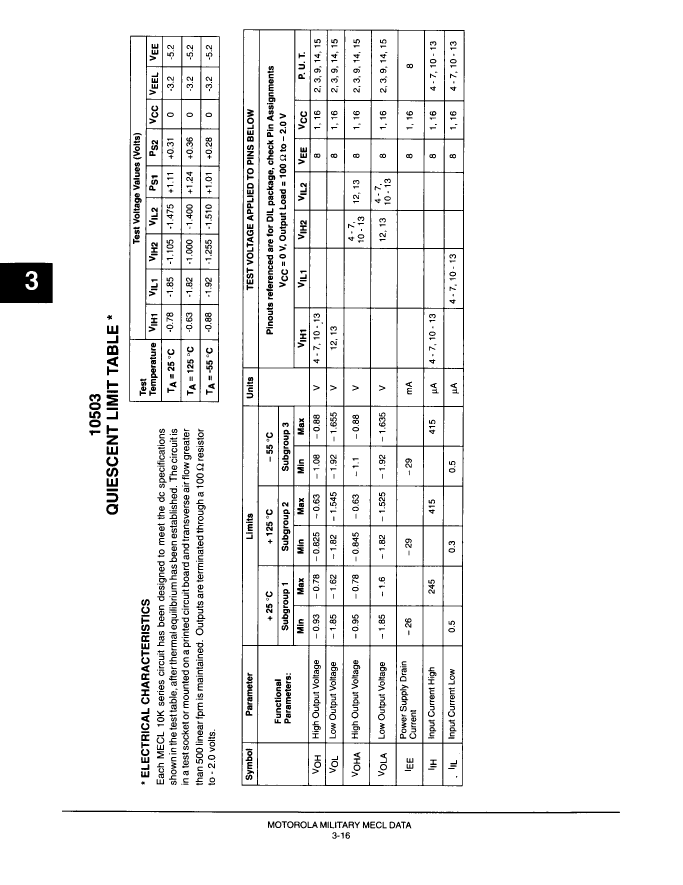

| Parameter Name | Attribute value |
| Is it Rohs certified? | No |
| Objectid | 113180851 |
| package instruction | DIP, DIP16,.3 |
| Reach Compliance Code | Unknown |
| Country Of Origin | USA |
| Is Samacsys | N |
| YTEOL | 5 |
| series | 10K |
| Number of functions | 4 |
| Number of entries | 2 |
| propagation delay (tpd) | 3.7 ns |
| Nominal supply voltage (Vsup) | -5.2 V |
| encapsulated code | DIP |
| Prop。Delay @ Nom-Sup | 4 ns |
| Schmitt trigger | NO |
| surface mount | NO |
| JESD-30 code | R-XDIP-T16 |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| width | 7.62 mm |
| length | 19.495 mm |
| Temperature level | MILITARY |
| Logic integrated circuit type | OR GATE |
| Maximum supply current (ICC) | 29 mA |
| Maximum supply voltage (Vsup) | -5.7 V |
| Minimum supply voltage (Vsup) | -5 V |
| technology | ECL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Number of terminals | 16 |
| Package body material | CERAMIC |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Filter level | 38535Q/M;38534H;883B |
