FCE20SGGY: DescriptionCard Edge Connector, 20 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking, Gray Insulator; CategoryThe connector The connector; File Size246KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

FCE20SGGY Overview

Card Edge Connector, 20 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking, Gray Insulator

FCE20SGGY Parametric

Parameter Name	Attribute value
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Insulator color	GRAY
Installation option 1	LOCKING
Number of connectors	ONE
Contactor design	PREASSEM CONN
Plug contact pitch	0.1 inch
Mixed contacts	NO
Plating thickness	FLASH inch
Termination type	IDC
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
Is Samacsys	N
YTEOL	0
Objectid	302033373
Reach Compliance Code	Compliant
ECCN code	EAR99
body width	0.394 inch
subject depth	0.677 inch
body length	1.372 inch
Connector type	CARD EDGE CONNECTOR
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Number of rows loaded	2
Total number of contacts	20
Contact to complete cooperation	AU ON NI
Contact resistance	30 mΩ
Durability	500 Cycles
Installation type	CABLE
Rated current (signal)	1 A

Preview

Download Datasheet

View All

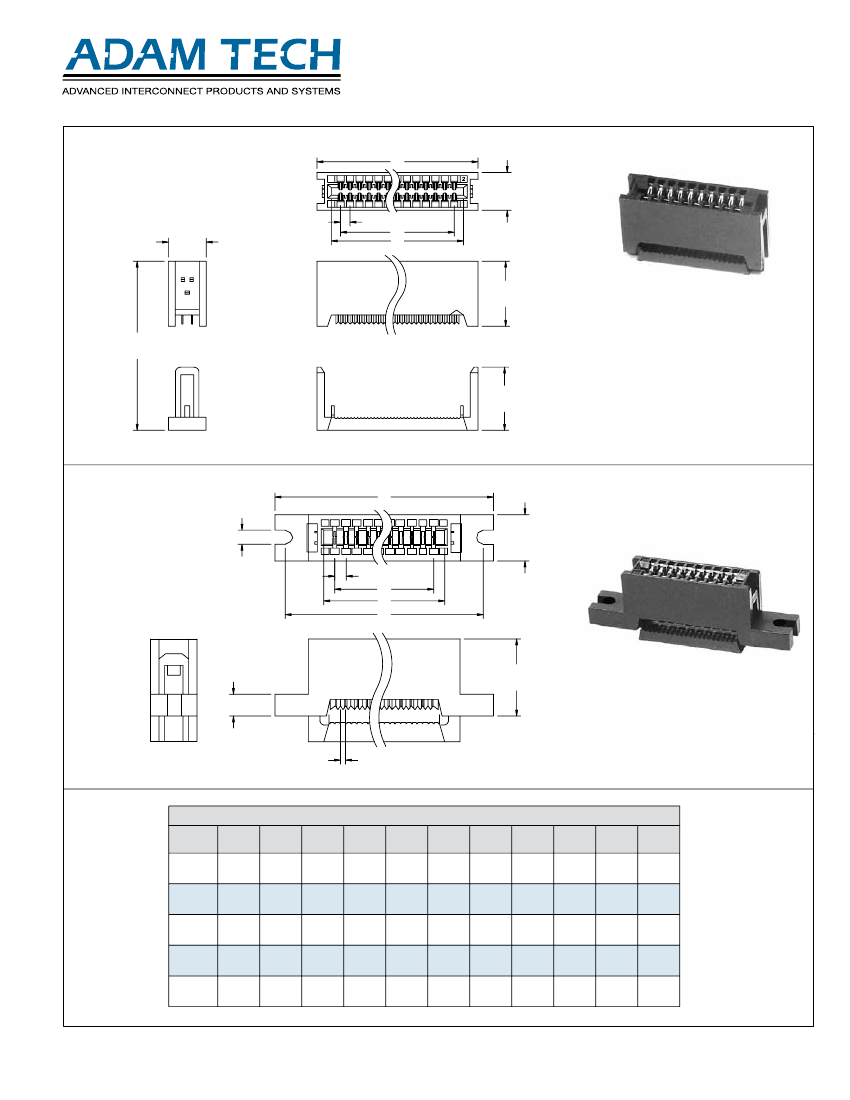

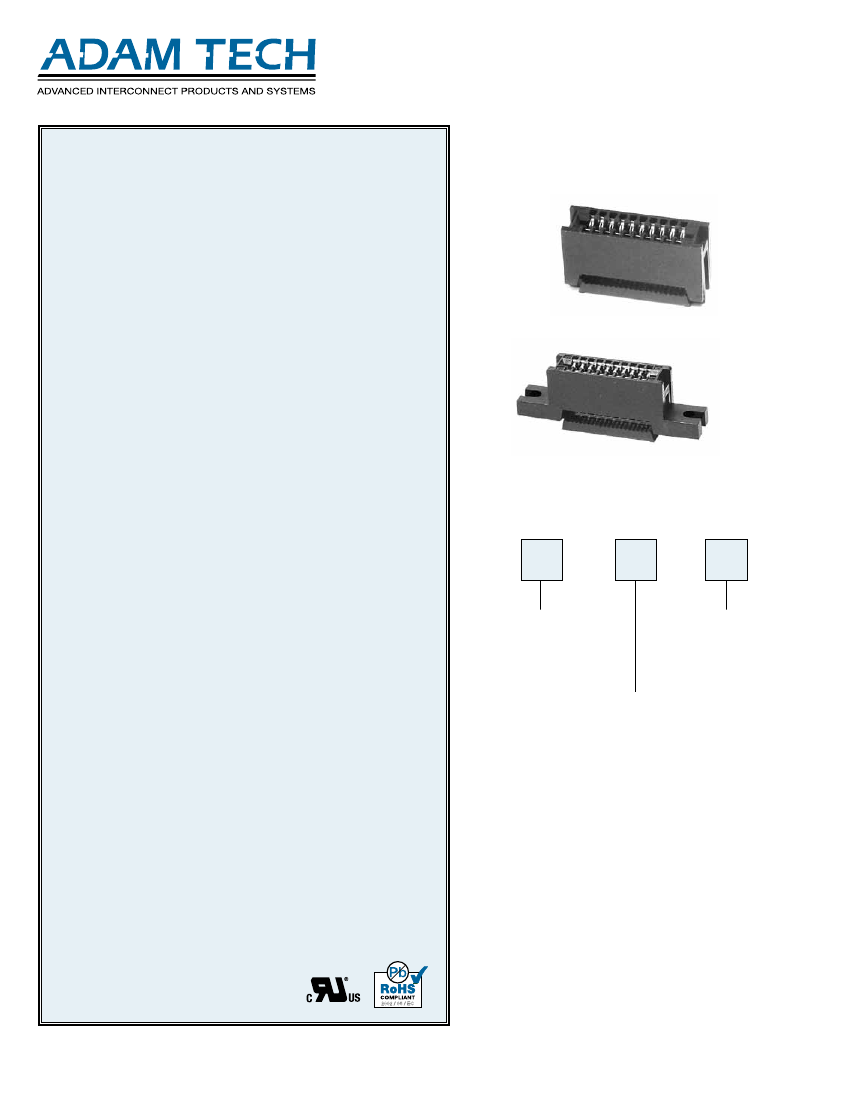

.100" IDc cARD EDGE

.100" [2.54] CENTERLINE

FCE SERIES

INTRODucTION:

Adam Tech FCE Series IDC Card Edge Connectors are designed to

quickly and easily mass terminate .050" flat cable and mate directly

with the plated fingers of a PCB as a card edge connector. Our

superior designed crimp cap features guides to reduce occurrence

of mis-mating and our specially engineered contacts provide strong

wiping action and high retention to the PCB.

FEATuRES:

Available with or without mounting ears

Special “easy fit” cap reduces mis-mating

High Retention to PCB

Selectively Gold plated Bifurcated contacts

MATING OPTIONS:

Printed circuit boards with a thickness of .058" to .070"

SPEcIFIcATIONS:

Material:

Insulator: PBT, glass reinforced, rated UL94V-0

Insulator Color: Black, (Gray optional)

Contacts: Phosphor Bronze

contact Plating:

Gold flash (30

µin

optional) over nickel underplate on contact area,

tin over copper underplate on IDC area

Electrical:

Operating voltage: 250V AC max.

Current rating: 1 Amp max.

Contact resistance: 30 mΩ max. initial

Insulation resistance: 1000 MΩ min.

Dielectric withstanding voltage: 500V AC for 1 minute

Mechanical:

PCB Insertion force: 0.406 lbs per contact max.

With .062 thick board

Withdrawal force: 0.312 lbs per contact min.

With .062 thick board

Recommended wire size: 28 Awg stranded

Cable retention: 28 lbs. min axial force per inch.

Mating durability: 500 cycles min.

Temperature Rating:

Operating temperature: -40°C to +105°C

PAckAGING:

Anti-ESD plastic trays

SAFETy AGENcy APPROvAlS:

UL Recognized & CSA Certified, File no. E224053

STRAIN RElIEF:

FcR

- XX (XX= No. of Positions)

kEyING PluGS:

FcE-k

(key plugs can also be molded into connector,

consult factory)

OPTIONS:

Add designator(s) to end of part number

= 30

µin

gold plating in contact area

= Gray color insulator

= Mounting ears with slotted mounting holes

ORDERING INFORMATION

FcE

PlATING

= Selective

gold plating

SERIES INDIcATOR

FcE

= Card Edge, IDC

POSITIONS

10, 14, 16, 20,

26, 34,40, 50, 60, 62, 64

350

www.adam-tech.com
