N74LS244N datasheet, PDF - EEWORLD Datasheet

N74LS244N: DescriptionBus Driver, LS Series, 2-Func, 4-Bit, True Output, TTL, PDIP20,; Categorylogic logic; File Size105KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

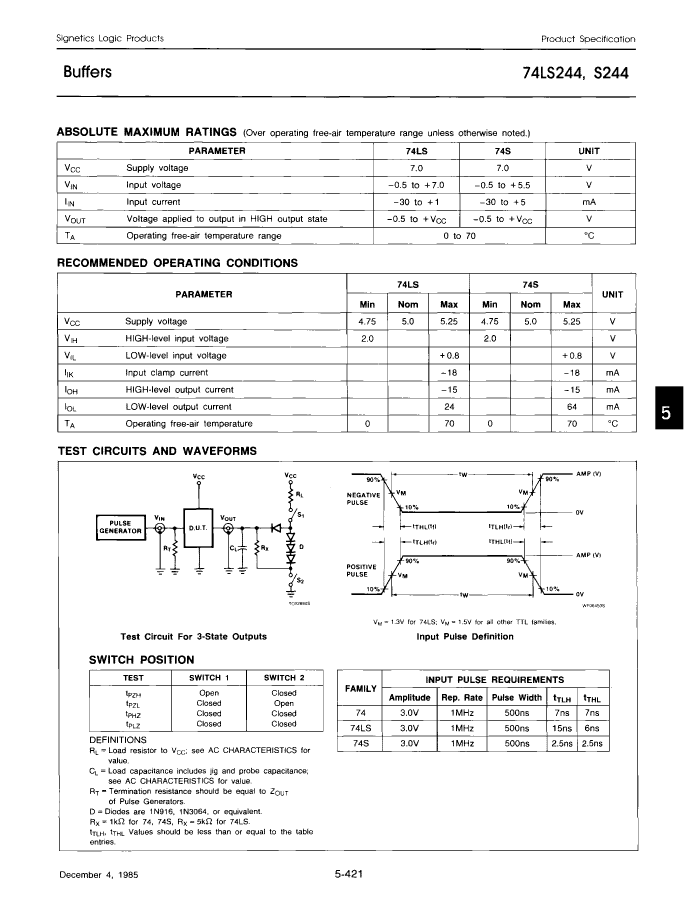

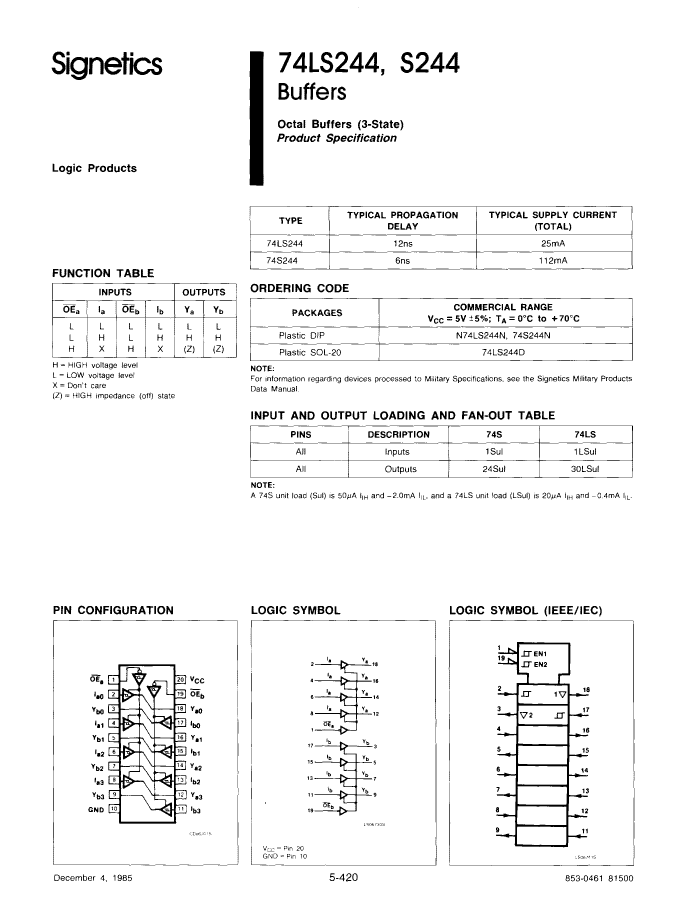

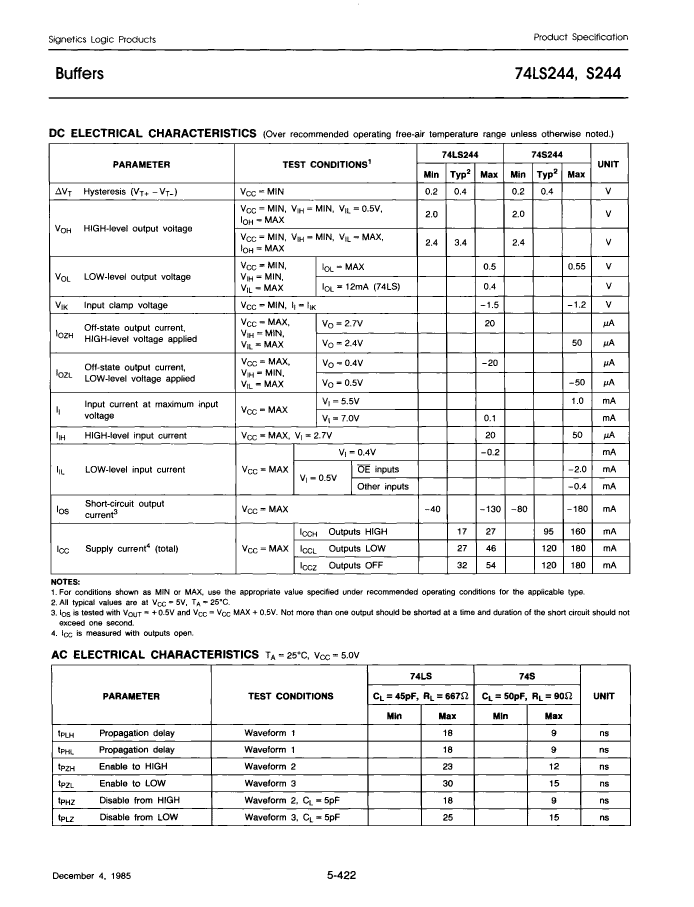

N74LS244N Overview

Bus Driver, LS Series, 2-Func, 4-Bit, True Output, TTL, PDIP20,

Parameter Name	Attribute value
Maker	YAGEO
Reach Compliance Code	unknown
Other features	MIN INPUT HYSTERESIS = 0.2V
series	LS
JESD-30 code	R-PDIP-T20
Load capacitance (CL)	45 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	46 mA
propagation delay (tpd)	18 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	N74LS244N	N74LS244D	N74S244N
Description	Bus Driver, LS Series, 2-Func, 4-Bit, True Output, TTL, PDIP20,	Bus Driver, LS Series, 2-Func, 4-Bit, True Output, TTL, PDSO20	Bus Driver, S Series, 2-Func, 4-Bit, True Output, TTL, PDIP20
Maker	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown
Other features	MIN INPUT HYSTERESIS = 0.2V	MIN INPUT HYSTERESIS = 0.2V	MIN INPUT HYSTERESIS = 0.2V
series	LS	LS	S
JESD-30 code	R-PDIP-T20	R-PDSO-G20	R-PDIP-T20
Load capacitance (CL)	45 pF	45 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4
Number of functions	2	2	2
Number of ports	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE
Maximum supply current (ICC)	46 mA	46 mA	180 mA
propagation delay (tpd)	18 ns	18 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	-
